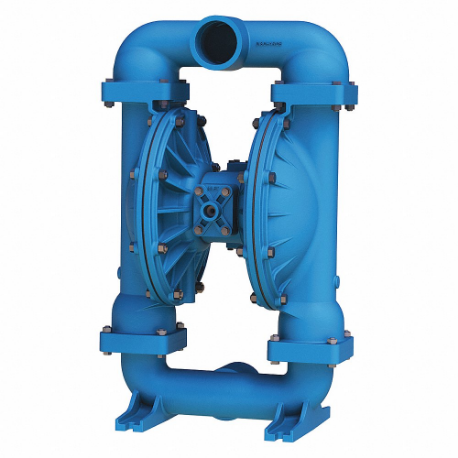

SANDPIPER S30B1A2TANS600. Standard Duty Pump, Metallic, Top Discharge, 0.94 Gpm, 19.65 X 32.08 X 16.72 Inch Size
Get it by Thursday, Dec 18
10.00% off
€11,225.16 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Standard Duty Pump |
| Air Consumption | 140 SCFM |
| Air Consumption (maximum) | 140 SCFM |
| Air Inlet | 3/4" FNPT |
| Air Intake Connection Size | 3/4" |
| Air Intake Pressure (maximum) | 125 psi |
| Center Section Material | Aluminum |
| Check Seat Material | PTFE |
| Chemical Compatibility | Alcohol, Ammonium Hydroxide, Antifreeze, Diesel, Diesel Exhaust Fluid, Gasoline, Kerosene, Oils, Water |
| Compatible Chemicals | Alcohol, Ammonium Hydroxide, Antifreeze, Diesel, Diesel Exhaust Fluid, Gasoline, Kerosene, Oils, Water |
| Connection Size | 3" |
| Diaphragm Material | PTFE |
| Display Qty | 1 |
| Feet Of Head (maximum) | 231 ft. |
| Flow Rate (maximum) | 285 GPM |
| Flow Rate @ 10 Psi | Not Applicable |
| Flow Rate @ 100 Psi | 280 GPM |
| Flow Rate @ 120 Psi | Not Applicable |
| Flow Rate @ 15 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 165.7 GPM |
| Flow Rate @ 30 Psi | Not Applicable |
| Flow Rate @ 40 Psi | 243.1 GPM |
| Flow Rate @ 50 Psi | Not Applicable |
| Flow Rate @ 60 Psi | 266 GPM |
| Flow Rate @ 70 Psi | Not Applicable |
| Flow Rate @ 80 Psi | 270.1 GPM |
| Flow Rate @ 90 Psi | Not Applicable |
| Fluid Connection Inlet Type | FNPT |
| Fluid Intake Connection | 3" Fnpt |
| Fluid Outlet Connection | 3" Npt |
| For Use With Potable Systems | No |
| Housing Material | Aluminum |
| Inlet Size | 3/4" |
| Inlet Type | FNPT |
| Inlet/outlet Size | 3" |
| Manifold Connection | Single Port |
| Manifold Connection Type | NPT |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Dia. Solids | 3/8" |
| Max. Discharge Pressure | 125 psi |
| Max. Flow Rate | 285 GPM |
| Max. Head | 231 ft. |
| Max. Media Temp. | 220°F |
| Max. Outlet Pressure | 125 psi |
| Max. Solid Dia. | 0.38" |
| Media Discharge Connection Size | 3" |
| Media Discharge Location | Center, Top |
| Media Intake Connection Size | 3" |
| Media Intake Location | Bottom, Center |
| Min. Media Temp. | -35°F |
| Non-wetted Housing Material | Aluminum |
| Npshr | 5 ft. |
| Operating Pressure (maximum) | 125 psi |
| Outlet Type | NPT |
| Overall Height | 35.7" |
| Overall Length | 16.7" |
| Overall Width | 19 3/5" |
| Power Source | Air |
| Priming | Self Priming |
| Product Datasheet | sandpiper-s30b1s2tans600-.pdf |
| Pump Assembly Type | Bolt |
| Pump Operation Type | Air |
| Rated Air Pressure | 125 psi |
| Self Priming | Yes |
| Series Family | S30 |
| Solid Diameter (maximum) | 0.38" |
| Valve Material | PTFE |
| Valve Type | Ball |
| Wetted Housing Material | Aluminum |
Shipping Info:
| Ship weight (kg) | 52.2 |
| Ship height (cm) | 81.48 |
| Ship length (cm) | 49.91 |
| Ship width (cm) | 42.47 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Housing Material | Max. Flow Rate | Diaphragm Material | Valve Material | Max. Solid Dia. | Check Seat Material | Max. Media Temp. | Max. Outlet Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| S30B1SBBANS600. | Stainless Steel | 285 GPM | Buna N | Buna N | 0.38" | Buna N | 190°F | - | €28,601.30 | |
| S30B1S2TANS600. | Stainless Steel | 285 GPM | PTFE | PTFE | 0.38" | - | - | - | €31,503.10 | |
| S30B1S1EANS600. | Stainless Steel | 285 GPM | Santoprene | Santoprene | 0.38" | EPDM | 275°F | - | €28,601.30 | |
| S30B1ABBANS600. | Aluminum | 285 GPM | Buna N | Buna N | 0.38" | Buna N | 190°F | 125 psi | €9,432.82 | |
| S30B1A1EANS600. | Aluminum | 285 GPM | Santoprene | Santoprene | 0.38" | EPDM | 275°F | 125 psi | €9,365.14 | |
| S30B1I2TANS600. | Cast Iron | 285 GPM | PTFE | PTFE | 0.38" | PTFE | 220°F | 125 psi | €14,850.50 | |
| S30B1I1EANS600. | Cast Iron | 285 GPM | Santoprene | Santoprene | 0.38" | EPDM | 275°F | 125 psi | €12,392.96 |
