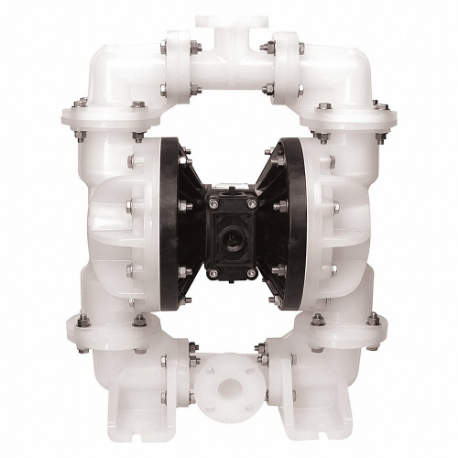

SANDPIPER S20B3P2PPUS000. Ball Valve Pump, Top Discharge, 160 Gpm, 23.81 X 32.25 X 13.0 Inch Size
Get it by Thursday, Dec 18
10.00% off
€10,998.29 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve Pump |
| Air Consumption (maximum) | 80 SCFM |
| Air Inlet Size | 3/4" |
| Air Inlet Type | NPT |
| Air Intake Connection Size | 3/4" |
| Air Intake Pressure (maximum) | 100 psi |
| Body Material | Polypropylene |
| Center Section Material | Polypropylene |
| Check Seat Material | Polypropylene |
| Chemical Compatibility | Ammonium Hydroxide, Calcium Carbonate, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Phosphoric Acid 40%, Phosphoric Acid 50%, Potassium Hydroxide 50%, Sodium Hydroxide 10%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hydroxide 80%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Sulfuric Acid 80%, Water |
| Connection Size | 2" |
| Connection Style | Flange |
| Connection Type | Flanged |
| Diaphragm Material | PTFE |
| Display Qty | 1 |
| Feet Of Head (maximum) | 231 ft. |
| Flow Rate (maximum) | 200 GPM |
| Flow Rate @ 10 Psi | Not Applicable |
| Flow Rate @ 100 Psi | 190.1 GPM |
| Flow Rate @ 120 Psi | Not Applicable |
| Flow Rate @ 15 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 100.1 GPM |
| Flow Rate @ 30 Psi | Not Applicable |
| Flow Rate @ 40 Psi | 139.8 GPM |
| Flow Rate @ 50 Psi | Not Applicable |
| Flow Rate @ 60 Psi | 157.8 GPM |
| Flow Rate @ 70 Psi | Not Applicable |
| Flow Rate @ 80 Psi | 177.8 GPM |
| Flow Rate @ 90 Psi | Not Applicable |
| Fluid Intake Connection | 2" Flange |
| Fluid Outlet Connection | 2" Flange |
| For Use With Potable Systems | No |
| Housing Material | Polypropylene |
| Inlet Size | 3/4" |
| Inlet Type | NPT |
| Inlet/outlet Size | 2" |
| Manifold Connection | Single Port |
| Manifold Connection Type | Flange |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Dia. Solids | 1/4" |
| Max. Discharge Pressure | 125 psi |
| Max. Flow Rate | 200 GPM |
| Max. Head | 231 ft. |
| Max. Media Temp. | 220°F |
| Max. Outlet Pressure | 125 psi |
| Max. Solid Dia. | 1/4" |
| Media Discharge Connection Size | 2" |
| Media Discharge Connection Type | Flange |
| Media Discharge Location | Center, Top |
| Media Intake Connection Size | 2" |
| Media Intake Connection Type | Flange |
| Media Intake Location | Bottom, Center |
| Min. Media Temp. | -35°F |
| Non-wetted Housing Material | Polypropylene |
| Npshr | 5 ft. |
| Operating Pressure (maximum) | 125 psi |
| Operation Type | Air Operated |
| Overall Height | 29.9" |
| Overall Length | 14 1/2" |
| Overall Width | 17" |
| Power Source | Air |
| Priming | Self Priming |
| Product Datasheet | sandpiper-s20b3p2ppus000-.pdf |
| Pump Operation Type | Air |
| Rated Air Pressure | 100 psi |
| Self Priming | Yes |
| Self-priming Dry | 9 ft. |
| Self-priming Wet | 15 ft. |
| Series Family | S20 |
| Solid Diameter (maximum) | 1/4" |
| Valve Material | PTFE |
| Valve Type | Ball |
| Wetted Housing Material | Polypropylene |
Shipping Info:
| Ship weight (kg) | 42.75 |
| Ship height (cm) | 81.92 |
| Ship length (cm) | 60.48 |
| Ship width (cm) | 33.02 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Max. Flow Rate | Diaphragm Material | Valve Material | Max. Media Temp. | Min. Media Temp. | Inlet Type | Inlet Size | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
S20B3P1PPUS000. | 160 GPM | Santoprene | Santoprene | 275°F | -40°F | NPT | 3/4" | Polypropylene | €10,622.74 | |
 |
S20B1S2SYNS600. | - | - | - | - | - | - | - | - | €10,454.24 |
