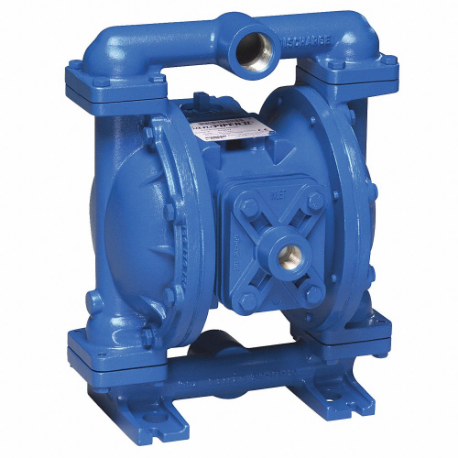

SANDPIPER S1FB1A2TANS000. Ball Valve Pump, Metallic, Top Discharge, 45 Gpm, 28 Lbs., 10.38 X 12.72 X 10.25 Inch Size
Get it by Monday, Aug 24
5.00% off
€3,100.87 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve Pump |
| Air Consumption | 40 SCFM |
| Air Inlet Size | 1" |
| Air Inlet Type | NPT |
| Air Intake Connection Size | 1" |
| Air Pressure | 125 psi |
| Body Material | Aluminum |
| Center Section Material | Aluminum |
| Check Seat Material | PTFE |
| Chemical Compatibility | Alcohol, Ammonium Hydroxide, Antifreeze, Diesel, Diesel Exhaust Fluid, Gasoline, Kerosene, Oils, Water |
| Compatible Chemicals | Alcohol, Ammonium Hydroxide, Antifreeze, Diesel, Diesel Exhaust Fluid, Gasoline, Kerosene, Oils, Water |
| Connection Size | 1" |
| Connection Type | NPT |
| Diaphragm Material | PTFE |
| Displacement Per Stroke | 0.11 gal. |
| Display Qty | 1 |
| Flow Rate @ 10 Psi | Not Applicable |
| Flow Rate @ 100 Psi | 43.1 GPM |
| Flow Rate @ 120 Psi | Not Applicable |
| Flow Rate @ 15 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 26.4 GPM |
| Flow Rate @ 30 Psi | Not Applicable |
| Flow Rate @ 40 Psi | 35.8 GPM |
| Flow Rate @ 50 Psi | Not Applicable |
| Flow Rate @ 60 Psi | 41 GPM |
| Flow Rate @ 70 Psi | Not Applicable |
| Flow Rate @ 80 Psi | 42.8 GPM |
| Flow Rate @ 90 Psi | Not Applicable |
| Fluid Discharge Connection Size | 1" |
| Fluid Discharge Connection Type | NPT |
| Fluid Intake Connection | 1" |
| Fluid Intake Connection Type | NPT |
| For Use With Potable Systems | No |
| Height | 13" |
| Housing Material | Aluminum |
| Inlet Size | 1" |
| Inlet Type | NPT |
| Inlet/outlet Size | 1" |
| Length | 10" |
| Manifold Connection | Single Port |
| Manifold Connection Type | NPT |
| Max. Air Consumption | 40 SCFM |
| Max. Air Intake Pressure | 125 psi |
| Max. Dia. Solids | 1/4" |
| Max. Discharge Pressure | 125 psi |
| Max. Feet Of Head | 289 ft. |
| Max. Flow Rate | 45 GPM |
| Max. Head | 289 ft. |
| Max. Media Temp. | 220°F |
| Max. Operating Pressure | 125 psi |
| Max. Outlet Pressure | 125 psi |
| Max. Solid Dia. | 1/4" |
| Media Discharge Connection Size | 1" |
| Media Discharge Location | Center, Top |
| Media Intake Connection Size | 1" |
| Media Intake Location | Bottom, Center |
| Min. Media Temp. | -40°F |
| Non Wetted Material | Aluminum |
| Non-wetted Housing Material | Aluminum |
| Operation Type | Air Operated |
| Outlet Size | 1" |
| Outlet Type | NPT |
| Overall Height | 12.9" |
| Overall Length | 10.3" |
| Overall Width | 10.3" |
| Power Source | Air |
| Priming | Self Priming |
| Product Datasheet | sandpiper-s1fb1s1wans000-.pdf |
| Pump Assembly Type | Bolt |
| Pump Operation Type | Air |
| Self Priming | Yes |
| Self Priming Dry | 17 ft. |
| Self Priming Wet | 17 ft. |
| Series Family | Sf1 |
| Solids Handling | 1/4" |
| Valve Material | PTFE |
| Valve Type | Ball |
| Wetted Housing Material | Aluminum |
| Wetted Material | Aluminum |
| Width | 10" |
Shipping Info:
| Ship weight (kg) | 12.6 |
| Ship height (cm) | 32.31 |
| Ship length (cm) | 26.37 |
| Ship width (cm) | 26.04 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Max. Flow Rate | Diaphragm Material | Wetted Material | Non Wetted Material | Outlet Size | Max. Media Temp. | Overall Width | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S1FB1I1WANS000. | 45 GPM | Santoprene | Cast Iron | Aluminum | - | 180°F | 10.3" | Cast Iron | €3,405.34 | |
|
S1FB1I2TANS000. | 45 GPM | PTFE | Cast Iron | Aluminum | 1" | 220°F | 10.3" | Cast Iron | €4,348.35 | |
 |
S15B1I1WANS000. | 106 GPM | Santoprene | Cast Iron | Aluminum | - | 180°F | 11 1/5" | Cast Iron | €4,985.77 | |
|
S15B1I2TANS000. | 106 GPM | PTFE | Cast Iron | Aluminum | 1 1/2" | 220°F | 11 1/5" | Cast Iron | €6,078.18 | |
 |
S1FB1A1WANS000. | 45 GPM | Santoprene | Aluminum | Aluminum | - | 180°F | 10.3" | Aluminum | €2,619.45 | |
|
S1FB1ABWANS000. | 45 GPM | Buna N | Aluminum | Aluminum | - | 180°F | 10.3" | - | €2,514.73 | |
 |
S1FB1S1WANS000. | 45 GPM | Santoprene | Stainless Steel | Aluminum | - | 180°F | 10.3" | Stainless Steel | €5,562.89 |
