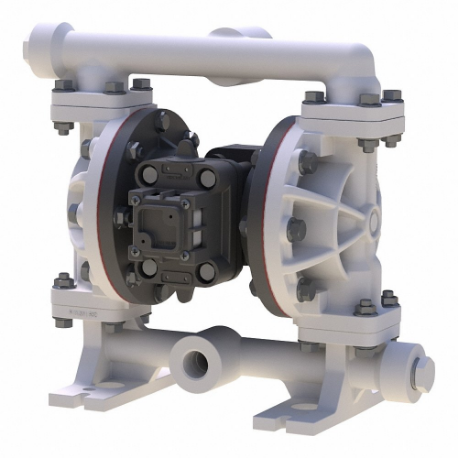

SANDPIPER S05B2P2TPNI000. Ball Valve Pump, Non-Metallic, Top Discharge, 16 Lbs., 11.76 X 10.62 X 7.13 Inch Size
Get it by Wednesday, Feb 18
€1,306.17 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve Pump |
| Air Consumption | 16 SCFM |
| Air Consumption (maximum) | 16 SCFM |
| Air Inlet | 1/4" FNPT |
| Air Intake Connection Size | 1/4" |
| Air Intake Pressure (maximum) | 100 psi |
| Body Material | Polypropylene |
| Center Section Material | Polypropylene |
| Check Seat Material | PTFE |
| Chemical Compatibility | Ammonium Hydroxide, Calcium Carbonate, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Phosphoric Acid 40%, Phosphoric Acid 50%, Potassium Hydroxide 50%, Sodium Hydroxide 10%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hydroxide 80%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Sulfuric Acid 80%, Water |
| Connection Size | 1/2" |
| Diaphragm Material | PTFE |
| Display Qty | 1 |
| Feet Of Head (maximum) | 231 ft. |
| Flow Rate (maximum) | 14 GPM |
| Flow Rate @ 10 Psi | Not Applicable |
| Flow Rate @ 100 Psi | 15.6 GPM |
| Flow Rate @ 120 Psi | Not Applicable |
| Flow Rate @ 15 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 8.1 GPM |
| Flow Rate @ 30 Psi | Not Applicable |
| Flow Rate @ 40 Psi | 12.3 GPM |
| Flow Rate @ 50 Psi | Not Applicable |
| Flow Rate @ 60 Psi | 13.5 GPM |
| Flow Rate @ 70 Psi | Not Applicable |
| Flow Rate @ 80 Psi | 14.4 GPM |
| Flow Rate @ 90 Psi | Not Applicable |
| Fluid Connection Inlet Type | FNPT |
| Fluid Discharge Connection Size | 1/2" |
| Fluid Discharge Connection Type | NPT |
| Fluid Intake Connection | 1/2" Fnpt |
| For Use With Potable Systems | No |
| Housing Material | Polypropylene |
| Inlet Size | 1/4" |
| Inlet Type | FNPT |
| Inlet/outlet Size | 1/2" |
| Manifold Connection | Single Port |
| Manifold Connection Type | NPT |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Dia. Solids | 1/8" |
| Max. Discharge Pressure | 100 psi |
| Max. Flow Rate | 14 GPM |
| Max. Head | 231 ft. |
| Max. Media Temp. | 220°F |
| Max. Outlet Pressure | 100 psi |
| Max. Solid Dia. | 3/25" |
| Media Discharge Connection Size | 1/2" |
| Media Discharge Location | Center, Top |
| Media Intake Connection Size | 1/2" |
| Media Intake Location | Bottom, Center |
| Min. Media Temp. | 32°F |
| Non-wetted Housing Material | Polypropylene |
| Npshr | 5 ft. |
| Operating Pressure (maximum) | 100 psi |
| Operation Type | Air Operated |
| Outlet Type | NPT |
| Overall Height | 10 3/5" |
| Overall Length | 7.1" |
| Overall Width | 10.1" |
| Power Source | Air |
| Priming | Self Priming |
| Product Datasheet | sandpiper-hdb2-ds4ci-.pdf |
| Pump Assembly Type | Bolt |
| Pump Operation Type | Air |
| Rated Air Pressure | 100 psi |
| Self Priming | Yes |
| Self-priming Dry | 13 ft. |
| Self-priming Wet | 15 ft. |
| Series Family | S05 |
| Solid Diameter (maximum) | 3/25" |
| Valve Material | PTFE |
| Valve Type | Ball |
| Wetted Housing Material | Polypropylene |
Shipping Info:
| Ship weight (kg) | 7.2 |
| Ship height (cm) | 26.97 |
| Ship length (cm) | 29.87 |
| Ship width (cm) | 18.11 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Housing Material | Max. Flow Rate | Max. Outlet Pressure | Diaphragm Material | Valve Material | Check Seat Material | Max. Solid Dia. | Max. Media Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SB1 SGN5SS. | Stainless Steel | 42 GPM | 125 psi | PTFE | PTFE | Stainless Steel | 1/4" | 220°F | €6,438.16 | |
 |
S05B1SBWANS000. | Stainless Steel | 15 GPM | 100 psi | Buna N | Buna N | Polyethylene | 0.13" | 190°F | €5,052.26 | |
 |
HDB1 1/2 SGN8A. | Aluminum | 122 GPM | 125 psi | Neoprene | PTFE | Stainless Steel | 1/4" | 220°F | €6,610.24 | |
|
HDB1 1/2 SS8A. | Aluminum | 122 GPM | 125 psi | Santoprene | Santoprene | Stainless Steel | 1/4" | 275°F | €5,468.12 | |
 |
S05B1A1WANS000. | Aluminum | 15 GPM | 100 psi | Santoprene | Santoprene | Polyethylene | 0.13" | 180°F | €2,181.66 | |
|
S05B2P1TPNI000. | Polypropylene | 14 GPM | 100 psi | Santoprene | Santoprene | PTFE | 3/25" | 275°F | €1,060.65 | |
 |
HD20F1PBSPNS000. | Polypropylene | 150 GPM | 100 psi | Buna N | Buna N | Stainless Steel | 1 4/5" | 180°F | €8,950.08 |
