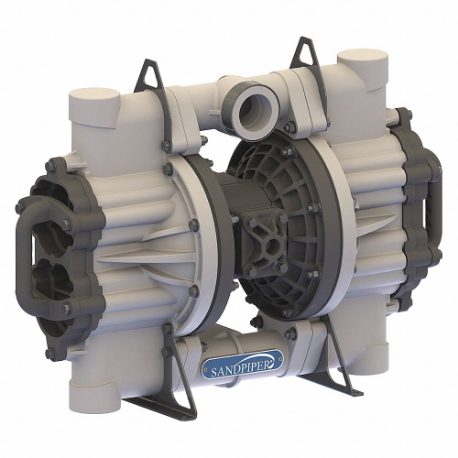

SANDPIPER HD20F1PJSPNS000. Flap Valve Pump, Non-Metallic, Bottom Discharge, 29.7 X 20.89 X 12.65 Inch Size
Get it by Thursday, Dec 18
10.00% off
€7,116.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flap Valve Pump |
| Air Consumption | 60 SCFM |
| Air Consumption (maximum) | 60 SCFM |
| Air Inlet Size | 3/4" |
| Air Inlet Type | NPT |
| Air Intake Connection Size | 3/4" |
| Air Intake Pressure (maximum) | 100 psi |
| Center Section Material | Polypropylene |
| Check Seat Material | Stainless Steel |
| Chemical Compatibility | Calcium Carbonate, Water |
| Compatible Chemicals | Calcium Carbonate, Water |
| Connection Size | 2" |
| Connection Type | NPT |
| Diaphragm Material | Santoprene |
| Display Qty | 1 |
| Feet Of Head (maximum) | 231 ft. |
| Flow Rate (maximum) | 150 GPM |
| Flow Rate @ 10 Psi | Not Applicable |
| Flow Rate @ 100 Psi | 150.4 GPM |
| Flow Rate @ 120 Psi | Not Applicable |
| Flow Rate @ 15 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 74.4 GPM |
| Flow Rate @ 30 Psi | Not Applicable |
| Flow Rate @ 40 Psi | 75.1 GPM |
| Flow Rate @ 50 Psi | Not Applicable |
| Flow Rate @ 60 Psi | 126.3 GPM |
| Flow Rate @ 70 Psi | Not Applicable |
| Flow Rate @ 80 Psi | 139 GPM |
| Flow Rate @ 90 Psi | Not Applicable |
| Fluid Intake Connection | 2" Npt |
| Fluid Outlet Connection | 2" Npt |
| For Use With Potable Systems | No |
| Grade | Grade 316 |
| Housing Material | Polypropylene |
| Inlet Size | 3/4" |
| Inlet Type | NPT |
| Inlet/outlet Size | 2" |
| Manifold Connection | Single Port |
| Manifold Connection Type | NPT |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Dia. Solids | 1 51/64" |
| Max. Discharge Pressure | 100 psi |
| Max. Flow Rate | 150 GPM |
| Max. Head | 231 ft. |
| Max. Media Temp. | 275°F |
| Max. Outlet Pressure | 100 psi |
| Max. Solid Dia. | 1 4/5" |
| Media Discharge Connection Size | 2" |
| Media Discharge Location | Bottom, Center |
| Media Intake Connection Size | 2" |
| Media Intake Location | Center, Top |
| Min. Media Temp. | -40°F |
| Non-wetted Housing Material | Polypropylene |
| Npshr | 5 ft. |
| Operating Pressure (maximum) | 100 psi |
| Overall Height | 20.9" |
| Overall Length | 12.7" |
| Overall Width | 29.7" |
| Power Source | Air |
| Priming | Self Priming |
| Pump Assembly Type | Bolt |
| Pump Operation Type | Air |
| Rated Air Pressure | 100 psi |
| Self Priming | Yes |
| Series Family | Hd20 |
| Solid Diameter (maximum) | 1 4/5" |
| Valve Material | EPDM |
| Valve Type | Flap |
| Wetted Housing Material | Polypropylene |
Shipping Info:
| Ship weight (kg) | 23.85 |
| Ship height (cm) | 53.06 |
| Ship length (cm) | 75.44 |
| Ship width (cm) | 32.13 |
| Country of Origin | US |
