SAFEWAY S45-3 Quick Coupler Body 3/8 Inch Npt
Item: AB9TUXModel: S45-3Cross Ref: 2F779
7 In Stock
Ships within 2 days via
10.00% off
€79.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Coupler Body |
| Bearing Type | Ball |
| Body Material | Steel |
| Body Size | 3/8" |
| Connection Type | NPT |
| Coupling Component | Socket |
| Coupling Locking Type | Sleeve |
| Coupling Size | 3/8" |
| Finish | Trivalent Chromium Zinc Plated |
| Finish/coating | Trivalent Chromium Zinc |
| Fitting Type | FNPT |
| Flow Rate | 6 GPM |
| For Use With | All Hydraulic Applications |
| Hose Fitting Gender | Female |
| Includes Bearing | Yes |
| Includes Shut Off | Yes |
| Includes Valve | Yes |
| Locking Mechanism | Dependable Ball |
| Max. Flow Rate | 23 LPM |
| Max. Outside Dia. | 1 5/16" |
| Max. Pressure | 3000 psi |
| Max. Working Pressure @ 70 F | 3000 psi |
| Maximum Vacuum | 27.4 in. hg |
| Operating Temp. Range | -40°F to +250°F |
| Overall Length | 2 5/16" |
| Parker Interchange | 4250-3P |
| Pioneer Interchange | 4050-3 |
| Pipe Size | 3/8" |
| Pipe Size Npt | 3/8 |
| Pull Ring Material | PTFE |
| Seal Material | Nitrile |
| Seal Type | Captive Valve |
| Seals | Captive Valve |
| Series | S40 Series |
| Shut Off | Double |
| Sleeve Material | Steel |
| Standards | Iso 5675 |
| Temp. Range | -40°F to +250°F |
| Thread Size | 3/8"-18 |
| Type | Coupler Body |
| Valve Design | Ball |
| Valve Type | Ball |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 13.21 |
| Ship width (cm) | 9.14 |
| HS code | 7307995045 |
| Country of Origin | US |
Product Variants
| Product | Model | Type | Body Material | Connection Type | Coupling Size | Valve Type | Temp. Range | Valve Design | Max. Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

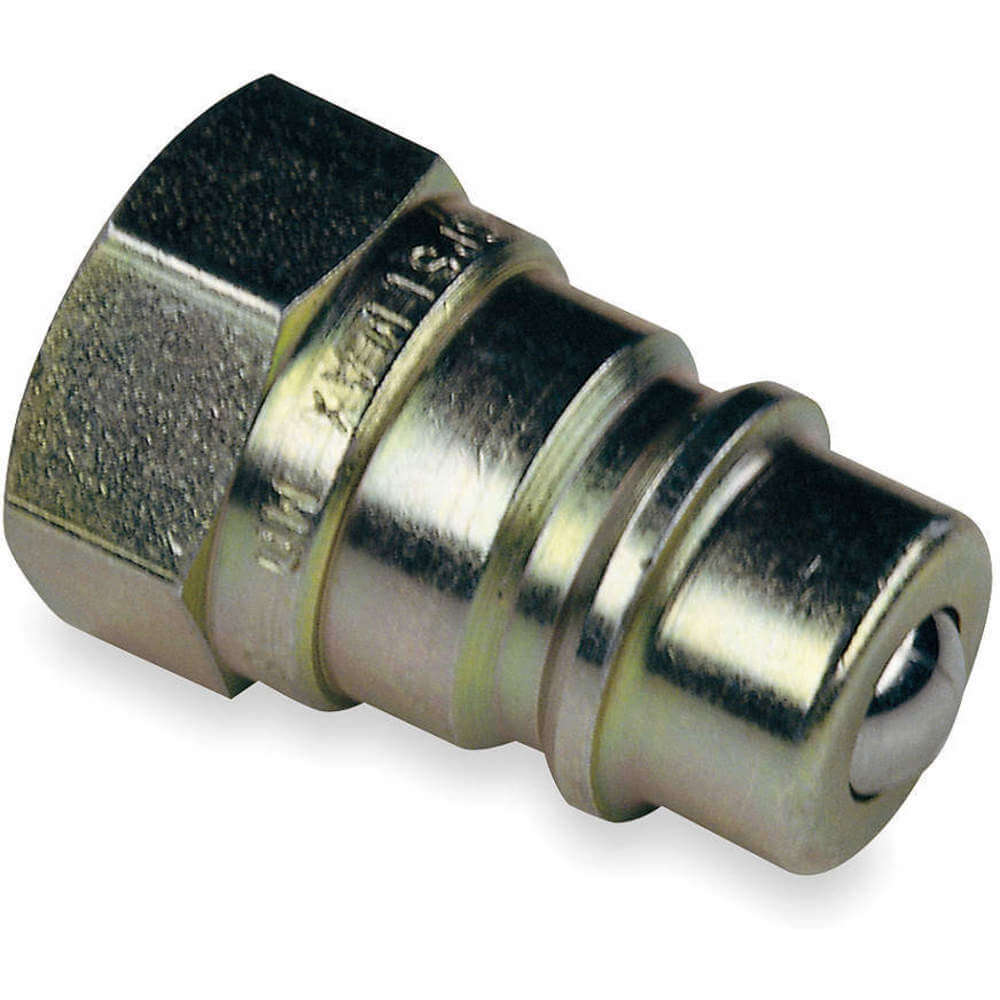

S41-3 | Nipple Tip | Steel | NPT | 3/8" | Ball | -40°F to +250°F | Ball | 3000 psi | €29.49 |
