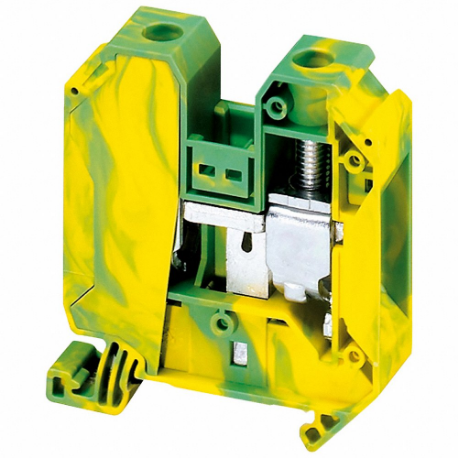

SQUARE D NSYTRV352PE Screw Terminal, Screw Clamp, 150 A Current, Grounding, Green/Yellow
Item: CV3WFFModel: NSYTRV352PECross Ref: 796A20
7 In Stock
Ships within 2 days via
5.00% off
€25.51 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Terminal |
| Ambient Air Temp. For Operation | -40°F to +266°F |
| Amps | 150A |
| Cable Cross Section | 0.002 sq. in. to 0.08 sq. in., 0.004 sq. in. to 0.05 sq. in., 0.002 sq. in. to 0.08 sq. in. |
| Color | Green, Yellow |
| Compatible With | Special Enclosures |
| Compatible With Product Type | Special Enclosures |
| Component Type | Terminal Block |
| Connection Position | Sideways |
| Connection Type | Screw Clamp |
| Connections Terminals | (1) Screw Terminal Upstream, (1) Screw Terminal Downstream |
| Creep Resistance | 500 CTI @ 400 kB |
| Depth | 60.2 mm |
| Dielectric Constant | 3.7 at 1 MHz |
| Dielectric Loss | 0.01 at 1 MHz |
| Dielectric Strength | 1000V @ 0.05 sq. in. |
| Flame Retardance | 0.03" |
| Flammability Rating | V-0 |
| For Maximum Wire Size | 1/0 AWG |
| For Minimum Wire Size | 14 AWG |
| Height | 2 2/5" |
| Housing Color | Green, Yellow |
| Housing Material | Polyamide |
| Length | 2.6" , 65.7 mm |
| Line Rated Amps | 125A |
| Material | Polyamide 6/6 |
| Max. Voltage | 600V |
| Maximum Operating Temperature | 266°F |
| Min. Operating Temp. | -40°F |
| Mounting Mode | Clip On |
| Mounting Style | Clip On |
| Mounting Type | Clip On |
| No. Of Measurement Input | 2 |
| Nominal Cross Section | 0.05 sq. in. |
| Number Of Connections | 2 |
| Number Of Poles | 1 |
| Number Of Tiers | 1 |
| Overall Depth | 60.2 mm |
| Overall Length | 65.7 mm |
| Overall Width | 16 mm |
| Product Compatibility | Spacial Enclosures |
| Quantity Per Set | Set of 50 |
| Resistivity | 10000 M ohms |
| Returnability | No |
| Rohs Compliant | Yes |
| Special Features | It Is Compliant With Green Premium (RoHS/Reach), Linergy TR Is Terminal Block For Linergy, Multi Standards Certified (VDE/LR/CURUS/LEC-EX/ATEX/EAC/GL/CSA) |
| Strip Length | 18 mm |
| Surface Resistance | 1000 G ohms |
| Terminal Block Level | 1 |
| Terminal Block Type | Grounding |
| Tightening Torque | 28.3 lbf.-in. to 32.7 lbf.-in. |
| Tool Type | Connection Screwdriver, Disconnection Screwdriver |
| Torque | 4 N-m |
| Type | Grounding |
| Width | 0.6" , 16 mm |
| Wire Stripping Length | 0.7" |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 6.02 |
| Ship length (cm) | 6.57 |
| Ship width (cm) | 1.6 |
| Country of Origin | TR |
Product Variants
| Product | Model | For Maximum Wire Size | Amps | Max. Voltage | Depth | Number Of Connections | Strip Length | Torque | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

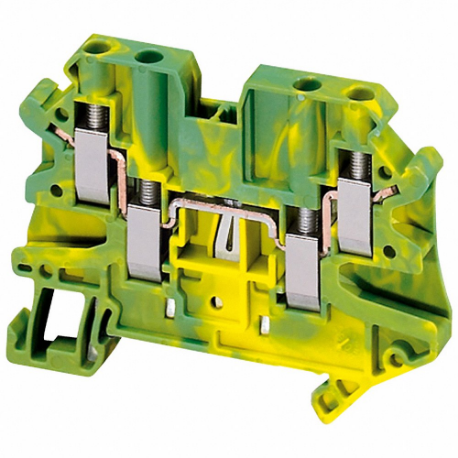

NSYTRV44PE | 12 AWG | 20A | 150V | 47.5 mm | 4 | 9 mm | 1 N-m | 65.4 mm | €29.23 |
