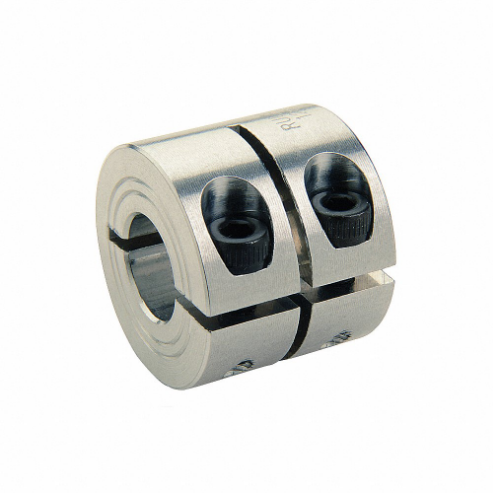

RULAND MANUFACTURING WCL-2-A 1/8 Inch Double Wide Shaft Collar, Aluminum, One-Piece Clamp Style, 5/8 Inch OD, 5/8 Inch Wd.
Item: AF9YHDModel: WCL-2-ACross Ref: 30VU71
7 In Stock
Ships within 2 days via
10.00% off
€53.50 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shaft Collar |
| Bore Diameter | 1/8" |
| Bore Tolerance | +0.0005" to +0.002" |
| Bore Type | Round |
| Clearance Dia. | 26.3 mm |
| Clearance Diameter | 0.77" |
| Collar Construction | 1-Piece |
| Collar Material | Aluminum |
| Collar Material Finish | Bright |
| Collar Material Grade | Grade 2024 |
| Collar Outside Diameter | 5/8" |
| Collar Style | Clamp |
| Collar Width | 5/8" |
| Dimension Type | Standard |
| For Shaft Diameter | 1/8" |
| Grade | Grade 2024 |
| Included Screws | (2) Hex Socket Cap Screw |
| Material | Aluminum |
| Maximum Operating Temperature | 225°F |
| Minimum Operating Temperature | -40°F |
| Number Of Pieces | 1 |
| Operating Temp. Range | -40°F to +225°F |
| Outside Dia. | 24 mm |
| Screw Location From Center | 0.21" |
| Screw Material | Alloy Steel |
| Screw Material Finish | Black Oxide |
| Screw Seating Torque | 15 lbs.-in. |
| Screw Size | #4-40 |
| Screw Thread Size | #4-40 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.0005" to 0" |
| System Of Measurement | Imperial |
| Width Tolerance | -0.01" to +0.003" |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.78 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 1.57 |
| HS code | 8483608000 |
| Country of Origin | US |
Product Variants
| Model | Outside Dia. | Collar Material | Bore Dia. | Material | Screw Material | Clearance Dia. | Operating Temp. Range | Collar Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| WCL-10-F | 78 mm | Carbon Steel | 5/8" | Lead Free Steel | Alloy Steel | 84.7 mm | -40°F to +350°F | 15/16" | €70.70 | |
| WCL-10-SS | 82 mm | Stainless Steel | 5/8" | Stainless Steel | Stainless Steel | 88.8 mm | -40°F to +350°F | 15/16" | €167.70 | |
| WCL-12-F | 82 mm | Carbon Steel | 3/4" | Lead Free Steel | Alloy Steel | 88.8 mm | -40°F to +350°F | 1 1/16" | €67.51 | |
| WCL-12-SS | 16 mm | Stainless Steel | 3/4" | Stainless Steel | Stainless Steel | 20.8 mm | -40°F to +350°F | 1 1/16" | €181.90 | |
| WCL-14-F | 18 mm | Carbon Steel | 7/8" | Lead Free Steel | Alloy Steel | 22.4 mm | -40°F to +350°F | 1 1/16" | €91.55 | |
| WCL-14-SS | 18 mm | Stainless Steel | 7/8" | Stainless Steel | Stainless Steel | 22.4 mm | -40°F to +350°F | 1 1/16" | €224.92 | |
| WCL-16-F | 18 mm | Carbon Steel | 1" | Lead Free Steel | Alloy Steel | 22.4 mm | -40°F to +350°F | 1 1/16" | €84.58 |
