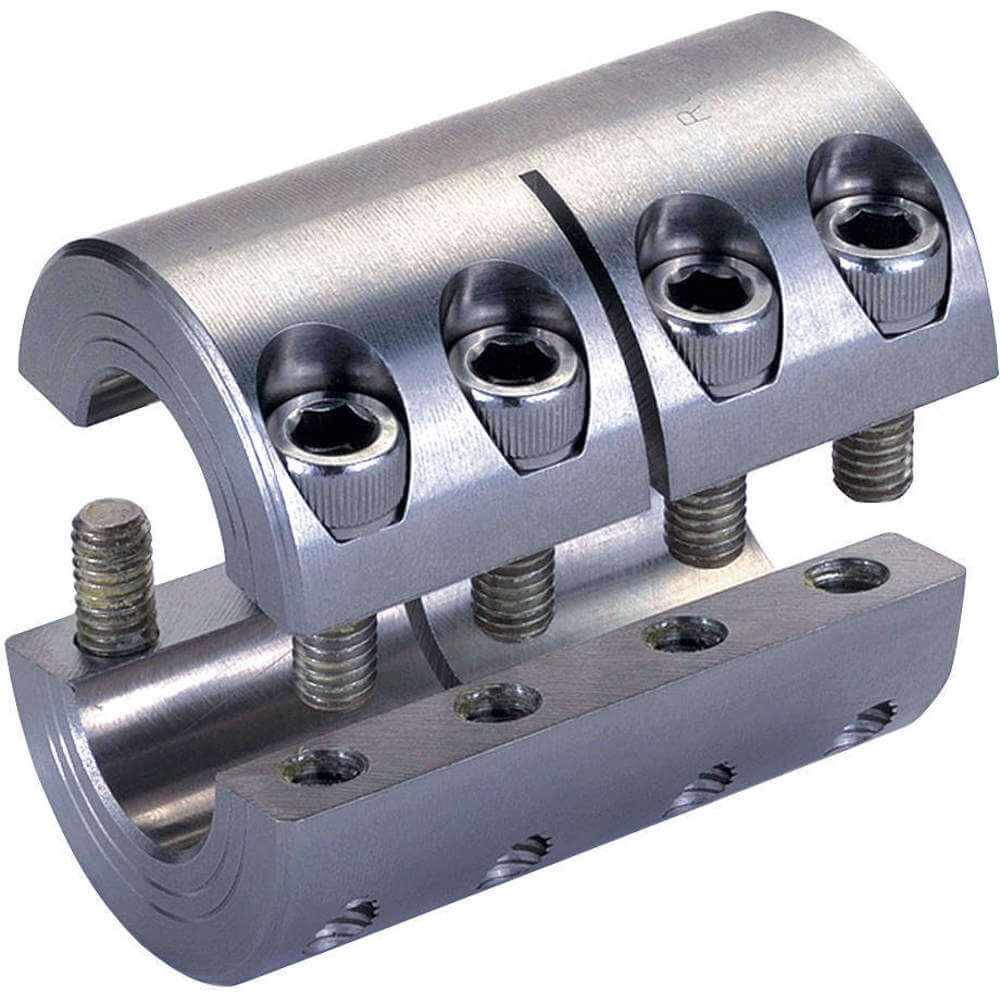

RULAND MANUFACTURING SPX-23-16-SS 1-7/16 x 1 Inch Rigid Coupling, 303 SS, Two-Piece Clamp Style, 2 5/8 Inch OD, 3 7/8 Inch Lg.
Item: AF9XAEModel: SPX-23-16-SSCross Ref: 30VK27
7 In Stock
1 7/16"
1"
Stainless Steel
1 7/16"
Ships within 2 days via
10.00% off
€949.89 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rigid Shaft Coupling |
| Bore Diameter 1 | 1 7/16" |
| Bore Diameter 2 | 1" |
| Bore Tolerance | +0.0005" to +0.002" |
| Bore Type | Round |
| Clearance Dia. | 2 21/25" |
| Clearance Diameter | 2.84" |
| Coupling Construction | Two-Piece |
| Coupling Material | Stainless Steel |
| Coupling Material Finish | Bright |
| Coupling Material Grade | Grade 303 |
| Coupling Outside Diameter | 2 5/8" |
| Different Bore Sizes | Yes |
| Fastener Tightening Torque | 190 lbs.-in. |
| Features | Precision Honed Bores, Vibration Resistant Screws |
| Grade | Grade 303 |
| Included Screws | (8) Clamp Screws |
| Material | Stainless Steel |
| Max. Rpm | 4000 RPM |
| Max. Torque | 2900 lbs.-in. |
| Maximum Bore Diameter | 1 7/16" |
| Maximum Operating Temperature | 350°F |
| Minimum Operating Temperature | -40°F |
| Number Of Locking Screws | 8 |
| Outside Dia. | 2 5/8" |
| Overall Length | 3 7/8" |
| Rated Torque | 2900 lbs.-in. |
| Recommended Gap | 0.094" |
| Resistance Properties | Corrosion Resistant |
| Screw Location From Center | 1.05" |
| Screw Material | Stainless Steel |
| Screw Material Finish | Bright |
| Screw Material Grade | 18-8 300 Series |
| Screw Thread Size | 5/16"-24 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.0005" to 0" |
| System Of Measurement | Imperial |
| Type | Two Piece Clamp |
| Zero Backlash | Yes |
Shipping Info:
| Ship weight (kg) | 1.97 |
| Ship height (cm) | 8.38 |
| Ship length (cm) | 9.86 |
| Ship width (cm) | 7.62 |
| HS code | 8483608000 |
| Country of Origin | US |
Product Variants
| Model | Clearance Dia. | Bore Diameter 1 | Bore Diameter 2 | Coupling Outside Diameter | Overall Length | Coupling Material | Screw Material | Max. Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SPX-20-20-SS | 2.286" | 1 1/4" | 1 1/4" | 2 1/16" | - | Stainless Steel | Stainless Steel | 3200 lbs.-in. | €625.89 | |
| SPX-22-22-SS | 2.772" | 1 3/8" | 1 3/8" | 2 1/2" | 3 5/8" | Stainless Steel | Stainless Steel | 3800 lbs.-in. | €946.77 | |
| SPX-24-16-F | 2.886" | 1 1/2" | 1" | 2 5/8" | 3 7/8" | Carbon Steel | Alloy Steel | 6800 lbs.-in. | €364.90 | |
| SPX-24-16-SS | - | 1 1/2" | 1" | 2 5/8" | 3 7/8" | Stainless Steel | Stainless Steel | 4000 lbs.-in. | €1,077.15 | |
| SPX-28-28-SS | 3.365" | 1 3/4" | 1 3/4" | 3 1/8" | 4 1/2" | Stainless Steel | Stainless Steel | 7400 lbs.-in. | €2,425.37 | |
| SPX-32-32-F | 3.717" | 2" | 2" | 3 3/8" | 4 7/8" | Carbon Steel | Alloy Steel | 13600 lbs.-in. | €925.81 | |
| SPX-32-32-SS | 3.717" | - | - | - | 4 7/8" | - | - | 8200 lbs.-in. | €2,943.64 |
