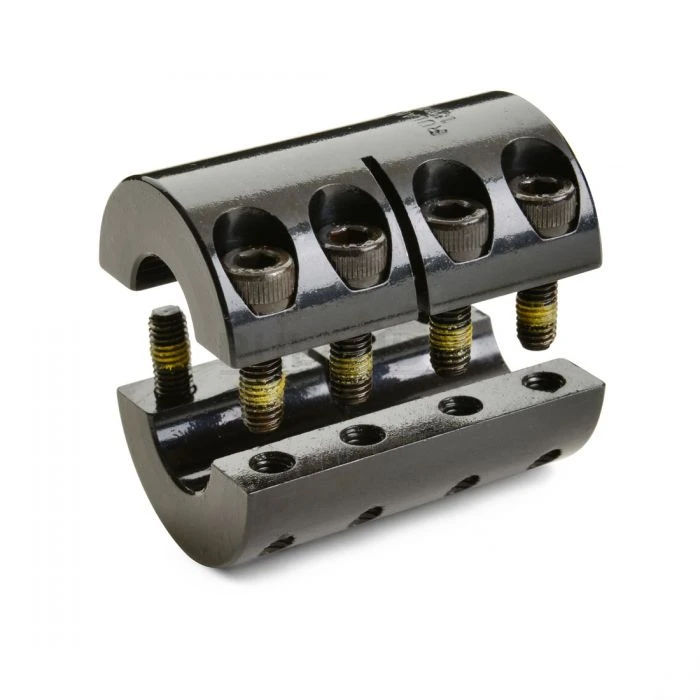

RULAND MANUFACTURING SPX-2-2-F 1/8 x 1/8 Inch Rigid Coupling, Black Oxide Steel, Two-Piece Clamp Style, 1/2 Inch OD, 13/16 Inch Lg.
2/16"
2/16"
Alloy Steel
2/16"
2/16"
Get it by Tuesday, Dec 23
€86.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| B1 Maximum Shaft Penetration | 0.406" |
| B2 Max Shaft Penetration | 0.406" |
| Balanced Design | Yes |
| Bore (b1) | 0.125" |
| Bore Tolerance | +0.0005" to +0.002" |
| Clearance Diameter (c) Max | 0.578" |
| Finish Specification | Hot Process Black Oxide, Impregnated With Naphthenic Oil, Centrifugally Dried |
| Forged Clamp Screw | #2-56 |
| Full Bearing Support Required | No |
| Hex Wrench Size | 5/64" |
| Length (l) | 13/16" |
| Material Specification | 1215 Carbon Steel Bar |
| Max. Speed | 4000 RPM |
| Moment Of Inertia | 0.0012 lbs.-in. |
| Number Of Screws | 8 EA |
| Outer Diameter (od) | 1/2" |
| Precision Honed Bores | Yes |
| Rated Torque | 18 lbs.-in. |
| Recommended Gap | 0.031" |
| Recommended Shaft Tolerance | -0.0005" to 0" |
| Screw Finish | Black Oxide |
| Screw Location (r) | 0.15" |
| Screw Material | Alloy Steel |
| Seating Torque | 6 lbs.-in. |
| Small Bore (b2) | 0.125" |
| Temperature | -40°F to 350°F |
| Zero-backlash | Yes |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 2.07 |
| Ship width (cm) | 1.27 |
| Country of Origin | US |
Product Variants
| Model | Clearance Dia. | Bore Diameter 1 | Bore Diameter 2 | Coupling Outside Diameter | Overall Length | Coupling Material | Screw Material | Max. Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SPX-20-20-SS | 2.286" | 1 1/4" | 1 1/4" | 2 1/16" | - | Stainless Steel | Stainless Steel | 3200 lbs.-in. | €625.89 | |
| SPX-22-22-SS | 2.772" | 1 3/8" | 1 3/8" | 2 1/2" | 3 5/8" | Stainless Steel | Stainless Steel | 3800 lbs.-in. | €946.77 | |
| SPX-24-16-F | 2.886" | 1 1/2" | 1" | 2 5/8" | 3 7/8" | Carbon Steel | Alloy Steel | 6800 lbs.-in. | €364.90 | |
| SPX-24-16-SS | - | 1 1/2" | 1" | 2 5/8" | 3 7/8" | Stainless Steel | Stainless Steel | 4000 lbs.-in. | €1,077.15 | |
| SPX-28-28-SS | 3.365" | 1 3/4" | 1 3/4" | 3 1/8" | 4 1/2" | Stainless Steel | Stainless Steel | 7400 lbs.-in. | €2,425.37 | |
| SPX-32-32-F | 3.717" | 2" | 2" | 3 3/8" | 4 7/8" | Carbon Steel | Alloy Steel | 13600 lbs.-in. | €925.81 | |
| SPX-32-32-SS | 3.717" | - | - | - | 4 7/8" | - | - | 8200 lbs.-in. | €2,943.64 |
