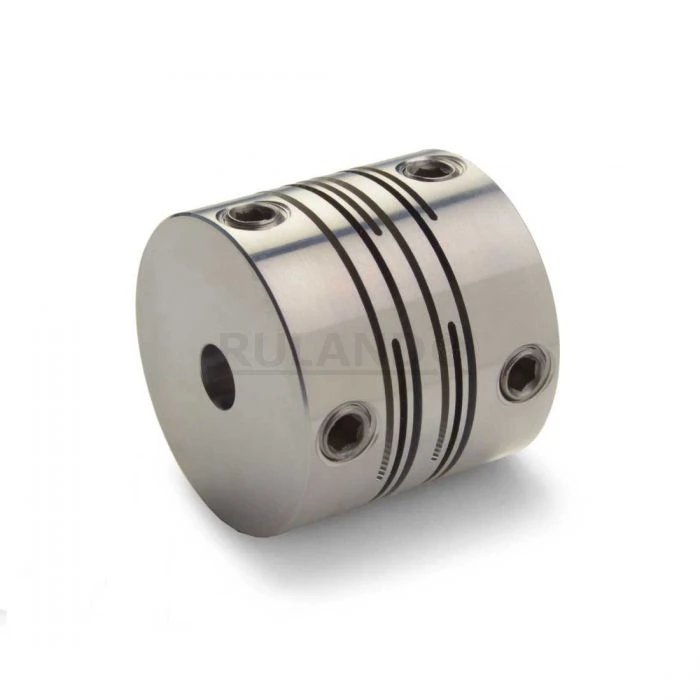

RULAND MANUFACTURING RSS10-7MM-3/16 -A 7mm x 0.188 Inch Short Slit Coupling, Aluminum, Set Screw Style, 0.630 Inch OD, 0.925 Inch Lg.
Item: DK6TXTModel: RSS10-7MM-3/16 -A
7 In Stock
Ships within 2 days via
€122.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Angular Misalignment | 2.5° |
| Axial Motion | 0.016" |
| B1 Maximum Shaft Penetration | 0.311" |
| B2 Max Shaft Penetration | 0.311" |
| Balanced Design | Yes |
| Bore (b1) | 7 mm |
| Bore Tolerance | -0" to +0.001" |
| Dynamic Torque Non-reversing | 10.2 lbs.-in. |
| Dynamic Torque Reversing | 6.6 lbs.-in. |
| Finish Specification | Surtec 650 |
| Forged Set Screw | M3 |
| Full Bearing Support Required | Yes |
| Hex Wrench Size | 1.5 mm |
| Length (l) | 0.778" |
| Material Specification | 7075-T651 Extruded And Drawn Aluminum Bar |
| Max. Speed | 25000 RPM |
| Moment Of Inertia | 0.0009942 lbs.-sq. in. |
| Number Of Screws | 4 |
| Outer Diameter | 0.63" |
| Parallel Misalignment | 0.004" |
| Peak Torque | 16.8 lbs.-in. |
| Screw Finish | Bright |
| Screw Material | Stainless Steel |
| Seating Torque | 0.73 N-m |
| Small Bore (b2) | 0.1875" |
| Temperature | -110°F to 175°F |
| Torsional Stiffness | 10.6 lbs.-in./deg. |
| Zero-backlash | Yes |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.6 |
| Ship length (cm) | 1.98 |
| Ship width (cm) | 1.6 |
| Country of Origin | IE |
Product Variants
| Model | Parallel Misalignment | Axial Motion | Torsional Stiffness | Bore Dia. 1 | Bore Dia. 2 | Coupling Outside Dia. | Overall Length | Angular Misalignment | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RSS8-1/4 -3MM-A | 0.003" | 0.012" | 7 lbs.-in./deg. | 1/4" | 3 mm | 0.516" | 21/32" | 2.5° | €173.15 | |
| RSS8-1/4 -4MM-A | 0.003" | 0.012" | 7 lbs.-in./deg. | 1/4" | 4 mm | 0.516" | 21/32" | 2.5° | €194.74 | |
| RSS10-1/4 -4MM-A | 0.004" | 0.016" | 10.6 lbs.-in./deg. | 1/4" | 4 mm | 5/8" | 25/32" | 2.5° | €179.13 | |
| RSS13-1/4 -5MM-A | 0.005" | 0.02" | 16.8 lbs.-in./deg. | 1/4" | 5 mm | 0.781" | 27/32" | 3° | €198.14 | |
| RSS10-1/4 -5MM-A | 0.004" | 0.016" | 10.6 lbs.-in./deg. | 1/4" | 5 mm | 5/8" | 25/32" | 2.5° | €179.13 | |
| RSS16-1/4 -6MM-A | 0.006" | 0.028" | 26.6 lbs.-in./deg. | 1/4" | 6 mm | 0.984" | 1 1/64" | 3° | €209.77 | |
| RSS8-1/4 -6MM-A | 0.003" | 0.012" | 7 lbs.-in./deg. | 1/4" | 6 mm | 0.516" | 21/32" | 2.5° | €173.15 |
