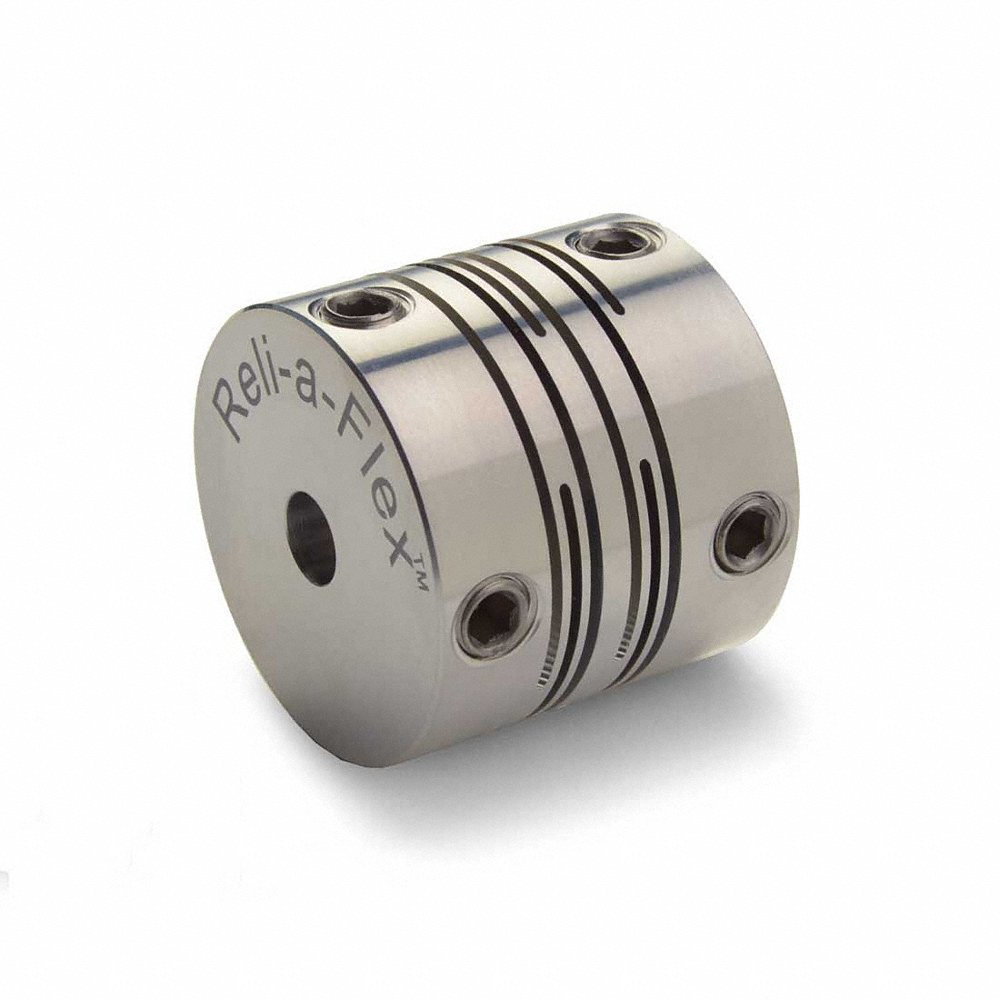

RULAND MANUFACTURING RSS Series Short Slit Couplings, Clamp Style, Inch To Metric
Filter
A
B
C| Style | Model | Parallel Misalignment | Axial Motion | Torsional Stiffness | Bore Dia. 1 | Bore Dia. 2 | Coupling Outside Dia. | Overall Length | Angular Misalignment | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | RSS13-5/16 -6MM-A | - | 0.02" | 16.8 lbs.-in./deg. | 0.312" | 6 mm | 0.781" | 27/32" | 3° | €198.14 | |
| A | RSS8-5MM-1/8 -A | 0.003" | 0.012" | 7 lbs.-in./deg. | 5 mm | 1/8" | 0.516" | 0.656" | 2.5° | €194.74 | |
| B | RSS8-5MM-3/16 -A | 0.003" | 0.012" | 7 lbs.-in./deg. | - | - | - | - | 2.5° | €173.15 | |
| A | RSS8-6MM-3/16 -A | 0.003" | 0.012" | 7 lbs.-in./deg. | 6 mm | 0.188" | 0.516" | 21/32" | 2.5° | €173.15 | |
| A | RSS8-6MM-1/8 -A | 0.003" | 0.012" | 7 lbs.-in./deg. | 6 mm | 1/8" | 0.516" | 21/32" | 2.5° | €173.15 | |
| A | RSS8-3/16 -3MM-A | 0.003" | 0.012" | 7 lbs.-in./deg. | 0.188" | 3 mm | 0.516" | 21/32" | 2.5° | €194.74 | |
| A | RSS8-1/8 -3MM-A | 0.003" | 0.012" | 7 lbs.-in./deg. | 1/8" | 3 mm | 0.516" | 21/32" | 2.5° | €173.15 | |
| A | RSS8-1/4 -6MM-A | 0.003" | 0.012" | 7 lbs.-in./deg. | 1/4" | 6 mm | 0.516" | 21/32" | 2.5° | €173.15 | |
| A | RSS8-1/4 -3MM-A | 0.003" | 0.012" | 7 lbs.-in./deg. | 1/4" | 3 mm | 0.516" | 21/32" | 2.5° | €173.15 | |
| A | RSS8-4MM-1/8 -A | 0.003" | 0.012" | 7 lbs.-in./deg. | 4 mm | 1/8" | 0.516" | 21/32" | 2.5° | €173.15 | |
| A | RSS8-3/16 -4MM-A | 0.003" | 0.012" | 7 lbs.-in./deg. | 0.188" | 4 mm | 0.516" | 21/32" | 2.5° | €173.15 | |
| A | RSS8-1/4 -4MM-A | 0.003" | 0.012" | 7 lbs.-in./deg. | 1/4" | 4 mm | 0.516" | 21/32" | 2.5° | €194.74 | |
| A | RSS8-1/4 -5MM-A | 0.003" | 0.012" | 7 lbs.-in./deg. | 1/4" | 5 mm | 0.516" | 21/32" | 2.5° | €173.15 | |
| A | RSS10-8MM-3/16 -A | 0.004" | 0.016" | - | 8 mm | 0.188" | 5/8" | 25/32" | 2.5° | €201.47 | |
| A | RSS10-8MM-1/4 -A | 0.004" | 0.016" | 10.6 lbs.-in./deg. | 8 mm | 1/4" | 5/8" | 25/32" | 2.5° | €179.13 | |
| A | RSS10-6MM-3/16 -A | 0.004" | 0.016" | 10.6 lbs.-in./deg. | 6 mm | 0.188" | 5/8" | 0.781" | 2.5° | €179.13 | |
| C | RSS10-7MM-1/4 -A | 0.004" | 0.016" | 10.6 lbs.-in./deg. | - | - | - | - | 2.5° | €111.17 | |
| A | RSS10-1/4 -5MM-A | 0.004" | 0.016" | 10.6 lbs.-in./deg. | 1/4" | 5 mm | 5/8" | 25/32" | 2.5° | €179.13 | |
| A | RSS10-1/4 -4MM-A | 0.004" | 0.016" | 10.6 lbs.-in./deg. | 1/4" | 4 mm | 5/8" | 25/32" | 2.5° | €179.13 | |
| C | RSS10-7MM-3/16 -A | 0.004" | 0.016" | 10.6 lbs.-in./deg. | - | - | - | - | 2.5° | €122.28 | |
| A | RSS10-1/4 -6MM-A | 0.004" | 0.016" | 10.6 lbs.-in./deg. | 1/4" | 6 mm | 5/8" | 25/32" | 2.5° | €201.47 | |
| A | RSS10-3/16 -4MM-A | 0.004" | 0.016" | 10.6 lbs.-in./deg. | 0.188" | 4 mm | 5/8" | 25/32" | 2.5° | €179.13 | |
| A | RSS10-5MM-3/16 -A | 0.004" | 0.016" | 10.6 lbs.-in./deg. | 5 mm | 0.188" | 5/8" | 25/32" | 2.5° | €179.13 | |
| A | RSS13-10MM-5/16 -A | 0.005" | 0.02" | 16.8 lbs.-in./deg. | 10 mm | 0.312" | 0.781" | 27/32" | 3° | €222.85 | |
| A | RSS13-5/16 -5MM-A | 0.005" | 0.02" | 16.8 lbs.-in./deg. | 0.312" | 5 mm | 0.781" | 27/32" | 3° | €198.14 | |
| A | RSS13-10MM-1/4 -A | 0.005" | 0.02" | 16.8 lbs.-in./deg. | 10 mm | 1/4" | 0.781" | 0.844" | 3° | €198.14 | |
| C | RSS13-9MM-5/16 -A | 0.005" | 0.02" | 16.8 lbs.-in./deg. | - | - | - | - | 3° | €137.83 | |
| C | RSS13-7MM-1/4 -A | 0.005" | 0.02" | 16.8 lbs.-in./deg. | - | - | - | - | 3° | €119.79 | |
| C | RSS13-5/16 -7MM-A | 0.005" | 0.02" | 16.8 lbs.-in./deg. | - | - | - | - | 3° | €112.33 | |
| A | RSS13-1/4 -6MM-A | 0.005" | 0.02" | 16.8 lbs.-in./deg. | 1/4" | 6 mm | 0.781" | 27/32" | 3° | €198.14 | |
| A | RSS13-1/4 -5MM-A | 0.005" | 0.02" | 16.8 lbs.-in./deg. | 1/4" | 5 mm | 0.781" | 27/32" | 3° | €198.14 | |
| A | RSS13-8MM-1/4 -A | 0.005" | - | 16.8 lbs.-in./deg. | 8 mm | 1/4" | 0.781" | 27/32" | 3° | €198.14 | |
| A | RSS13-8MM-5/16 -A | 0.005" | - | 16.8 lbs.-in./deg. | 8 mm | 0.312" | 0.781" | 27/32" | 3° | €198.14 | |
| C | RSS16-5/16 -7MM-A | 0.006" | 0.028" | 26.6 lbs.-in./deg. | - | - | - | - | 3° | €115.74 | |
| A | RSS16-8MM-1/4 -A | 0.006" | 0.028" | 26.6 lbs.-in./deg. | 8 mm | 1/4" | 0.984" | 1 1/64" | 3° | €186.51 | |
| A | RSS16-3/8 -8MM-A | 0.006" | 0.028" | 26.6 lbs.-in./deg. | 3/8" | 8 mm | 0.984" | 1 1/64" | 3° | €209.77 | |
| A | RSS16-3/8 -6MM-A | 0.006" | 0.028" | 26.6 lbs.-in./deg. | 3/8" | 6 mm | 0.984" | 1 1/64" | 3° | €186.51 | |
| C | RSS16-9MM-5/16 -A | 0.006" | 0.028" | 26.6 lbs.-in./deg. | - | - | - | - | 3° | €127.31 | |
| A | RSS16-12MM-3/8 -A | 0.006" | 0.028" | 26.6 lbs.-in./deg. | 12 mm | 3/8" | 0.984" | 1 1/64" | 3° | €186.51 | |
| A | RSS16-10MM-3/8 -A | 0.006" | 0.028" | 26.6 lbs.-in./deg. | 10 mm | 3/8" | 0.984" | 1 1/64" | 3° | €186.51 | |
| A | RSS16-12MM-1/4 -A | 0.006" | 0.028" | - | 12 mm | 1/4" | 0.984" | 1 1/64" | 3° | €209.77 | |
| A | RSS16-10MM-5/16 -A | 0.006" | 0.028" | - | 10 mm | 0.312" | 0.984" | 1 1/64" | 3° | €186.51 | |
| A | RSS16-10MM-1/4 -A | 0.006" | 0.028" | 26.6 lbs.-in./deg. | 10 mm | 1/4" | 0.984" | 1 1/64" | 3° | €186.51 | |
| C | RSS16-11MM-3/8 -A | 0.006" | 0.028" | 26.6 lbs.-in./deg. | - | - | - | - | 3° | €127.31 | |
| C | RSS16-9MM-1/4 -A | 0.006" | 0.028" | 26.6 lbs.-in./deg. | - | - | - | - | 3° | €131.58 | |
| C | RSS16-11MM-1/4 -A | 0.006" | 0.028" | 26.6 lbs.-in./deg. | - | - | - | - | 3° | €115.74 | |
| A | RSS16-1/4 -6MM-A | 0.006" | 0.028" | 26.6 lbs.-in./deg. | 1/4" | 6 mm | 0.984" | 1 1/64" | 3° | €209.77 | |
| A | RSS16-12MM-5/16 -A | 0.006" | 0.028" | 26.6 lbs.-in./deg. | 12 mm | 0.312" | 0.984" | 1 1/64" | 3° | €186.51 | |
| C | RSS16-3/8 -9MM-A | 0.006" | 0.028" | 26.6 lbs.-in./deg. | - | - | - | - | 3° | €115.74 | |
| C | RSS16-11MM-5/16 -A | 0.006" | 0.028" | 26.6 lbs.-in./deg. | - | - | - | - | 3° | €115.74 | |
| A | RSS16-8MM-5/16 -A | 0.006" | 0.028" | 26.6 lbs.-in./deg. | 8 mm | 0.312" | 0.984" | 1 1/64" | 3° | €186.51 | |
| C | RSS16-3/8 -7MM-A | 0.006" | 0.028" | 26.6 lbs.-in./deg. | - | - | - | - | 3° | €115.74 | |
| A | RSS16-5/16 -6MM-A | 0.006" | 0.028" | 26.6 lbs.-in./deg. | 0.312" | 6 mm | 0.984" | 1 1/64" | 3° | €186.51 | |
| C | RSS16-7MM-1/4 -A | 0.006" | 0.028" | 26.6 lbs.-in./deg. | - | - | - | - | 3° | €127.31 |
