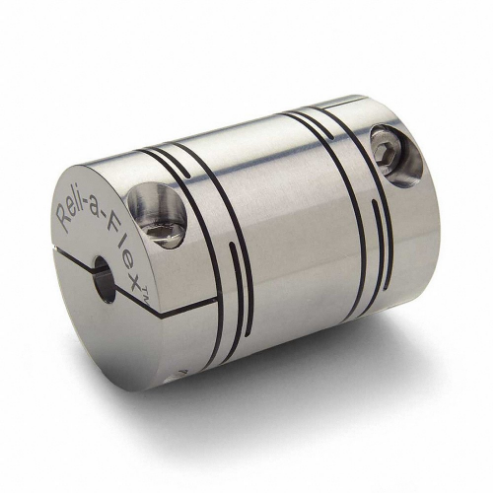

RULAND MANUFACTURING RLC10-3/16 -4MM-A 0.188 x 4mm Long Slit Coupling, Aluminum, Clamp Style, 0.630 Inch OD, 0.925 Inch Lg.
Item: CT9GHWModel: RLC10-3/16 -4MM-ACross Ref: 805J83
7 In Stock
Ships within 2 days via
10.00% off
€165.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Coupling |
| Angular Misalignment | 2.5° |
| Application | Medical And Semiconductor Equipment, Test And Measurement Equipment |
| Axial Motion | 0.016" |
| Bore Dia. 1 | 0.188" |
| Bore Dia. 2 | 4 mm |
| Bore Diameter 1 | 3/16" |
| Bore Tolerance | 0" to 0.001" |
| Bore Type | Round |
| Coupling Material | Aluminum |
| Coupling Material Finish | Surtec 650 |
| Coupling Material Grade | 7075 |
| Coupling Outside Dia. | 5/8" |
| Dynamic Torque Non-reversing | 7.5 lbs.-in. |
| Dynamic Torque Reversing | 4.9 lbs.-in. |
| Fastener Tightening Torque | 0.36 N-m |
| Features | High Torsional Stiffness, Torque And Misalignment Capabilities |
| For Environment | Medical |
| For Misalignment Type | Angular, Axial, Parallel |
| Full Bearing Support Required | Yes |
| Included Screws | (2) Hex Head Cap Screw |
| Length Through Bore 1 | 0.3" |
| Length Through Bore 2 | 0.3" |
| Max. Bore Dia. | 0.188" |
| Max. Operating Temp. | 175°F |
| Max. Speed | 10000 RPM |
| Maximum Bore Diameter | 3/16" |
| Min. Operating Temp. | -110°F |
| Moment Of Inertia | 0.0012293 lbs.-sq. in. |
| Number Of Locking Screws | 2 |
| Overall Length | 59/64" |
| Parallel Misalignment | 0.008" |
| Screw Material | Stainless Steel |
| Screw Material Finish | Bright |
| Screw Material Grade | Grade 18-8, 300 Series |
| Screw Thread Size | M2 |
| Shaft Locking Type | Clamp On |
| System Of Measurement | Imperial/Metric |
| Torsional Stiffness | 12.4 lbs.-in./deg. |
| Zero Backlash | Yes |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.6 |
| Ship length (cm) | 2 |
| Ship width (cm) | 2 |
| Country of Origin | IE |
Product Variants
| Model | Torsional Stiffness | Axial Motion | Parallel Misalignment | Bore Dia. 1 | Bore Dia. 2 | Coupling Outside Dia. | Overall Length | Angular Misalignment | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RLC10-1/4 -3MM-A | 12.4 lbs.-in./deg. | 0.016" | 0.008" | 1/4" | 3 mm | 5/8" | 0.922" | 2.5° | €201.95 | |
| RLC13-1/4 -4MM-A | 20.4 lbs.-in./deg. | 0.02" | 0.01" | 1/4" | 4 mm | 0.781" | 1.031" | 3° | €204.57 | |
| RLC10-1/4 -4MM-A | 12.4 lbs.-in./deg. | 0.016" | 0.008" | 1/4" | 4 mm | 5/8" | 59/64" | 2.5° | €183.56 | |
| RLC13-1/4 -5MM-A | 20.4 lbs.-in./deg. | - | 0.01" | 1/4" | 5 mm | 0.781" | 1 1/32" | 3° | €230.09 | |
| RLC10-1/4 -5MM-A | 12.4 lbs.-in./deg. | 0.016" | 0.008" | 1/4" | 5 mm | 5/8" | 59/64" | 2.5° | €206.45 | |
| RLC13-1/4 -6MM-A | 20.4 lbs.-in./deg. | - | 0.01" | 1/4" | 6 mm | 0.781" | 1 1/32" | 3° | €204.57 | |
| RLC16-1/4 -6MM-A | 34.5 lbs.-in./deg. | 0.028" | 0.016" | 1/4" | 6 mm | 0.984" | 1 11/32" | 3° | €196.33 |
