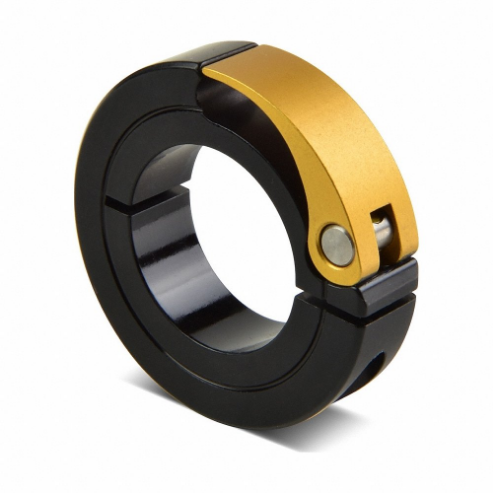

RULAND MANUFACTURING QCL-5-A 5/16 Inch Quick Clamping Shaft Collar, Aluminum, Quick Release, 1.496 Inch OD, 0.394 Inch Wd.
Item: CT9JZYModel: QCL-5-ACross Ref: 805FN4
7 In Stock
Ships within 2 days via
10.00% off
€59.87 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shaft Collar |
| Bore Dia. | 0.312" |
| Bore Diameter | 5/16" |
| Bore Tolerance | 0.0005" to 0.002" |
| Bore Type | Round |
| Center To Lever Top | 3/4" |
| Collar Construction | 1-Piece |
| Collar Material | Aluminum |
| Collar Material Finish | Bright |
| Collar Material Grade | Grade 6061 |
| Collar Outside Diameter | 1 1/2" |
| Collar Width | 13/32" |
| Construction | One Piece |
| For Shaft Dia. | 0.312" |
| For Shaft Diameter | 5/16" |
| Handle Color | Gold |
| Handle Material | Aluminum |
| Handle Material Finish | Anodized |
| Included Screws | Clamp Screw |
| Max. Operating Temp. | 200°F |
| Min. Operating Temp. | -40°F |
| Outside Dia. | 1 1/2" |
| Screw Material | Stainless Steel |
| Screw Material Finish | Bright |
| Screw Material Grade | Grade 18-8, 300 Series |
| Screw Thread Size | M3 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.0005" to 0" |
| System Of Measurement | Imperial |
| Width Tolerance | -0.01" to +0.003" |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 1 |
| Ship length (cm) | 3.8 |
| Ship width (cm) | 3.81 |
| Country of Origin | US |
Product Variants
| Model | Bore Dia. | Outside Dia. | Collar Width | Bore Tolerance | Included Screws | Handle Material Finish | Collar Outside Diameter | For Shaft Diameter | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| QCL-6-A | 3/8" | 38 mm | 13/32" | +0.0005" to +0.002" | (1) Hex Socket Cap Screw | Anodized | 1 1/2" | 3/8" | €70.70 | |
| QCL-8-A | 1/2" | 38 mm | 13/32" | +0.0005" to +0.002" | (1) Hex Socket Cap Screw | Anodized | 1 1/2" | 1/2" | €70.70 | |
| QCL-10-A | 5/8" | 38 mm | 13/32" | +0.0005" to +0.002" | (1) Hex Socket Cap Screw | Anodized | 1 1/2" | 5/8" | €70.70 | |
| QCL-12-A | 3/4" | 50 mm | 1/2" | +0.0005" to +0.002" | (1) Hex Socket Cap Screw | Anodized | 2" | 3/4" | €83.89 | |
| QCL-16-A | 1" | 50 mm | 1/2" | +0.0005" to +0.002" | (1) Hex Socket Cap Screw | Anodized | 2" | 1" | €86.60 | |
| QCL-18-A | 1 1/8" | 50 mm | 1/2" | +0.0005" to +0.002" | (1) Hex Socket Cap Screw | Anodized | 2" | 1 1/8" | €82.50 | |
| QCL-20-A | - | 75 mm | 19/32" | +0.0005" to +0.002" | (1) Hex Socket Cap Screw | Anodized | 2 15/16" | 1 1/4" | €131.53 |
