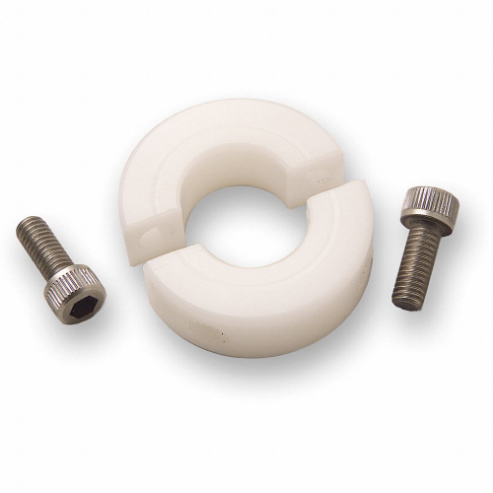

RULAND MANUFACTURING MSP-9-P 9mm Two-Piece Shaft Collar, Plastic, Clamp Style, 24mm OD, 9mm Wd.
Item: CT9MRMModel: MSP-9-PCross Ref: 805EG6
7 In Stock
Ships within 2 days via
10.00% off
€33.31 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shaft Collar |
| Bore Dia. | 9 mm |
| Bore Tolerance | 0.012 mm to 0.5 mm |
| Bore Type | Round |
| Clearance Dia. | 26.3 mm |
| Collar Construction | 2-Piece |
| Collar Material | Plastic |
| Collar Material Finish | Plain |
| Collar Material Grade | Grade Acetal |
| Collar Outside Diameter | 24 mm |
| Collar Width | 9 mm |
| Construction | Two Piece |
| For Shaft Dia. | 9 mm |
| For Shaft Diameter | 9 mm |
| Grade | Grade 303 |
| Included Screws | (2) Clamp Screw |
| Max. Operating Temp. | 185°F |
| Minimum Operating Temperature | -10°F |
| Outside Dia. | 24 mm |
| Resistance Properties | Corrosion Resistant |
| Screw Length | 10 mm |
| Screw Location From Center | 8.51 mm |
| Screw Material | Stainless Steel |
| Screw Material Finish | Bright |
| Screw Material Grade | Grade 18-8, 300 Series |
| Screw Seating Torque | 0.5 N-m |
| Screw Thread Size | M3 x 10 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.013 mm to 0 mm |
| System Of Measurement | Metric |
| Width Tolerance | -0.254 mm to +0.076 mm |
Shipping Info:
| Ship height (cm) | 1.27 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 12.7 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Collar Material | Clearance Dia. | Screw Material | Collar Width | Screw Location From Center | Shaft Tolerance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MSP-10-A | 24 mm | 10 mm | Aluminum | 26.3 mm | Alloy Steel | 9 mm | 8.51 mm | -0.013 mm to 0 mm | €25.71 | |
 |
MSP-10-F | 24 mm | 10 mm | Carbon Steel | 26.3 mm | Alloy Steel | 9 mm | 8.51 mm | -0.013 mm to 0 mm | €21.02 | |
 |
MSP-10-SS | 24 mm | 10 mm | Stainless Steel | 26.3 mm | Stainless Steel | 9 mm | 8.51 mm | -0.013 mm to 0 mm | €41.72 | |
|
MSP-11-A | 28 mm | 11 mm | Aluminum | 32 mm | Alloy Steel | 11 mm | 10.01 mm | -0.013 mm to 0 mm | €25.98 | |
|
MSP-11-F | 28 mm | 11 mm | Carbon Steel | 32 mm | Alloy Steel | 11 mm | 10.01 mm | -0.013 mm to 0 mm | €22.76 | |
|
MSP-11-SS | 28 mm | 11 mm | Stainless Steel | 32 mm | Stainless Steel | 11 mm | 10.01 mm | -0.013 mm to 0 mm | €50.25 | |
|
MSP-12-A | 28 mm | 12 mm | Aluminum | 32 mm | Alloy Steel | 11 mm | 10.01 mm | -0.013 mm to 0 mm | €26.15 |
