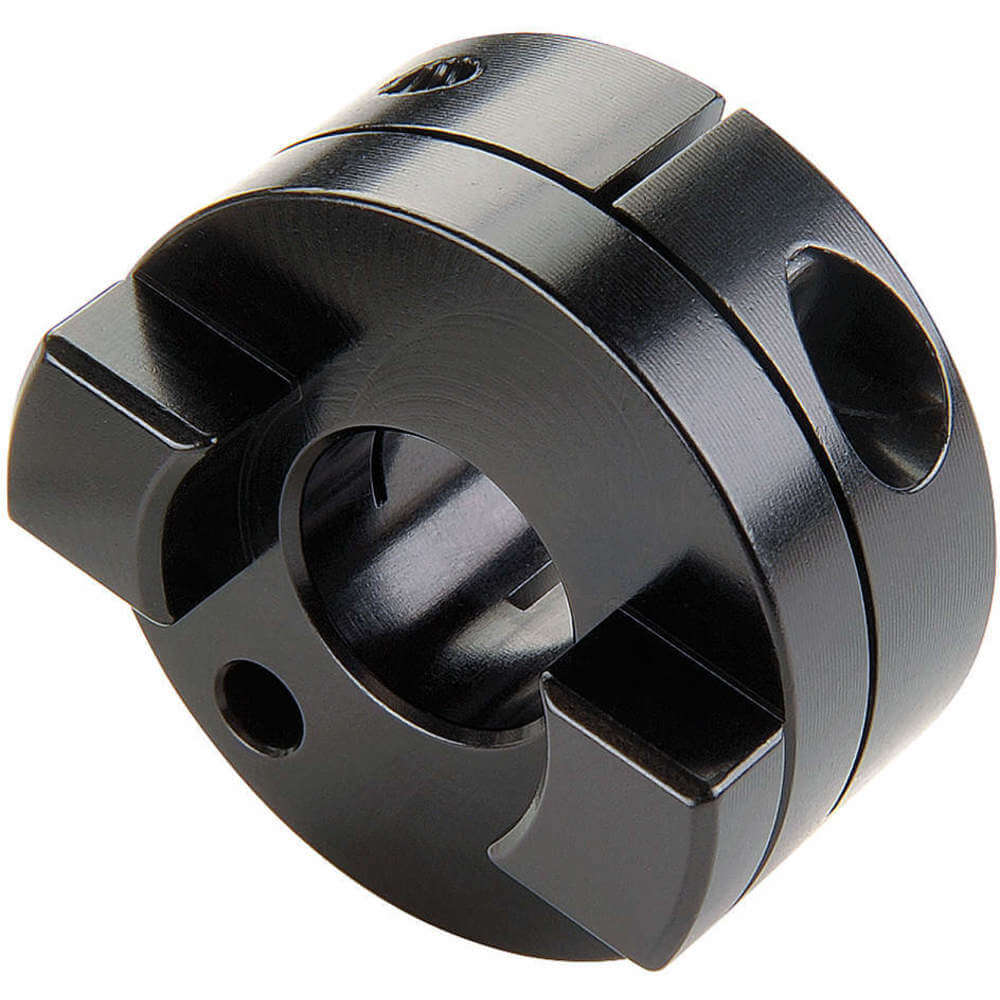

RULAND MANUFACTURING MOCT41-16-A 16mm Oldham Coupling Hub, Aluminum, Clamp Style, 41.3mm OD, 18.0mm Lg.
Item: AB8ZXYModel: MOCT41-16-ACross Ref: 2ANK1
7 In Stock
41 mm
16 mm
Alloy Steel
Ships within 2 days via
10.00% off
€79.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Motion Control Coupling Hub |
| Angular Misalignment | 0.5° |
| Axial Motion | 0.15 mm |
| Bore Dia. | 16 mm |
| Bore Tolerance | -0 mm to +0.03 mm |
| Bore Type | Round |
| Clearance Dia. | 41.3 mm |
| Compatible Center Element Manufacturer Part No. | OD26/41-AT, OD26/41-NL, OD26/41-PEK |
| Coupling Overall Length | 50.8 mm |
| Coupling Size | Moct41 |
| Features | Balanced Design |
| Finish | Anodized |
| For Misalignment Type | Angular, Axial, Parallel |
| Full Bearing Support Required | Yes |
| Hub Dia. | 41.3 mm |
| Hub Material | Aluminum |
| Hub Material Finish | Black Anodized |
| Hub Material Grade | Grade 2024 |
| Included Screws | Clamp Screw |
| Length Through Bore | 18 mm |
| Material | Aluminum |
| Max. Angular Misalignment | 0.5° |
| Max. Parallel Misalignment | 0.01" |
| Max. Speed | 4500 RPM |
| Max. Temp. Range | 225°F |
| Maximum Operating Temperature | 93°C |
| Mechanical Fuse Break | Yes |
| Minimum Operating Temperature | -23°C |
| Number Of Locking Screws | 1 |
| Outside Dia. | 41.3 mm |
| Over-standard Parallel Misalignment | 4.13 mm |
| Overall Length | 50.8 mm |
| Parallel Misalignment | 0.25 mm |
| Screw Material | Alloy Steel |
| Screw Material Finish | Black Oxide |
| Screw Seating Torque | 4.6 N-m |
| Screw Thread Size | M4 |
| Screw Type | Cap Screw |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.013 mm to 0 mm |
| Style | Oldham Clamp |
| System Of Measurement | Metric |
| Zero Backlash | Yes |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 2.79 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 4.32 |
| HS code | 8483608000 |
| Country of Origin | US |
Product Variants
| Model | Length Through Bore | Outside Dia. | Coupling Size | Bore Dia. | Max. Parallel Misalignment | Bore Tolerance | Coupling Overall Length | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| MOCT19-5-A | 9.7 mm | 19.1 mm | Moct19 | 5 mm | 0.008" | -0 mm to +0.03 mm | 25.4 mm | 25.4 mm | €37.71 | |
| MOCT19-6-A | 9.7 mm | 19.1 mm | Moct19 | 6 mm | 0.008" | -0 mm to +0.03 mm | 25.4 mm | 25.4 mm | €37.71 | |
| MOCT19-8-A | 9.7 mm | 19.1 mm | Moct19 | 8 mm | 0.008" | -0 mm to +0.03 mm | 25.4 mm | 25.4 mm | €37.71 | |
| MOCT25-10-A | 11.9 mm | 25.4 mm | Moct25 | 10 mm | 0.008" | -0 mm to +0.03 mm | 31.8 mm | 31.8 mm | €51.64 | |
| MOCT25-12-A | 11.9 mm | 25.4 mm | Moct25 | 12 mm | 0.008" | -0 mm to +0.03 mm | 31.8 mm | 31.8 mm | €51.64 | |
| MOCT25-6-A | 11.9 mm | 25.4 mm | Moct25 | 6 mm | 0.008" | -0 mm to +0.03 mm | 31.8 mm | 31.8 mm | €51.64 | |
| MOCT25-8-A | 11.9 mm | 25.4 mm | Moct25 | 8 mm | 0.008" | -0 mm to +0.03 mm | 31.8 mm | 31.8 mm | €51.64 |
