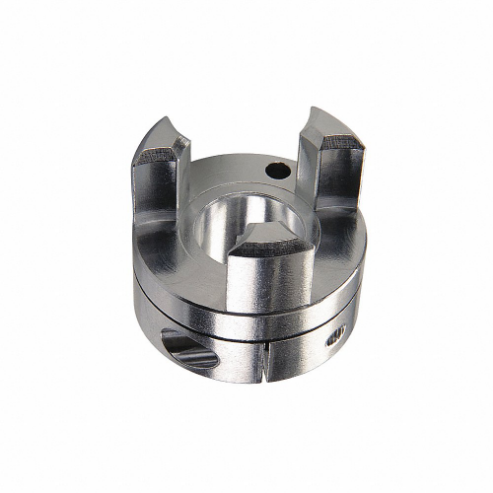

RULAND MANUFACTURING MJC57-24-A 24mm Jaw Coupling Hub, Aluminum, Clamp Style, 57.2mm OD, 28.7mm Lg.
Item: CT9HQLModel: MJC57-24-ACross Ref: 510H21
7 In Stock
57 mm
24 mm
Ships within 2 days via
10.00% off
€339.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jaw Coupling Hub |
| Bore Dia. | 24 mm |
| Bore Tolerance | 0 mm to +0.05 mm |
| Bore Type | Round Bore |
| Coupling Overall Length | 80 mm |
| Coupling Size | MJC57 |
| Fail Safe | Yes |
| Full Bearing Support Required | Yes |
| Hub Dia. | 57.2 mm |
| Hub Diameter | 57.2 mm |
| Hub Material | Aluminum |
| Hub Material Finish | Bright |
| Hub Material Grade | 2024 |
| Hub Projection | 28.7 mm |
| Included Screws | (1) Hex Socket Cap Screw |
| Jaw Profile | Curved |
| Length Through Bore | 28.7 mm |
| Max. Operating Temp. | 82°C |
| Max. Speed | 8000 RPM |
| Min. Operating Temp. | -23°C |
| Number Of Locking Screws | 1 |
| Outside Dia. | 57.2 mm |
| Overall Coupling Length | 80 mm |
| Screw Material | Alloy Steel |
| Screw Material Finish | Black Oxide |
| Screw Thread Size | M6 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.013 mm to 0 mm |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 8 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 6.35 |
| Country of Origin | US |
Product Variants
| Model | Coupling Size | Bore Dia. | Outside Dia. | Overall Coupling Length | Bore Tolerance | Length Through Bore | Hub Material Grade | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| MJC15-3-A | Mjc15 | 3 mm | 0.59" | - | 0 mm to 0.05 mm | 7.6 mm | Grade 2024 T351 | 7.6 mm | €44.32 | |
| MJC15-4-A | Mjc15 | 4 mm | 0.59" | - | 0 mm to 0.05 mm | 7.6 mm | Grade 2024 T351 | 7.6 mm | €45.58 | |
| MJC15-5-A | Mjc15 | 5 mm | 0.59" | - | 0 mm to 0.05 mm | 7.6 mm | Grade 2024 T351 | 7.6 mm | €45.58 | |
| MJC15-6-A | Mjc15 | 6 mm | 0.59" | - | 0 mm to 0.05 mm | 7.6 mm | Grade 2024 T351 | 7.6 mm | €45.58 | |
| MJC19-4-A | Mjc19 | 4 mm | - | - | 0 mm to 0.05 mm | 9.8 mm | Grade 2024 T351 | 9.8 mm | €46.67 | |
| MJC19-5-A | Mjc19 | 5 mm | - | - | 0 mm to 0.05 mm | 9.8 mm | Grade 2024 T351 | 9.8 mm | €44.39 | |
| MJC19-6-A | Mjc19 | 6 mm | - | - | 0 mm to 0.05 mm | 9.8 mm | Grade 2024 T351 | 9.8 mm | €46.67 |
