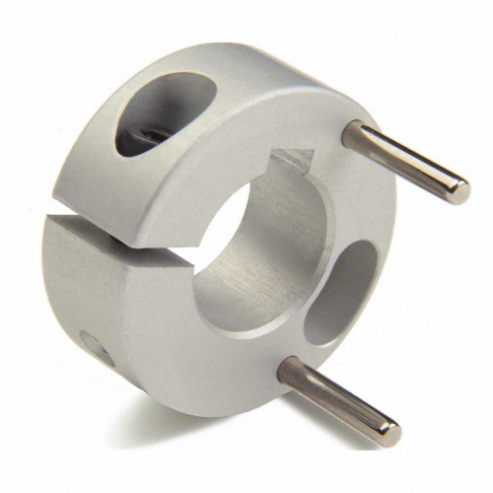

RULAND MANUFACTURING MCPRDK37-14-A Controlflex Coupling Hub, 1 Degree Angular Misalignment, 0.7 mm Axial Motion
Item: CT9HFRModel: MCPRDK37-14-ACross Ref: 805KH9
7 In Stock
37 mm
14 mm
Ships within 2 days via
10.00% off
€44.86 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hub |
| Angular Misalignment | 1° |
| Application | Encoders, Servo, Tachometers |
| Axial Motion | 0.7 mm |
| Bore Dia. | 14 mm |
| Bore Dia. Tolerance | 0.02 mm to 0.06 mm |
| Bore Diameter Tolerance | 0.06 mm to 0.02 mm |
| Bore Type | Round Bore With Keyway |
| Compatible Center Element Manufacturer Part No. | CPFRG23/37-AT |
| Coupling Outside Dia. | 37 mm |
| Coupling Overall Length | 38 mm |
| Coupling Size | MCPRD37 |
| Fastener Tightening Torque | 3 N-m |
| Features | Light Weight |
| Full Bearing Support Required | Yes |
| Hub Material | Aluminum |
| Hub Material Finish | Clear Anodized |
| Hub Material Grade | 6082 |
| Hub Type | Double Insert |
| Hub Width | 10 mm |
| Included Screws | Clamp Screw |
| Keyway Depth | 2.4 mm |
| Keyway Width | 5 mm |
| Max. Speed | 15000 RPM |
| Maximum Operating Temperature | 80°C |
| Maximum Shaft Penetration | 18.9 mm |
| Min. Operating Temp. | -30°C |
| Overall Coupling Length | 38 mm |
| Parallel Misalignment | 1 mm |
| Peak Torque | 6 N-m |
| Rated Torque | 4 N-m |
| Screw Location From Center | 12.4 mm |
| Screw Material | Alloy Steel |
| Screw Thread Size | M4 |
| Shaft Locking Type | Clamp On |
| System Of Measurement | Metric |
| Torsional Stiffness | 3.4 N-m/deg. |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 4.06 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 4.06 |
| Country of Origin | DE |
Product Variants
| Model | Rated Torque | Max. Speed | Torsional Stiffness | Coupling Size | Bore Dia. | Hub Width | Overall Coupling Length | Coupling Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| MCPRDK19-10-A | 0.6 N-m | 25000 RPM | 0.56 N-m/deg. | MCPRD19 | - | 5.6 mm | 20 mm | 20 mm | €44.31 | |
| MCPRDK19-8-A | 0.6 N-m | 25000 RPM | 0.56 N-m/deg. | MCPRD19 | 8 mm | 5.6 mm | 20 mm | 20 mm | €44.31 | |
| MCPRDK25-8-A | 1.4 N-m | 22000 RPM | 1.3 N-m/deg. | MCPRD25 | 8 mm | 9.5 mm | 31 mm | 31 mm | €39.89 | |
| MCPRDK25-12-A | 1.4 N-m | 22000 RPM | 1.3 N-m/deg. | MCPRD25 | 12 mm | 9.5 mm | 31 mm | - | €39.89 | |
| MCPRDK25-10-A | 1.4 N-m | 22000 RPM | 1.3 N-m/deg. | MCPRD25 | 10 mm | 9.5 mm | 31 mm | 31 mm | €39.89 | |
| MCPRDK37-8-A | 4 N-m | 15000 RPM | 3.4 N-m/deg. | MCPRD37 | 8 mm | 10 mm | 38 mm | 38 mm | €49.84 | |
| MCPRDK37-16-A | 4 N-m | 15000 RPM | 3.4 N-m/deg. | MCPRD37 | 16 mm | 10 mm | 38 mm | 38 mm | €49.84 |
