RULAND MANUFACTURING MCL-4E-AN 1/4 Inch International Shaft Collar, Anodized Aluminum, One-Piece Clamp Style, 18mm OD, 9mm Wd.
Item: CT9LNWModel: MCL-4E-ANCross Ref: 805DD3
7 In Stock
Ships within 2 days via
10.00% off
€27.88 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shaft Collar |
| Bore Dia. | 1/4" |
| Bore Tolerance | 0.0005" to 0.002" |
| Clearance Dia. | 22.4 mm |
| Collar Construction | 1-Piece |
| Collar Material | Aluminum |
| Collar Material Finish | Anodized |
| Collar Material Grade | Grade 2024 |
| Collar Outside Diameter | 18 mm |
| Collar Width | 9 mm |
| Construction | One Piece |
| For Shaft Dia. | 1/4" |
| For Shaft Diameter | 1/4" |
| For Shaft Type | Round |
| Grade | Grade 2024 |
| Included Screws | Clamp Screw |
| Max. Operating Temp. | 200°F |
| Min. Operating Temp. | -40°F |
| Outside Dia. | 18 mm |
| Resistance Properties | Corrosion Resistant |
| Screw Location From Center | 6.5 mm |
| Screw Material | Stainless Steel |
| Screw Material Finish | Bright |
| Screw Material Grade | Grade 18-8, 300 Series |
| Screw Seating Torque | 1.1 N-m |
| Screw Thread Size | M3 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.0005" to 0" |
| System Of Measurement | Metric With Inch Bore |
| Width Tolerance | -0.254 mm to +0.076 mm |
Shipping Info:
| Ship height (cm) | 0.89 |
| Ship length (cm) | 1.8 |
| Ship width (cm) | 1.8 |
| Country of Origin | US |
Product Variants
| Product | Model | Collar Material | Bore Dia. | Outside Dia. | Clearance Dia. | Screw Location From Center | Shaft Tolerance | For Shaft Dia. | Screw Material Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MCL-16E-P | Plastic | 1" | 45 mm | 52.1 mm | 17.5 mm | -0.0005" to 0" | 1" | Bright | €39.60 | |
|

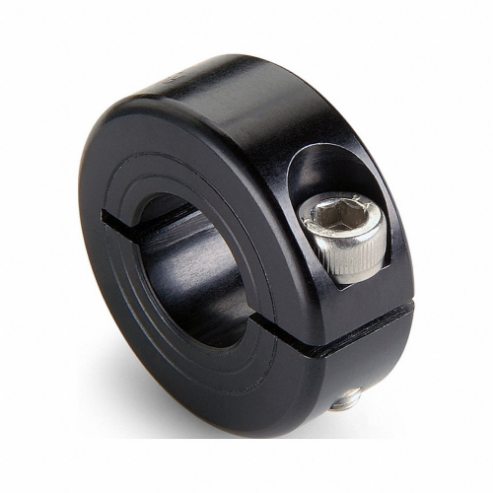

MCL-16E-AN | Aluminum | 1" | 45 mm | 52.1 mm | 17.5 mm | -0.0005" to 0" | 1" | Bright | €55.96 | |
 |

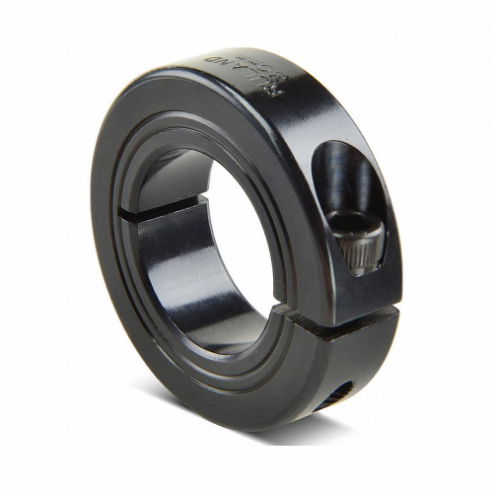

MCL-16E-F | Carbon Steel | 1" | 45 mm | 52.1 mm | 17.5 mm | -0.0005" to 0" | 1" | Black Oxide | €22.81 | |
 |

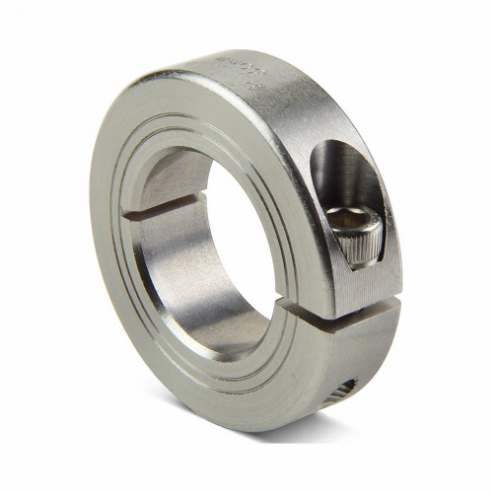

MCL-16E-TI | Titanium | 1" | 45 mm | 52.1 mm | 17.5 mm | -0.0005" to 0" | 1" | Bright | €1,107.92 | |
|
MCL-8E-F | Carbon Steel | 1/2" | 30 mm | 33.7 mm | 11 mm | -0.0005" to 0" | 1/2" | Black Oxide | €16.54 | |
|
MCL-8E-AN | Aluminum | 1/2" | 30 mm | 33.7 mm | 11 mm | -0.0005" to 0" | 1/2" | Bright | €35.93 | |
|
MCL-8E-P | Plastic | 1/2" | 30 mm | 33.7 mm | 11 mm | -0.0005" to 0" | 1/2" | Bright | €26.49 |
