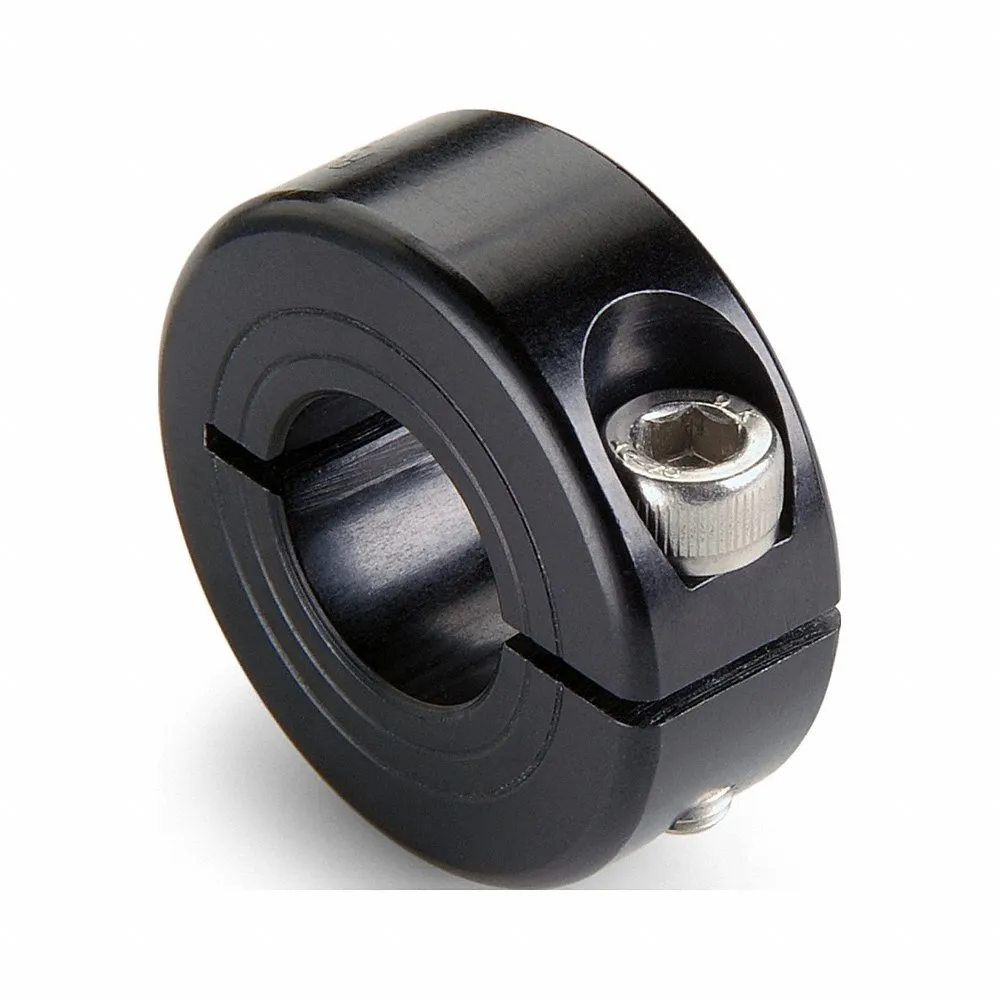

RULAND MANUFACTURING MCL-17E-AN Shaft Collar, 1 Piece, Metric With Inch Bore, Round, Clamp On, 15 mm Collar Wide
Item: CT9LQBModel: MCL-17E-ANCross Ref: 805CV8
7 In Stock
Ships within 2 days via
10.00% off
€66.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shaft Collar |
| Bore Dia. | 1.062" |
| Bore Diameter | 1 1/16" |
| Bore Tolerance | 0.0005" to 0.002" |
| Clearance Dia. | 54.7 mm |
| Collar Construction | 1-Piece |
| Collar Material | Aluminum |
| Collar Material Finish | Anodized |
| Collar Material Grade | Grade 2024 |
| Collar Outside Diameter | 48 mm |
| Collar Width | 15 mm |
| Construction | One Piece |
| For Shaft Dia. | 1.062" |
| For Shaft Diameter | 1 1/16" |
| For Shaft Type | Round |
| Grade | Grade 2024 |
| Included Screws | Clamp Screw |
| Max. Operating Temp. | 200°F |
| Min. Operating Temp. | -40°F |
| Outside Dia. | 48 mm |
| Resistance Properties | Corrosion Resistant |
| Screw Location From Center | 19 mm |
| Screw Material | Stainless Steel |
| Screw Material Finish | Bright |
| Screw Material Grade | Grade 18-8, 300 Series |
| Screw Seating Torque | 9.6 N-m |
| Screw Thread Size | M6 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.0005" to 0" |
| System Of Measurement | Metric With Inch Bore |
| Width Tolerance | -0.254 mm to +0.076 mm |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Outside Dia. | Collar Material | Bore Dia. | Screw Material | Clearance Dia. | For Shaft Dia. | Screw Location From Center | Bore Tolerance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MCL-16E-FZ | 45 mm | Carbon Steel | 1" | Alloy Steel | 52.1 mm | 1" | 17.5 mm | 0.0005" to 0.002" | €34.36 | |
|
MCL-8E-FZ | 30 mm | Carbon Steel | 1/2" | Alloy Steel | 33.7 mm | 1/2" | 11 mm | 0.0005" to 0.002" | €22.34 | |
|
MCL-4E-FZ | 18 mm | Carbon Steel | 1/4" | Alloy Steel | 22.4 mm | 1/4" | 6.5 mm | 0.0005" to 0.002" | €17.53 | |
 |
MCL-11E-ST | 36 mm | Stainless Steel | 0.688" | Stainless Steel | 41.1 mm | 0.688" | 13.49 mm | 0.0005" to 0.002" | €137.51 | |
 |
MCL-11E-SS | 36 mm | Stainless Steel | 0.688" | Stainless Steel | 41.1 mm | 0.688" | 13.49 mm | 0.0005" to 0.002" | €46.96 | |
 |
MCL-11E-AN | 36 mm | Aluminum | 0.688" | Stainless Steel | 41.1 mm | 0.688" | 13.49 mm | 0.0005" to 0.002" | €44.31 | |
 |
MCL-18E-P | 48 mm | Plastic | 1 1/8" | Stainless Steel | 54.7 mm | 1 1/8" | 19 mm | 0.0005" to 0.002" | €55.54 |
