RULAND MANUFACTURING One Piece Shaft Collars
Filter
A
B
C
D
E
F
G
H
I
J| Style | Model | Outside Dia. | Collar Material | Bore Dia. | Screw Material | Clearance Dia. | For Shaft Dia. | Screw Location From Center | Bore Tolerance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | MCL-7-P | 18 mm | Plastic | 7 mm | Stainless Steel | 22.4 mm | 7 mm | 6.5 mm | 0.012 mm to 0.5 mm | €17.72 | |
| B | MCL-4E-FZ | 18 mm | Carbon Steel | 1/4" | Alloy Steel | 22.4 mm | 1/4" | 6.5 mm | 0.0005" to 0.002" | €17.53 | |
| B | MCL-5E-FZ | 18 mm | Carbon Steel | 0.312" | Alloy Steel | 22.4 mm | 0.312" | 6.5 mm | 0.0005" to 0.002" | €17.53 | |
| B | MCL-6E-FZ | 24 mm | Carbon Steel | 3/8" | Alloy Steel | 26.3 mm | 3/8" | 8.51 mm | 0.0005" to 0.002" | €18.71 | |
| B | MCL-7E-FZ | 28 mm | Carbon Steel | 0.438" | Alloy Steel | 32 mm | 0.438" | 10.01 mm | 0.0005" to 0.002" | €19.94 | |
| C | MCL-7E-P | 28 mm | Plastic | 0.438" | Stainless Steel | 32 mm | 0.438" | 10.01 mm | 0.0005" to 0.002" | €22.91 | |
| B | MCL-8E-FZ | 30 mm | Carbon Steel | 1/2" | Alloy Steel | 33.7 mm | 1/2" | 11 mm | 0.0005" to 0.002" | €22.34 | |
| C | MCL-9E-P | 34 mm | Plastic | 0.562" | Stainless Steel | 39.3 mm | 0.562" | 12.5 mm | 0.0005" to 0.002" | €26.77 | |
| D | MCL-9E-AN | 34 mm | Aluminum | 0.562" | Stainless Steel | 39.3 mm | 0.562" | 12.5 mm | 0.0005" to 0.002" | €40.20 | |
| E | MCL-9E-ST | 34 mm | Stainless Steel | 0.562" | Stainless Steel | 39.3 mm | 0.562" | 12.5 mm | 0.0005" to 0.002" | €117.48 | |
| B | MCL-9E-FZ | 34 mm | Carbon Steel | 0.562" | Alloy Steel | 39.3 mm | 0.562" | 12.5 mm | 0.0005" to 0.002" | €22.17 | |
| F | MCL-9E-F | 34 mm | Carbon Steel | 0.562" | Alloy Steel | 39.3 mm | 0.562" | 12.5 mm | 0.0005" to 0.002" | €15.37 | |
| E | MCL-9E-SS | 34 mm | Stainless Steel | 0.562" | Stainless Steel | 39.3 mm | 0.562" | 12.5 mm | 0.0005" to 0.002" | €42.61 | |
| B | MCL-10E-FZ | 34 mm | Carbon Steel | 5/8" | Alloy Steel | 39.3 mm | 5/8" | 12.5 mm | 0.0005" to 0.002" | €22.17 | |
| D | MCL-11E-AN | 36 mm | Aluminum | 0.688" | Stainless Steel | 41.1 mm | 0.688" | 13.49 mm | 0.0005" to 0.002" | €44.31 | |
| C | MCL-11E-P | 36 mm | Plastic | 0.438" | Stainless Steel | 41.1 mm | 0.438" | 13.49 mm | 0.0005" to 0.002" | €37.66 | |
| B | MCL-11E-FZ | 36 mm | Carbon Steel | 0.438" | Alloy Steel | 41.1 mm | 0.438" | 13.49 mm | 0.0005" to 0.002" | €24.65 | |
| G | MCL-11E-SS | 36 mm | Stainless Steel | 0.688" | Stainless Steel | 41.1 mm | 0.688" | 13.49 mm | 0.0005" to 0.002" | €46.96 | |
| E | MCL-11E-ST | 36 mm | Stainless Steel | 0.688" | Stainless Steel | 41.1 mm | 0.688" | 13.49 mm | 0.0005" to 0.002" | €137.51 | |
| F | MCL-11E-F | 36 mm | Carbon Steel | 0.438" | Alloy Steel | 41.1 mm | 0.438" | 13.49 mm | 0.0005" to 0.002" | €17.72 | |
| B | MCL-12E-FZ | 40 mm | Carbon Steel | 3/4" | Alloy Steel | 47.4 mm | 3/4" | 14.73 mm | 0.0005" to 0.002" | €26.83 | |
| B | MCL-14E-FZ | 42 mm | Carbon Steel | 7/8" | Alloy Steel | 49.5 mm | 7/8" | 16 mm | 0.0005" to 0.002" | €34.55 | |
| C | MCL-13E-P | 42 mm | Plastic | 0.812" | Stainless Steel | 49.5 mm | 0.812" | 16 mm | 0.0005" to 0.002" | €37.58 | |
| E | MCL-13E-ST | 42 mm | Stainless Steel | 0.812" | Stainless Steel | 49.5 mm | 0.812" | 16 mm | 0.0005" to 0.002" | €142.99 | |
| E | MCL-13E-SS | 42 mm | Stainless Steel | 0.812" | Stainless Steel | 49.5 mm | 0.812" | 16 mm | 0.0005" to 0.002" | €62.66 | |
| D | MCL-13E-AN | 42 mm | Aluminum | 0.812" | Stainless Steel | 49.5 mm | 0.812" | 16 mm | 0.0005" to 0.002" | €51.77 | |
| B | MCL-13E-FZ | 42 mm | Carbon Steel | 0.812" | Alloy Steel | 49.5 mm | 0.812" | 16 mm | 0.0005" to 0.002" | €34.55 | |
| F | MCL-13E-F | 42 mm | Carbon Steel | 0.812" | Alloy Steel | 49.5 mm | 0.812" | 16 mm | 0.0005" to 0.002" | €21.64 | |
| B | MCL-16E-FZ | 45 mm | Carbon Steel | 1" | Alloy Steel | 52.1 mm | 1" | 17.5 mm | 0.0005" to 0.002" | €34.36 | |
| B | MCL-15E-FZ | 45 mm | Carbon Steel | 0.938" | Alloy Steel | 52.1 mm | 0.938" | 17.5 mm | 0.0005" to 0.002" | €37.72 | |
| C | MCL-18E-P | 48 mm | Plastic | 1 1/8" | Stainless Steel | 54.7 mm | 1 1/8" | 19 mm | 0.0005" to 0.002" | €55.54 | |

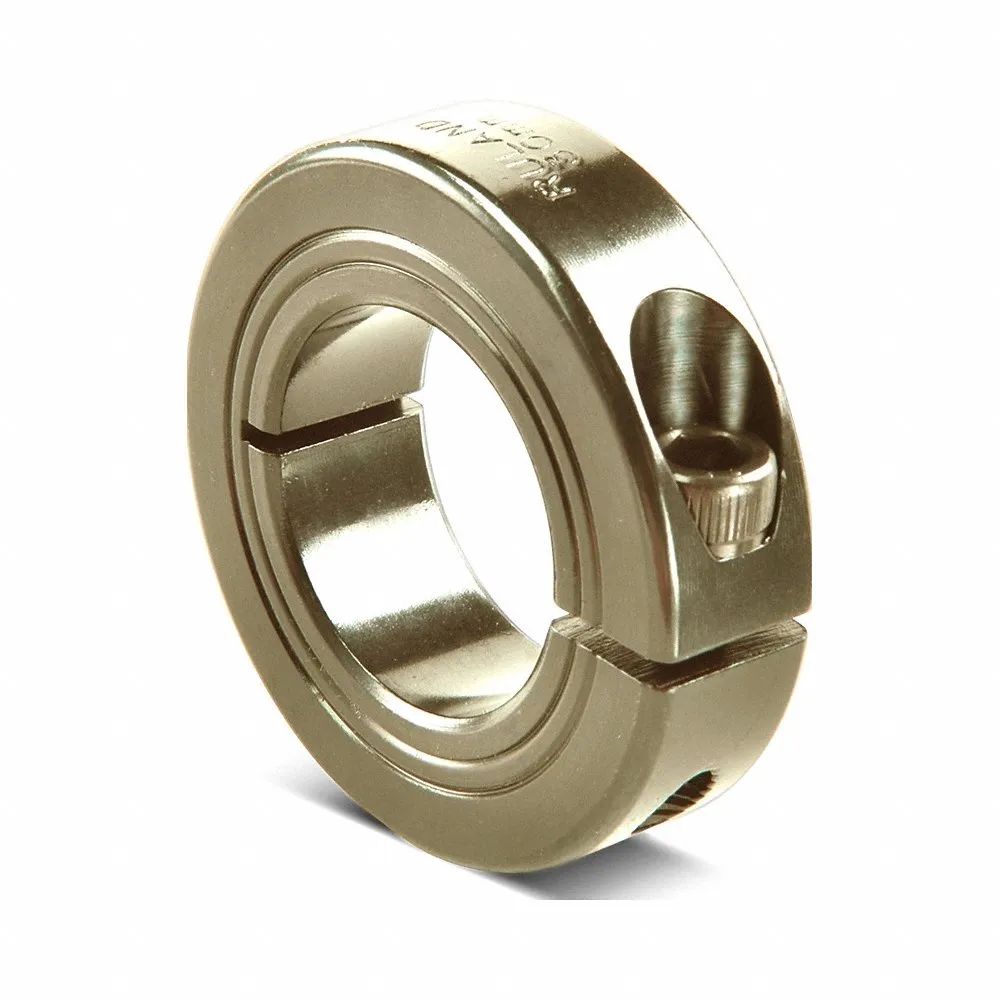

| H | MCL-18E-FZ | 48 mm | Carbon Steel | 1 1/8" | Alloy Steel | 54.7 mm | 1 1/8" | 19 mm | 0.0005" to 0.002" | €40.30 | |
| C | MCL-17E-P | 48 mm | Plastic | 1.062" | Stainless Steel | 54.7 mm | 1.062" | 19 mm | 0.0005" to 0.002" | €55.54 | |

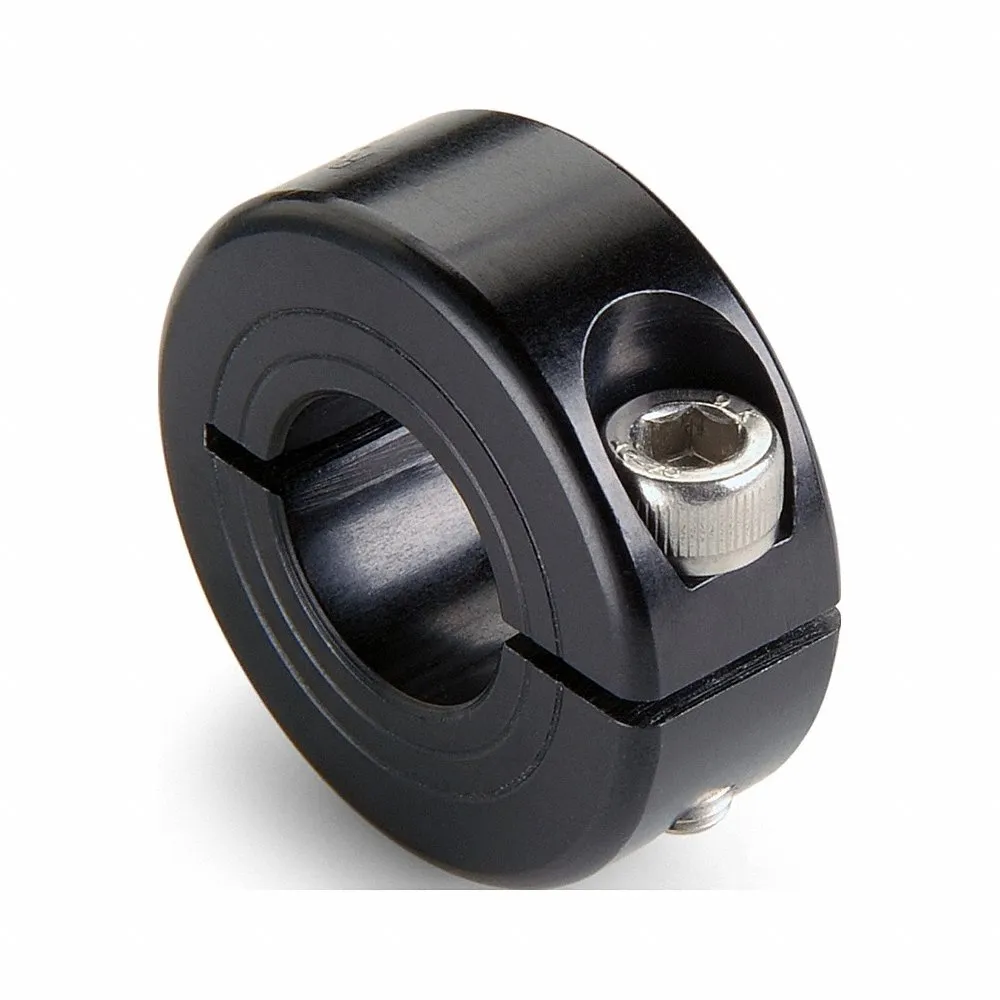

| I | MCL-17E-AN | 48 mm | Aluminum | 1.062" | Stainless Steel | 54.7 mm | 1.062" | 19 mm | 0.0005" to 0.002" | €74.44 | |
| B | MCL-17E-FZ | 48 mm | Carbon Steel | 1.062" | Alloy Steel | 54.7 mm | 1.062" | 19 mm | 0.0005" to 0.002" | €40.30 | |
| F | MCL-17E-F | 48 mm | Carbon Steel | 1.062" | Alloy Steel | 54.7 mm | 1.062" | 19 mm | 0.0005" to 0.002" | €27.02 | |
| G | MCL-17E-ST | 48 mm | Stainless Steel | 1.062" | Stainless Steel | 54.7 mm | 1.062" | 19 mm | 0.0005" to 0.002" | €186.87 | |
| E | MCL-17E-SS | 48 mm | Stainless Steel | 1.062" | Stainless Steel | 54.7 mm | 1.062" | 19 mm | 0.0005" to 0.002" | €80.05 | |
| E | MCL-19E-ST | 54 mm | Stainless Steel | 1.062" | Stainless Steel | 59.2 mm | 1.062" | 21.49 mm | 0.0005" to 0.002" | €217.61 | |
| D | MCL-19E-AN | 54 mm | Aluminum | 1.062" | Stainless Steel | 59.2 mm | 1.062" | 21.49 mm | 0.0005" to 0.002" | €80.62 | |
| B | MCL-19E-FZ | 54 mm | Carbon Steel | 1.062" | Alloy Steel | 59.2 mm | 1.062" | 21.49 mm | 0.0005" to 0.002" | €42.61 | |
| B | MCL-20E-FZ | 54 mm | Carbon Steel | 1 1/4" | Alloy Steel | 59.2 mm | 1 1/4" | 21.49 mm | 0.0005" to 0.002" | €42.05 | |
| E | MCL-19E-SS | 54 mm | - | 1.062" | Stainless Steel | 59.2 mm | 1.062" | 21.49 mm | 0.0005" to 0.002" | €81.51 | |

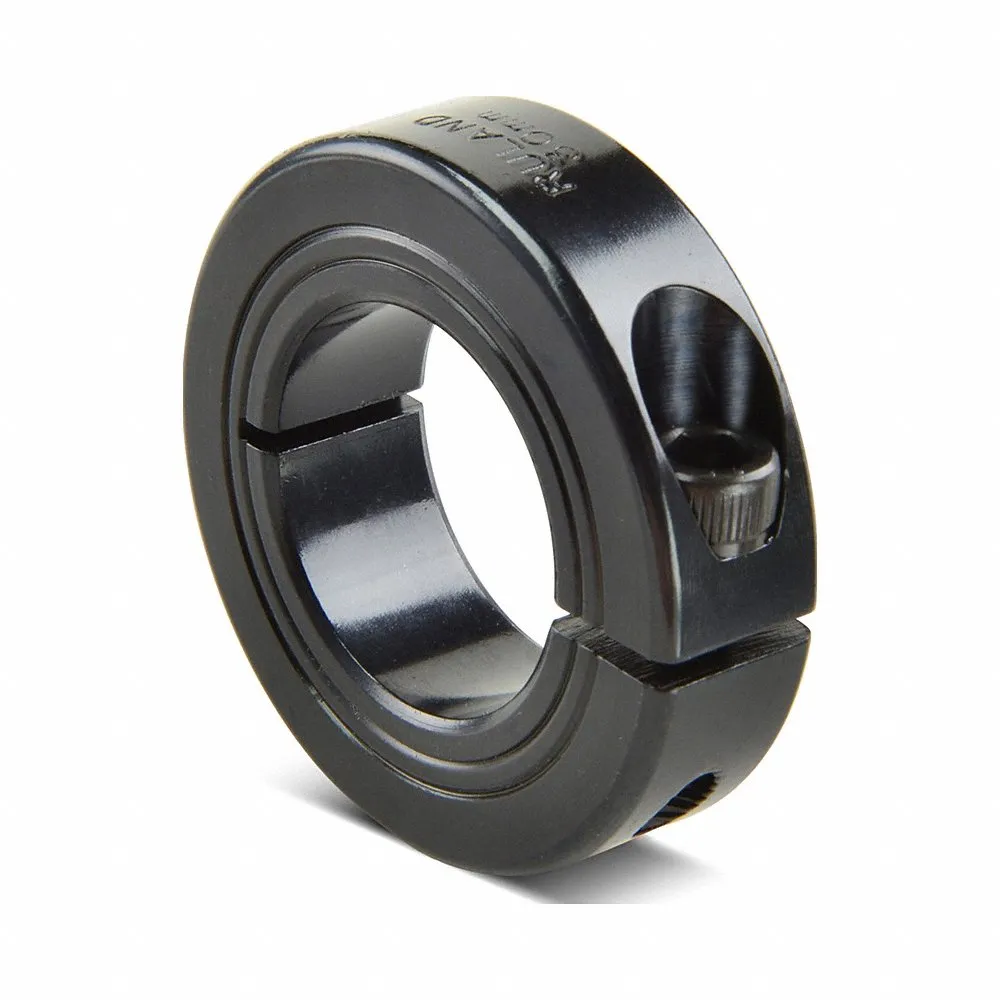

| J | MCL-19E-F | 54 mm | Carbon Steel | 1.062" | Alloy Steel | 59.2 mm | 1.062" | 21.49 mm | 0.0005" to 0.002" | €29.18 | |
| C | MCL-19E-P | 54 mm | Plastic | 1.062" | Stainless Steel | 59.2 mm | 1.062" | 21.49 mm | 0.0005" to 0.002" | €59.30 | |
| B | MCL-21E-FZ | 57 mm | Carbon Steel | 1.312" | Alloy Steel | 62.4 mm | 1.312" | 23.24 mm | 0.0005" to 0.002" | €43.23 | |
| E | MCL-21E-ST | 57 mm | Stainless Steel | 1.312" | Stainless Steel | 62.4 mm | 1.312" | 23.24 mm | 0.0005" to 0.002" | €31.39 | |
| D | MCL-21E-AN | 57 mm | Aluminum | 1.312" | Stainless Steel | 62.4 mm | 1.312" | 23.24 mm | 0.0005" to 0.002" | €88.01 | |
| B | MCL-22E-FZ | 57 mm | Carbon Steel | 1 3/8" | Alloy Steel | 62.4 mm | 1 3/8" | 23.24 mm | 0.0005" to 0.002" | €50.10 | |
| E | MCL-21E-SS | 57 mm | Stainless Steel | 1.312" | Stainless Steel | 62.4 mm | 1.312" | 23.24 mm | 0.0005" to 0.002" | €91.51 | |
| F | MCL-21E-F | 57 mm | Carbon Steel | 1.312" | Alloy Steel | 62.4 mm | 1.312" | 23.24 mm | 0.0005" to 0.002" | €29.74 | |
| B | MCL-23E-FZ | 60 mm | Carbon Steel | 1.438" | Alloy Steel | 65.6 mm | 1.438" | 24.99 mm | 0.0005" to 0.002" | €50.63 | |
| B | MCL-25E-FZ | 60 mm | Carbon Steel | 1.562" | Alloy Steel | 65.6 mm | 1.562" | 24.99 mm | 0.0005" to 0.002" | €50.02 | |
| F | MCL-25E-F | 60 mm | Carbon Steel | 1.562" | Alloy Steel | 65.6 mm | 1.562" | 24.99 mm | 0.0005" to 0.002" | €36.07 | |
| E | MCL-25E-ST | 60 mm | Stainless Steel | 1.562" | Stainless Steel | 65.6 mm | 1.562" | 24.99 mm | 0.0005" to 0.002" | €259.57 | |
| D | MCL-25E-AN | 60 mm | Aluminum | 1.562" | Stainless Steel | 65.6 mm | 1.562" | 24.99 mm | 0.0005" to 0.002" | €90.42 | |
| E | MCL-25E-SS | 60 mm | Stainless Steel | 1.562" | Stainless Steel | 65.6 mm | 1.562" | 24.99 mm | 0.0005" to 0.002" | €131.11 | |
| E | MCL-27E-SS | 73 mm | Stainless Steel | 1.688" | Stainless Steel | 80.1 mm | 1.688" | 29.49 mm | 0.0005" to 0.002" | €255.42 | |
| J | MCL-27E-F | 73 mm | Carbon Steel | 1.688" | Alloy Steel | 80.1 mm | 1.688" | 29.49 mm | 0.0005" to 0.002" | €69.96 | |
| E | MCL-29E-SS | 73 mm | Stainless Steel | 1.812" | Stainless Steel | 80.1 mm | 1.812" | 29.49 mm | 0.0005" to 0.002" | €235.72 | |
| B | MCL-28E-FZ | 73 mm | Carbon Steel | 1 3/4" | Alloy Steel | 80.1 mm | 1 3/4" | 29.49 mm | 0.0005" to 0.002" | €72.79 |
