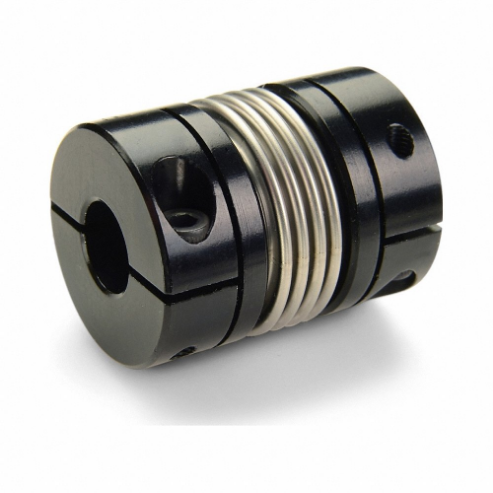

RULAND MANUFACTURING MBC80-45-45-A 45mm x 45mm Bellows Coupling, High Stiffness, Aluminum, 79.4mm, OD 96.9mm Lg.
Item: CT9FZFModel: MBC80-45-45-ACross Ref: 805MA3
7 In Stock
45 mm x 45 mm
Ships within 2 days via
10.00% off
€600.89 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Coupling |
| Angular Misalignment | 2° |
| Application | Encoders, Stepper / Servo |
| Axial Motion | 0.76 mm |
| Bellows Material | Stainless Steel |
| Bellows Material Grade | Grade 321 |
| Bore Dia. 1 | 45 mm |
| Bore Dia. 2 | 45 mm |
| Bore Tolerance | 0 mm to 0.03 mm |
| Bore Type | Round |
| Coupling Outside Dia. | 79.4 mm |
| Different Bore Sizes | No |
| Dynamic Torque Non-reversing | 76 N-m |
| Dynamic Torque Reversing | 38 N-m |
| Fastener Tightening Torque | 39 N-m |
| Features | Balanced Design For High RPM, Constant Velocity, High Torque With Low Inertia, High Torsional Stiffness, Long Life With No Maintenance |
| For Misalignment Type | Angular, Axial, Parallel |
| Full Bearing Support Required | Yes |
| Hub Length | 34.93 mm |
| Hub Material | Aluminum |
| Hub Material Finish | Sulfuric Anodized |
| Hub Material Grade | 2024 |
| Included Screws | (2) Hex Cap Screw |
| Length Through Bore 1 | 44.5 mm |
| Length Through Bore 2 | 44.5 mm |
| Max. Operating Temp. | 93°C |
| Max. Speed | 10000 RPM |
| Min. Operating Temp. | -40°C |
| Moment Of Inertia | 0.0007654 kgf/sq. m |
| Number Of Locking Screws | 2 |
| Overall Length | 96.9 mm |
| Parallel Misalignment | 0.3 mm |
| Rated Torque | 152 N-m |
| Screw Length | 25 mm |
| Screw Material | Alloy Steel |
| Screw Material Finish | Black Oxide |
| Screw Thread Size | M8 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.013 mm to 0 mm |
| System Of Measurement | Metric |
| Torsional Stiffness | 395.5 N-m/deg. |
| Zero Backlash | Yes |
Shipping Info:
| Ship weight (kg) | 0.71 |
| Ship height (cm) | 7.94 |
| Ship length (cm) | 9.67 |
| Ship width (cm) | 9.67 |
| Country of Origin | US |
Product Variants
| Model | Torsional Stiffness | Axial Motion | Parallel Misalignment | Overall Length | Different Bore Sizes | Rated Torque | Bore Dia. 1 | Coupling Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| MBC15-5-4-A | 8 N-m/deg. | 0.2 mm | 0.1 mm | 27.2 mm | Yes | 2.5 N-m | - | - | €268.95 | |
| MBC15-5-5-A | 8 N-m/deg. | 0.2 mm | 0.1 mm | 27.2 mm | No | 2.5 N-m | - | - | €267.46 | |
| MBC15-6-4-A | 8 N-m/deg. | 0.2 mm | 0.1 mm | 27.2 mm | Yes | 2.5 N-m | - | - | €268.95 | |
| MBC41-16-12-A | 63 N-m/deg. | 0.5 mm | 0.25 mm | 50.8 mm | Yes | 28 N-m | - | - | €336.17 | |
| MBC41-16-15-A | 63 N-m/deg. | 0.5 mm | 0.25 mm | 50.8 mm | Yes | 28 N-m | - | - | €322.85 | |
| MBC41-16-16-A | 63 N-m/deg. | 0.5 mm | 0.25 mm | 50.8 mm | No | 28 N-m | - | - | €336.17 | |
| MBC41-20-15-A | - | - | - | 51 mm | - | - | - | - | €322.85 |
