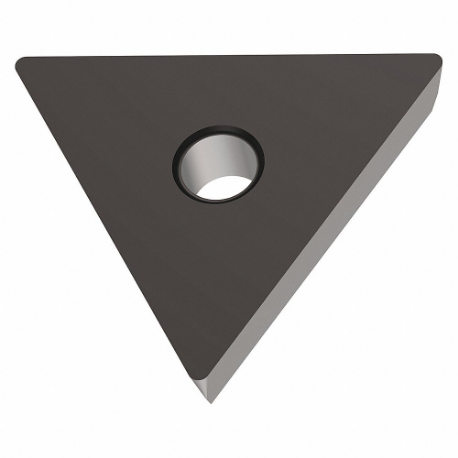

WALTER TOOLS TPGN160308 WS10 Triangle Turning Insert, 3/8 Inch Inscribed Circle, Neutral, Gn Chip-Breaker
Get it by Thursday, Dec 18
This product can only be shipped in multiples of 10
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Turning Insert |
| Ansi Code | TPGN322 |
| Chip-breaker | Yes |
| Chip-breaker Code | GN |
| Clearance Angle | 11° |
| Corner Radius | 0.031" |
| Cutting Direction | Neutral |
| Cutting Edge Length | 16.5 mm |
| Finish | Bright, Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Included Angle | 60° |
| Inscribed Circle | 3/8" |
| Insert Code | 322 |
| Iso Number | TPGN160308 |
| Manufacturer Grade | Ws10 |
| Measurement System | Fractional Inch |
| Primary Material Application | High Temperature Alloy |
| Primary Material Application Iso Code | S |
| Rake | Positive |
| Shape | Triangle |
| System Of Measurement | Imperial |
| Thickness | 1/8" |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Cutting Direction | Insert Code | Inscribed Circle | Clearance Angle | Thickness | Corner Radius | Chip-breaker Code | Insert Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
WCGT020104-FN2 WNN10 | - | - | - | - | - | - | - | - | €31.68 | |
|
WCGT020102-FN2 WNN10 | - | - | - | - | - | - | - | - | €32.51 | |
 |
WNMG080412-MU5 WMP20S | - | - | - | - | - | - | - | - | €34.68 | |
 |
WNGA080408TM-3 WBH10 | - | - | - | - | - | - | - | - | €248.20 | |
 |
WNMG080404-MS3 WSM10S | - | - | - | - | - | - | - | - | €34.06 | |
 |
WNMG080408-NRS WSM01 | - | - | - | - | - | - | - | - | €34.88 | |
|
WNMG080412-MU5 WPP10S | - | - | - | - | - | - | - | - | - | RFQ
|
