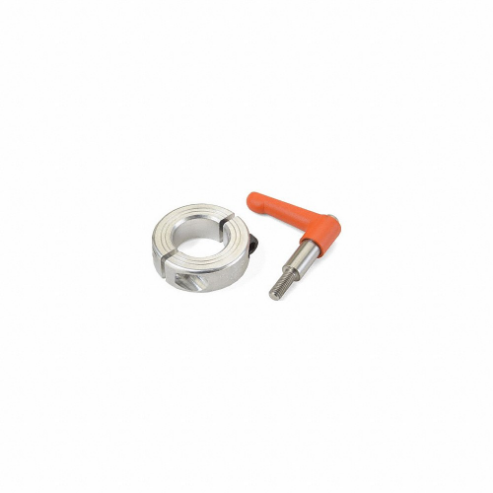

RULAND MANUFACTURING LVO-MSP-35-A Quick Clamping Shaft Collar, 35 mm Bore Dia, Round, Aluminum, Orange
Item: CT9LCTModel: LVO-MSP-35-ACross Ref: 805LF2
7 In Stock
35 mm
Aluminum
Bright
Ships within 2 days via
10.00% off
€127.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shaft Collar |
| Bore Dia. | 35 mm |
| Bore Tolerance | 0.012 mm to 0.5 mm |
| Bore Type | Round |
| Center To Lever Top | 40.8 mm |
| Collar Construction | 2-Piece |
| Collar Material | Aluminum |
| Collar Material Finish | Bright |
| Collar Material Grade | Grade 2024 |
| Collar Outside Diameter | 57 mm |
| Collar Width | 15 mm |
| Construction | Two Piece |
| For Shaft Dia. | 35 mm |
| For Shaft Diameter | 35 mm |
| For Shaft Type | Round |
| Grade | Grade 2024 |
| Handle Color | Orange |
| Handle Material | Zinc |
| Handle Material Finish | Powder Coated |
| Lever Height | 40.5 mm |
| Lever Length | 45 mm |
| Lever Part Number | LF45-CL-M6: 20-ZS-O |
| Outside Dia. | 57 mm |
| Screw Location From Center | 23.24 mm |
| Screw Material | Stainless Steel |
| Screw Material Grade | Grade 303 |
| Screw Seating Torque | 16 N-m |
| Screw Thread Size | M6 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.013 mm to 0 mm |
| System Of Measurement | Metric |
| Width Tolerance | -0.254 mm to +0.076 mm |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 5.7 |
| Ship length (cm) | 1.5 |
| Ship width (cm) | 1.5 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Collar Material | Shaft Tolerance | Handle Color | Lever Length | For Shaft Dia. | Screw Location From Center | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LVO-MSP-24E-F | 60 mm | 1 1/2" | Carbon Steel | -0.0005" to 0" | Orange | 45 mm | 1 1/2" | 24.99 mm | €133.32 | |
 |
LV-MSP-24E-SS | 60 mm | 1 1/2" | Stainless Steel | -0.0005" to 0" | Black | 45 mm | 1 1/2" | 24.99 mm | €246.70 | |
 |
LVO-MSP-24E-SS | 60 mm | 1 1/2" | Stainless Steel | -0.0005" to 0" | Orange | 45 mm | 1 1/2" | 24.99 mm | €246.70 | |
 |
LV-MSP-24E-AN | 60 mm | 1 1/2" | - | -0.0005" to 0" | Black | 45 mm | 1 1/2" | 24.99 mm | €194.08 | |
 |
LVO-MSP-24E-AN | 60 mm | 1 1/2" | Aluminum | -0.0005" to 0" | Orange | 45 mm | 1 1/2" | 24.99 mm | €194.08 | |
 |
LV-MSP-20E-F | 54 mm | 1 1/4" | Carbon Steel | -0.0005" to 0" | Black | 45 mm | 1 1/4" | 21.49 mm | €123.61 | |
|
LV-MSP-20E-SS | 54 mm | - | Stainless Steel | -0.0005" to 0" | Black | 45 mm | 1 1/4" | 21.49 mm | €190.37 |
