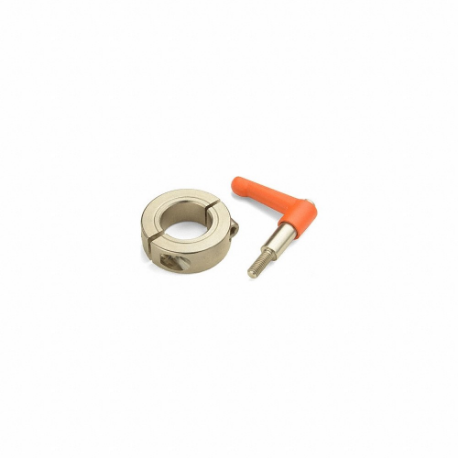

RULAND MANUFACTURING LVO-MSP-15-ST Quick Clamping Shaft Collar, 15 mm Bore Dia, Round, Stainless Steel
Item: CT9KFXModel: LVO-MSP-15-STCross Ref: 805L36
7 In Stock
Ships within 2 days via
10.00% off
€204.45 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shaft Collar |
| Bore Dia. | 15 mm |
| Bore Tolerance | 0.012 mm to 0.05 mm |
| Bore Type | Round |
| Center To Lever Top | 35.2 mm |
| Collar Material | Stainless Steel |
| Collar Material Finish | Bright |
| Collar Width | 13 mm |
| Construction | Two Piece |
| For Shaft Dia. | 15 mm |
| For Shaft Type | Round |
| Handle Color | Orange |
| Handle Material | Zinc |
| Handle Material Finish | Powder Coated |
| Lever Length | 30 mm |
| Outside Dia. | 34 mm |
| Resistance Properties | Corrosion Resistant |
| Screw Location From Center | 12.5 mm |
| Screw Material | Stainless Steel |
| Screw Material Grade | Grade 303 |
| Screw Thread Size | M5 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.013 mm to 0 mm |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Collar Material | Bore Dia. | Outside Dia. | For Shaft Dia. | Center To Lever Top | Handle Color | Lever Length | Collar Material Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LV-MSP-11-FZ | Carbon Steel | 11 mm | 28 mm | 11 mm | 32.2 mm | Black | 30 mm | Zinc Plated | €108.34 | |
 |
LV-MCL-11-FZ | Carbon Steel | 11 mm | 28 mm | 11 mm | 32.2 mm | Black | 30 mm | Zinc Plated | €98.15 | |
 |
LVO-MCL-11-FZ | Carbon Steel | 11 mm | 28 mm | 11 mm | 32.2 mm | Orange | 30 mm | Zinc Plated | €98.15 | |
 |
LVO-MSP-11-FZ | Carbon Steel | 11 mm | 28 mm | 11 mm | 32.2 mm | Orange | 30 mm | - | €108.34 | |
|
LV-MCL-12-FZ | Carbon Steel | 12 mm | 28 mm | 12 mm | 32.2 mm | Black | 30 mm | Zinc Plated | €98.15 | |
|
LV-MSP-12-FZ | Carbon Steel | 12 mm | 28 mm | 12 mm | 32.2 mm | Black | 30 mm | Zinc Plated | €107.06 | |
|
LVO-MCL-12-FZ | Carbon Steel | 12 mm | 28 mm | 12 mm | 32.2 mm | Orange | 30 mm | Zinc Plated | €98.15 |
