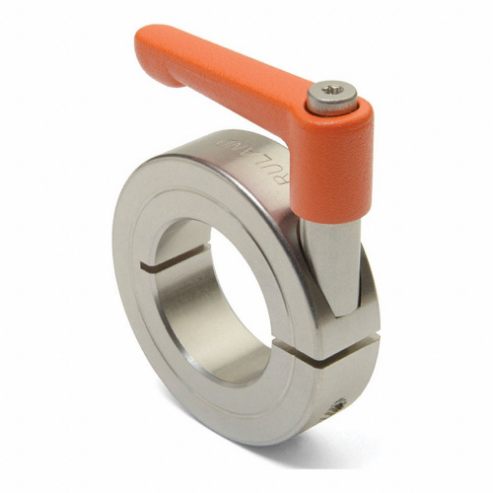

RULAND MANUFACTURING LVO-MCL-40-ST Quick Clamping Shaft Collar, 40 mm Bore Dia, Round, Stainless Steel, Zinc
Item: CT9LFEModel: LVO-MCL-40-STCross Ref: 805KY1
7 In Stock
Ships within 2 days via
10.00% off
€295.34 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shaft Collar |
| Bore Dia. | 40 mm |
| Bore Tolerance | 0.012 mm to 0.5 mm |
| Bore Type | Round |
| Center To Lever Top | 40.8 mm |
| Collar Construction | 1-Piece |
| Collar Material | Stainless Steel |
| Collar Material Finish | Bright |
| Collar Material Grade | Grade 316 |
| Collar Outside Diameter | 60 mm |
| Collar Width | 15 mm |
| Construction | One Piece |
| For Shaft Dia. | 40 mm |
| For Shaft Diameter | 40 mm |
| For Shaft Type | Round |
| Handle Color | Orange |
| Handle Material | Zinc |
| Handle Material Finish | Powder Coated |
| Lever Height | 40.5 mm |
| Lever Length | 45 mm |
| Lever Part Number | LF45-CL-M6: 20-ZS-O |
| Outside Dia. | 60 mm |
| Resistance Properties | Corrosion Resistant |
| Screw Location From Center | 24.99 mm |
| Screw Material | Stainless Steel |
| Screw Material Grade | Grade 303 |
| Screw Seating Torque | 9.6 N-m |
| Screw Thread Size | M6 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.013 mm to 0 mm |
| System Of Measurement | Metric |
| Width Tolerance | -0.254 mm to +0.076 mm |
Shipping Info:
| Ship weight (kg) | 0.22 |
| Ship height (cm) | 6 |
| Ship length (cm) | 1.5 |
| Ship width (cm) | 1.5 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Collar Material | Screw Location From Center | Lever Height | Shaft Tolerance | Handle Color | Lever Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LV-MCL-24E-F | 60 mm | 1 1/2" | Carbon Steel | 24.99 mm | 40.5 mm | -0.0005" to 0" | Black | 45 mm | €124.04 | |
 |
LVO-MCL-24E-F | 60 mm | 1 1/2" | Carbon Steel | 24.99 mm | 40.5 mm | -0.0005" to 0" | Orange | 45 mm | €124.04 | |
 |
LVO-MCL-24E-SS | 60 mm | 1 1/2" | Stainless Steel | 24.99 mm | 40.5 mm | -0.0005" to 0" | Orange | 45 mm | €228.69 | |
 |
LV-MCL-24E-SS | 60 mm | 1 1/2" | Stainless Steel | 24.99 mm | 40.5 mm | -0.0005" to 0" | Black | 45 mm | €228.69 | |
 |
LV-MCL-24E-AN | 60 mm | 1 1/2" | Aluminum | 24.99 mm | 40.5 mm | -0.0005" to 0" | Black | 45 mm | €176.74 | |
 |
LVO-MCL-24E-AN | 60 mm | 1 1/2" | Aluminum | 24.99 mm | 40.5 mm | -0.0005" to 0" | Orange | 45 mm | €176.74 | |
|
LV-MCL-20E-F | 54 mm | 1 1/4" | Carbon Steel | 21.49 mm | 40.5 mm | -0.0005" to 0" | Black | 45 mm | €116.39 |
