RULAND MANUFACTURING JCC50-22-A Jaw Coupling Hub, JC50 Coupling Size, 3 1/8 Inch Outside Dia, Aluminum
Item: CT9HRDModel: JCC50-22-ACross Ref: 805LY0
7 In Stock
Ships within 2 days via
10.00% off
€323.91 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jaw Coupling Hub |
| Bore Dia. | 1 3/8" |
| Bore Tolerance | 0" to 0.001" |
| Bore Type | Round Bore With Keyway |
| Coupling Overall Length | 4 3/8" |
| Coupling Size | JC50 |
| Fail Safe | Yes |
| Features | Balanced Design, Replaceable Spider |
| For Shaft Type | Keyed |
| Full Bearing Support Required | Yes |
| Hub Diameter | 3 1/8" |
| Hub Material | Aluminum |
| Hub Material Finish | Bright |
| Hub Material Grade | 2024 |
| Hub Projection | 1 19/32" |
| Included Screws | (1) Hex Socket Cap Screw |
| Jaw Profile | Curved |
| Keyway Depth | 1/8" |
| Keyway Size | 5/16" x 1/8" |
| Keyway Width | 5/16" |
| Length Through Bore | 1 3/5" |
| Max. Operating Temp. | 180°F |
| Max. Speed | 8000 RPM |
| Maximum Bore Dia. | 1 3/8" |
| Min. Operating Temp. | -10°F |
| Number Of Locking Screws | 1 |
| Outside Dia. | 3 1/8" |
| Overall Coupling Length | 1.594" |
| Screw Material | Alloy Steel |
| Screw Material Finish | Black Oxide |
| Screw Thread Size | M8 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.0005" to 0" |
| System Of Measurement | Imperial |
| Zero Backlash | Yes |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Keyway Size | Outside Dia. | Coupling Size | Bore Dia. | Overall Coupling Length | Bore Tolerance | Hub Material Grade | Length Through Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

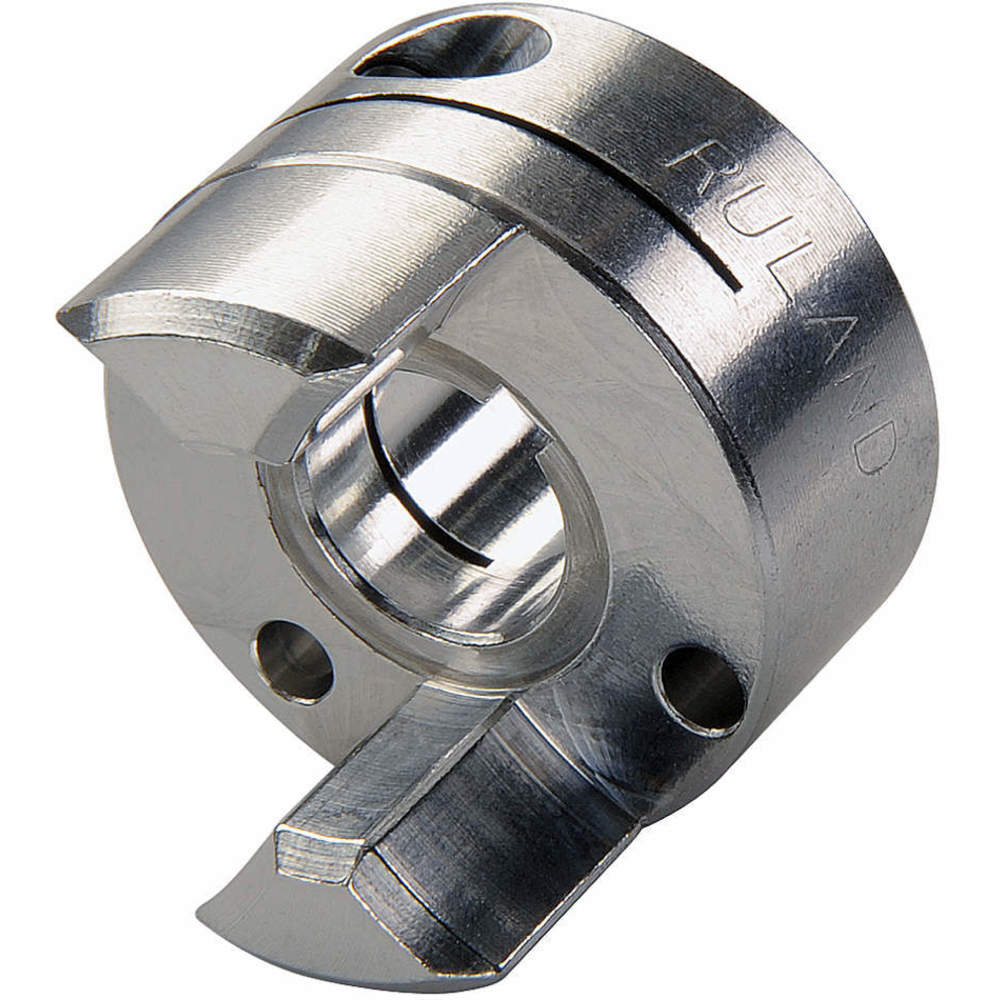

JCC16-6-A | 3/32" x 3/64" | 1" | Jc16 | 3/8" | - | 0" to 0.002" | Grade 2024 T351 | 1/2" | €76.95 | |
 |
JCC16-8-A | 1/8" x 1/16" | 1" | Jc16 | 1/2" | - | 0" to 0.002" | Grade 2024 T351 | 1/2" | €74.24 | |
 |
JCC26-10-A | 3/16" x 3/32" | 1 5/8" | Jc26 | 5/8" | - | 0" to 0.002" | Grade 2024 T351 | 0.7" | €135.17 | |
|
JCC26-12-A | 3/16" x 3/32" | 1 5/8" | Jc26 | 3/4" | - | 0" to 0.002" | Grade 2024 T351 | 0.7" | €133.66 | |
|
JCC26-6-A | 3/32" x 3/64" | 1 5/8" | Jc26 | 3/8" | - | 0" to 0.002" | Grade 2024 T351 | 0.7" | €129.36 | |
|
JCC26-8-A | 1/8" x 1/16" | 1 5/8" | Jc26 | 1/2" | - | 0" to 0.002" | Grade 2024 T351 | 0.7" | €129.36 | |
|
JCC36-10-A | 3/16" x 3/32" | 2 1/4" | Jc36 | 5/8" | - | 0" to 0.002" | Grade 2024 T351 | 1.1" | €280.56 |
