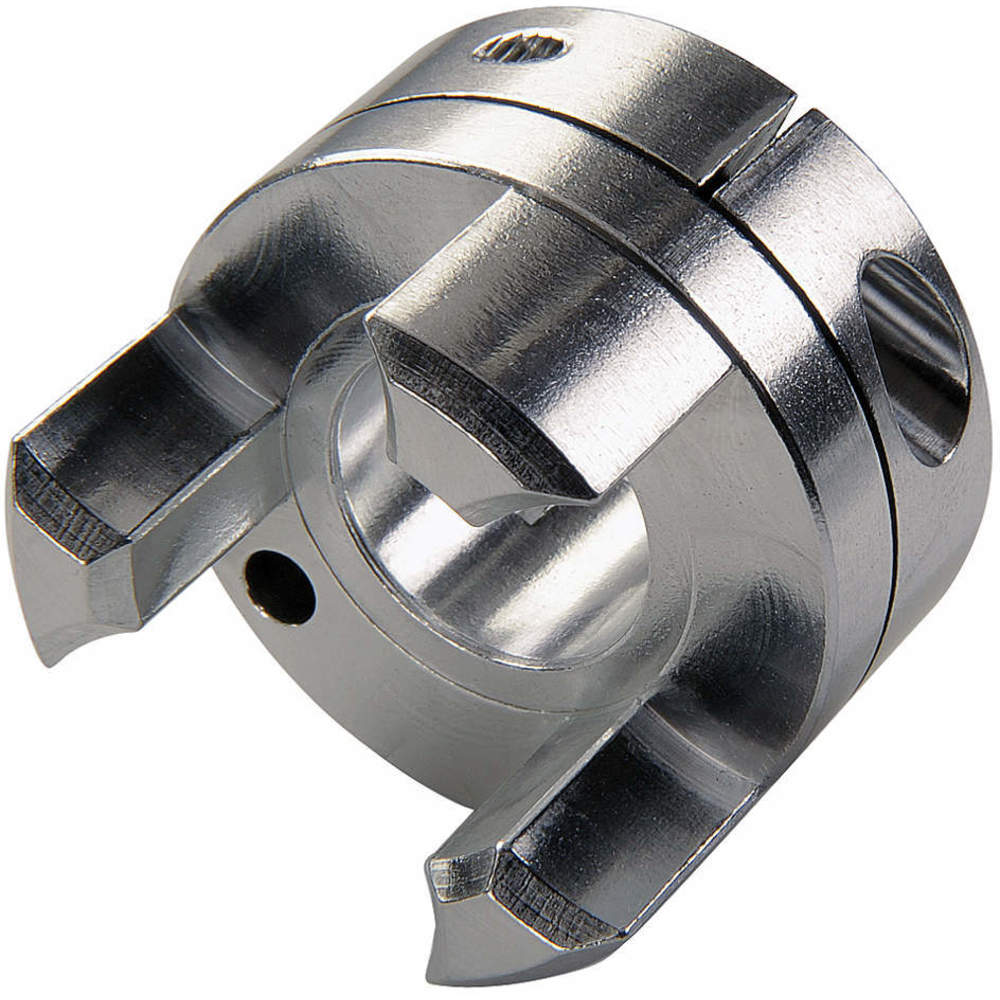

RULAND MANUFACTURING JC32-10-A 5/8 Inch Jaw Coupling Hub, Aluminum, Clamp Style, 2.000 Inch OD, 0.820 Inch Lg.
2"
5/8"
Get it by Tuesday, Feb 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€163.69 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Jaw Coupling Hub |
| Bore Dia. | 5/8" |
| Bore Tolerance | 0" to 0.002" |
| Bore Type | Round Bore |
| Coupling Overall Length | 2 13/32" |
| Coupling Size | JC32 |
| Fail Safe | Yes |
| For Shaft Type | Round |
| Full Bearing Support Required | Yes |
| Hub Diameter | 2" |
| Hub Material | Aluminum |
| Hub Material Finish | Bright |
| Hub Material Grade | Grade 2024 |
| Hub Projection | 13/16" |
| Included Screws | Hex Socket Cap Screw |
| Jaw Profile | Curved |
| Keyway | No |
| Keyway Size | None |
| Length Through Bore | 4/5" |
| Maximum Operating Temperature | 180°F |
| Maximum Speed | 8000 RPM |
| Minimum Operating Temperature | -10°F |
| Number Of Locking Screws | 1 |
| Outside Dia. | 2" |
| Overall Length | 20.8 mm |
| Screw Material | Alloy Steel |
| Screw Material Finish | Black Oxide |
| Screw Thread Size | M5 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.0005" to 0" |
| Size | JC32 |
| System Of Measurement | Imperial |
| Zero Backlash | Yes |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 6.1 |
| Ship width (cm) | 10.16 |
| HS code | 8483608000 |
| Country of Origin | US |
Product Variants
| Model | Coupling Size | Outside Dia. | Bore Dia. | Overall Coupling Length | Hub Material Grade | Length Through Bore | Bore Tolerance | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| JC44-24-A | JC44 | 2 3/4" | 1 1/2" | 1.297" | 2024 | 1.3" | 0" to 0.001" | 1 19/64" | €269.75 | |
| JC44-16-A | JC44 | 2 3/4" | 1" | 1.297" | 2024 | 1.3" | 0" to 0.001" | 1 19/64" | €269.75 | |
| JC44-18-A | JC44 | 2 3/4" | 1 1/8" | 1.297" | 2024 | 1.3" | 0" to 0.001" | 1 19/64" | €269.75 | |
| JC44-20-A | JC44 | 2 3/4" | 1 1/4" | 1.297" | 2024 | 1.3" | 0" to 0.001" | 1 19/64" | €269.75 | |
| JC50-18-A | JC50 | 3 1/8" | 1 1/8" | 1.594" | 2024 | 1 3/5" | 0" to 0.001" | 1 19/32" | €310.26 | |
| JC50-26-A | JC50 | 3 1/8" | 1 5/8" | 1.594" | 2024 | - | - | - | €310.26 | |
| JC50-16-A | JC50 | 3 1/8" | 1" | 1.594" | 2024 | 1 3/5" | 0" to 0.001" | 1 19/32" | €310.26 |
