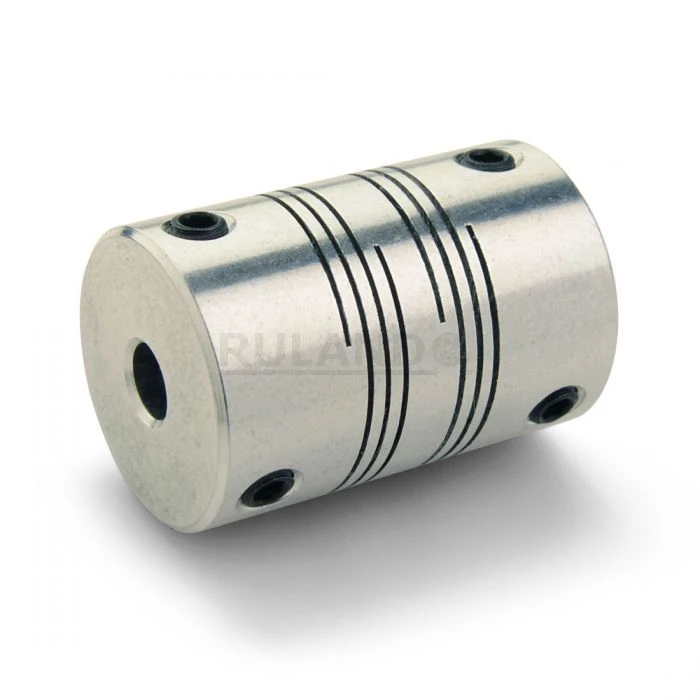

RULAND MANUFACTURING FSMR38-18-12-A 18mm x 12mm Six Beam Coupling, Aluminum, Set Screw Style, 38.1mm OD, 57.2mm Lg.

Item: DK6KNRModel: FSMR38-18-12-A

7 In Stock

18 mm x 12 mm

18 mm x 12 mm
10 mm x 10 mm
11 mm x 10 mm
12 mm x 10 mm
12 mm x 11 mm
12 mm x 12 mm
13 mm x 10 mm
13 mm x 11 mm
13 mm x 12 mm
13 mm x 13 mm
14 mm x 10 mm
14 mm x 11 mm
14 mm x 12 mm
14 mm x 13 mm
14 mm x 14 mm
15 mm x 10 mm
15 mm x 11 mm
15 mm x 12 mm
15 mm x 13 mm
15 mm x 14 mm
15 mm x 15 mm
16 mm x 10 mm
16 mm x 11 mm
16 mm x 12 mm
16 mm x 13 mm
16 mm x 14 mm
16 mm x 15 mm
16 mm x 16 mm
17 mm x 10 mm
17 mm x 11 mm
17 mm x 12 mm
17 mm x 13 mm
17 mm x 14 mm
17 mm x 15 mm
17 mm x 16 mm
17 mm x 17 mm
18 mm x 10 mm
18 mm x 11 mm
18 mm x 13 mm
18 mm x 14 mm
18 mm x 15 mm
18 mm x 16 mm
18 mm x 17 mm
18 mm x 18 mm
19 mm x 10 mm
19 mm x 11 mm
19 mm x 12 mm
19 mm x 13 mm
19 mm x 14 mm
19 mm x 15 mm
19 mm x 16 mm
19 mm x 17 mm
19 mm x 18 mm
19 mm x 19 mm
20 mm x 10 mm
20 mm x 11 mm
20 mm x 12 mm
20 mm x 13 mm
20 mm x 14 mm
20 mm x 15 mm
20 mm x 16 mm
20 mm x 17 mm
20 mm x 18 mm
20 mm x 19 mm
20 mm x 20 mm

Bore Dia.

Aluminum

Material

Ships within 2 days via

€117.72 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Coupling
Angular Misalignment	3°
Axial Motion	0.38 mm
B1 Max Shaft Penetration	27.3 mm
B2 Max Shaft Penetration	27.3 mm
Bore (b1)	18 mm
Bore Tolerance	-0 mm to +0.025 mm
Dynamic Torque Non-reversing	4.52 N-m
Dynamic Torque Reversing	2.26 N-m
Finish Specification	Bright, No Plating
Forged Set Screw	M6
Full Bearing Support Required	Yes
Hex Wrench Size	3 mm
Length (l)	57.2 mm
Material Specification	7075-T651 Extruded And Drawn Aluminum Bar
Max. Speed	6000 RPM
Moment Of Inertia	30.032 x 10
Number Of Screws	4 EA
Outer Diameter (od)	38.1 mm
Parallel Misalignment	0.76 mm
Recommended Hex Key	Metric Hex Keys
Recommended Shaft Tolerance	-0.013 mm to 0 mm
Screw Finish	Black Oxide
Screw Material	Alloy Steel
Seating Torque	7.2 N-m
Small Bore (b2)	12 mm
Static Torque	9.04 N-m
Temperature	-40°F to 225°F
Torque Wrench	TW:BT-4C-3/8-64
Torsional Stiffness	10000 N-m/deg.
Zero-backlash	Yes

Shipping Info:

Ship weight (kg)	0.13
Ship height (cm)	3.81
Ship length (cm)	5.72
Ship width (cm)	3.81
Country of Origin	US

Product Variants

Model	Axial Motion	Parallel Misalignment	Torsional Stiffness	Overall Length	Different Bore Sizes	Coupling Material	Rated Torque	Moment Of Inertia	Price
FSMR16-5-5-A	0.13 mm	0.2 mm	0.31 N-m/deg.	25.4 mm	No	Aluminum	1.47 N-m	0.00000038 kgf/sq. m	€88.45
FSMR16-5-5-SS	0.13 mm	0.2 mm	1.28 N-m/deg.	25.4 mm	No	Stainless Steel	2.04 N-m	0.000001097 kgf/sq. m	€219.62
FSMR16-6-5-A	0.13 mm	0.2 mm	0.31 N-m/deg.	25.4 mm	Yes	Aluminum	1.47 N-m	0.00000038 kgf/sq. m	€88.45
FSMR16-6-5-SS	0.13 mm	0.2 mm	1.28 N-m/deg.	25.4 mm	Yes	Stainless Steel	2.04 N-m	0.000001097 kgf/sq. m	€219.62
FSMR16-6-6-A	0.13 mm	0.2 mm	-	25.4 mm	No	Aluminum	1.47 N-m	0.00000038 kgf/sq. m	€88.45
FSMR16-6-6-SS	0.13 mm	0.2 mm	1.28 N-m/deg.	25.4 mm	No	Stainless Steel	2.04 N-m	0.000001097 kgf/sq. m	€219.62
FSMR19-5-5-A	0.13 mm	0.2 mm	0.75 N-m/deg.	31.8 mm	No	Aluminum	2.94 N-m	0.000001037 kgf/sq. m	€83.69
