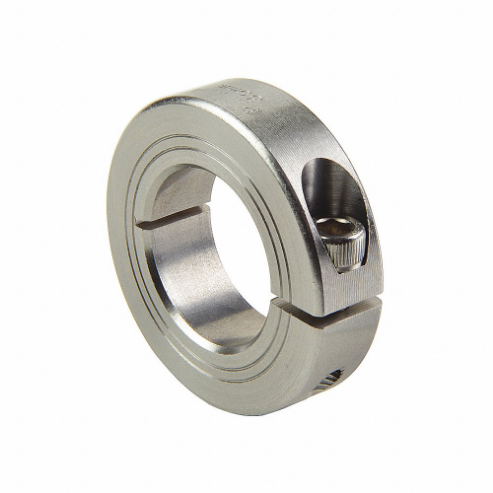

RULAND MANUFACTURING CL-2-ST 1/8 Inch One-Piece Shaft Collar, 316 SS, Clamp Style, 5/8 Inch OD, 0.281 Inch Wd.
Item: AF9XBEModel: CL-2-STCross Ref: 30VK51
7 In Stock
5/8"
1/8"
Stainless Steel
Grade 316
Ships within 2 days via
10.00% off
€102.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shaft Collar |
| Bore Dia. | 1/8" |
| Bore Tolerance | +0.0005" to +0.002" |
| Clearance Dia. | 0.773" |
| Clearance Diameter | 0.77" |
| Collar Construction | 1-Piece |
| Collar Material | Stainless Steel |
| Collar Material Finish | Bright |
| Collar Material Grade | Grade 316 |
| Collar Outside Diameter | 5/8" |
| Collar Style | Clamp |
| Collar Width | 9/32" |
| Dimension Type | Standard |
| For Shaft Diameter | 1/8" |
| For Shaft Type | Round |
| Grade | Grade 316 |
| Included Screws | (1) Hex Socket Cap Screw |
| Material | Stainless Steel |
| Maximum Operating Temperature | 350°F |
| Minimum Operating Temperature | -40°F |
| Number Of Pieces | 1 |
| Operating Temp. Range | -40°F to +350°F |
| Resistance Properties | Corrosion Resistant |
| Screw Location From Center | 0.21" |
| Screw Material | Stainless Steel |
| Screw Material Finish | Bright |
| Screw Material Grade | Grade 316 |
| Screw Seating Torque | 8 lbs.-in. |
| Screw Size | #4-40 |
| Screw Thread Size | #4-40 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.0005" to 0" |
| System Of Measurement | Imperial |
| Width | 0.281" |
| Width Tolerance | -0.01" to +0.003" |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 0.76 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 0.71 |
| HS code | 8483608000 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Collar Material | Bore Dia. | Clearance Dia. | Screw Material | Collar Material Finish | Shaft Tolerance | Included Screws | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CL-40-F | 3 3/4" | Carbon Steel | 2 1/2" | 4.034" | Alloy Steel | Black Oxide | -0.0005" to 0" | (1) Hex Socket Cap Screw | €122.93 | |
 |
CL-10-A | 1.312" | - | 5/8" | 1 1/2" | Alloy Steel | - | - | - | €16.42 | |
|
CL-10-F | 1.312" | - | 5/8" | 1 1/2" | Alloy Steel | - | - | - | €13.42 | |
 |
CL-10-SS | 1.312" | Stainless Steel | 5/8" | 1 1/2" | Stainless Steel | Bright | -0.0005" to 0" | (1) Hex Socket Cap Screw | €33.17 | |
|
CL-11-A | - | Aluminum | - | 1.564" | Alloy Steel | Bright | -0.0005" to 0" | (1) Hex Socket Cap Screw | €18.21 | |
|
CL-11-F | - | Carbon Steel | - | 1.564" | Alloy Steel | Black Oxide | -0.0005" to 0" | (1) Hex Socket Cap Screw | €14.85 | |
|
CL-11-SS | - | Stainless Steel | - | 1.564" | Stainless Steel | Bright | -0.0005" to 0" | (1) Hex Socket Cap Screw | €39.41 |
