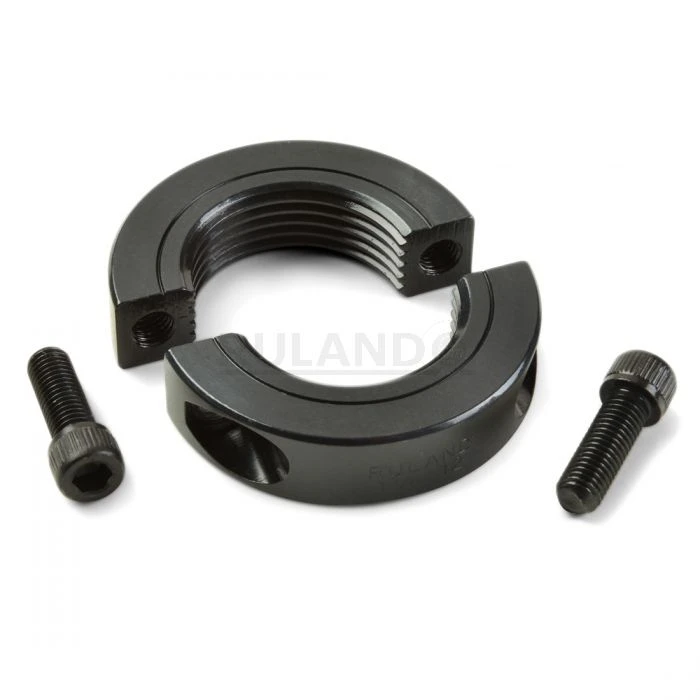

RULAND MANUFACTURING ATSP-20-5-F 11/4 Inch - 5 TPI Acme Threaded Shaft Collar, Black Oxide Steel, Two-Piece Clamp Style, 2 1/16 Inch OD, 0.500 Inch Wd.
Get it by Thursday, May 21
€31.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Shaft Collar |
| Clearance Diameter (c) Max | 2.295" |
| Finish Specification | Hot Process Black Oxide, Impregnated With Naphthenic Oil, Centrifugally Dried |
| Forged Clamp Screw | 1/4"-28 |
| Hex Wrench Size | 3/16" |
| Material Specification | 1215 Carbon Steel Bar |
| Number Of Screws | 2 EA |
| Outer Diameter | 2 1/16" |
| Recommended Gap | 0.063" |
| Recommended Shaft Tolerance | -0.0005" to 0" |
| Screw Finish | Black Oxide |
| Screw Location (r) | 0.828" |
| Screw Material | Alloy Steel |
| Seating Torque | 170 lbs.-in. |
| Temperature | -40°F to 350°F |
| Thread Class | 2g |
| Threaded Bore (b1) | 1 1/4"-5 |
| Width (w) | 1/2" |
| Width Tolerance | -0.01" to +0.003" |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 5.24 |
| Ship length (cm) | 5.24 |
| Ship width (cm) | 1.27 |
| Country of Origin | US |
