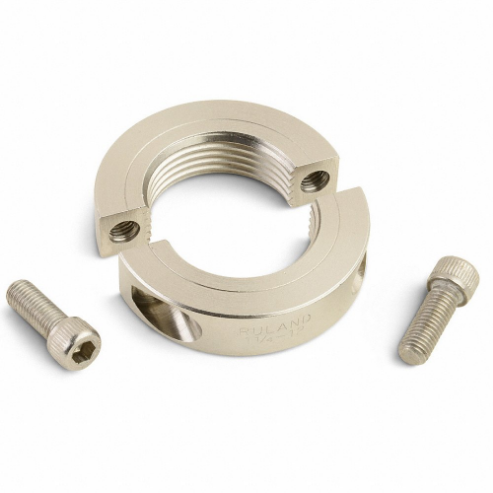

RULAND MANUFACTURING ATSP-16-5-SS 1 Inch - 5 TPI Acme Threaded Shaft Collar, 303 SS, Two-Piece Clamp Style, 1 3/4 Inch OD, 0.500 Inch Wd.
Item: CT9NPJModel: ATSP-16-5-SSCross Ref: 805H13
7 In Stock
Ships within 2 days via
10.00% off
€113.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shaft Collar |
| Bore Thread Size | 1"-5 |
| Bore Type | Threaded |
| Clearance Dia. | 2.03" |
| Collar Construction | 2-Piece |
| Collar Material | Stainless Steel |
| Collar Material Finish | Bright |
| Collar Material Grade | Grade 303 |
| Collar Outside Diameter | 1 3/4" |
| Collar Width | 1/2" |
| Construction | Two Piece |
| For Shaft Dia. | 1" |
| For Shaft Diameter | 1" |
| Included Screws | (2) Clamp Screw |
| Max. Operating Temp. | 350°F |
| Min. Operating Temp. | -40°F |
| Outside Dia. | 1 3/4" |
| Resistance Properties | Corrosion Resistant |
| Screw Location From Center | 17/25" |
| Screw Material | Stainless Steel |
| Screw Material Finish | Bright |
| Screw Material Grade | Grade 18-8, 300 Series |
| Screw Seating Torque | 110 lbs.-in. |
| Screw Thread Size | 1/4"-37 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.0005" to 0" |
| System Of Measurement | Imperial |
| Thread Type | Acme Thread |
| Width Tolerance | -0.01" to +0.003" |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 1.5 |
| Ship length (cm) | 4 |
| Ship width (cm) | 3.99 |
| Country of Origin | US |
Product Variants
| Model | Collar Material | Outside Dia. | Screw Material | Clearance Dia. | For Shaft Dia. | Screw Material Finish | Bore Thread Size | Collar Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

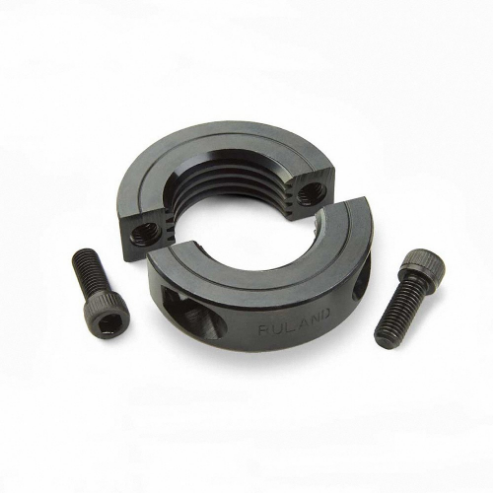

| ATSP-12-10-F | Carbon Steel | 1 1/2" | Alloy Steel | 1.81" | 3/4" | Black Oxide | 3/4"-10 | - | €49.03 | |
| ATSP-16-4-SS | Stainless Steel | 1 3/4" | Stainless Steel | 2.03" | 1" | Bright | 1"-4 | 1/2" | €125.59 | |
| ATSP-16-10-F | Carbon Steel | 1 3/4" | Alloy Steel | 2.03" | 1" | Black Oxide | 1"-10 | 1/2" | €57.71 | |
| ATSP-16-10-SS | Stainless Steel | 1 3/4" | Stainless Steel | 2.03" | 1" | Bright | 1"-10 | 1/2" | €125.59 | |
| ATSP-12-6-F | Carbon Steel | 1 1/2" | Alloy Steel | 1.81" | 3/4" | Black Oxide | 3/4"-6 | 1/2" | €46.01 | |
| ATSP-16-5-F | Carbon Steel | 1 3/4" | Alloy Steel | 2.03" | 1" | Black Oxide | 1"-5 | 1/2" | €54.26 | |
| ATSP-12-10-SS | Stainless Steel | 1 1/2" | Stainless Steel | 1.81" | 3/4" | Bright | 3/4"-10 | 1/2" | €97.82 |
