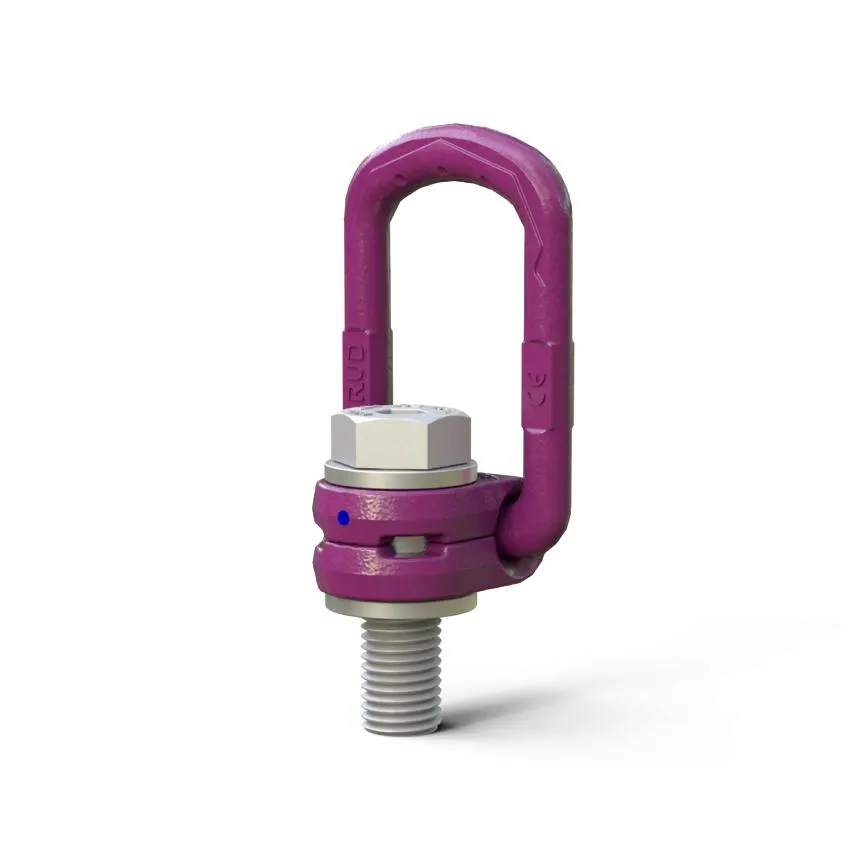

RUD CHAIN 8504655 VLBG-PLUS 2t M16 Load Ring, M16 Nominal Size, 85 mm Pitch, Load Capacity 4400 Lbs., Alloy Steel, Metric
Get it by Tuesday, Aug 25
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€304.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hoist Ring |
| Bail Dia. | 13.49 mm |
| Bail Inside Length | 1 5/8" |
| Bail Inside Width | 1 1/2" |
| Bail Thickness | 17/32" |
| Color | Pink |
| Dimensions A | 32.94 mm |
| Dimensions B | 55.96 mm |
| Dimensions C | 35.72 mm |
| Dimensions D | 30.16 mm |
| Dimensions E | 38.89 mm |
| Dimensions F | 134.94 mm |
| Finish | Powder Coating |
| Hoist Ring Type | Pivot, Swivel |
| Included | Bolt |
| Installation Torque | 149.95 N-m |
| Load Capacity | 1995.8 Kg |
| Material | Alloy, Steel |
| Max. Operating Temp. | 350°C , 662°F |
| Mfr. Series | VLBG-PLUS Series |
| Min. Installation Torque | 110.6 lbs.-ft. |
| Min. Operating Temp. | -40°C , -40°F |
| Mounting Style | Screw On |
| Mounting Type | Screw On |
| Nominal Size | M16 |
| Nominal Wll (kg) | 2000 Kg |
| Operation | Lifting |
| Overall Length | 4 3/4" |
| Overall Width | 2 1/4" |
| Pitch | 85 mm |
| Pivot | 180° |
| Pivot Angle | 180° |
| Product Datasheet | rud-chain-8504655.pdf |
| Rotate Angle | 360° |
| Series | VLBG-PLUS |
| Swivel Angle | 360° |
| System Of Measurement | Metric |
| Thread Projection | 22.23 mm |
| Thread Size | M16 x 2 |
| Usable Thread Length | 7/8" |
| Working Load Limit | 4400 lbs. |
Shipping Info:
| Ship weight (kg) | 0.54 |
| Ship height (cm) | 5.99 |
| Ship length (cm) | 22.5 |
| Ship width (cm) | 10.31 |
Documentation:
Product Variants
| Model | Material | Thread Size | System Of Measurement | Pivot | Swivel Angle | Finish | Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|
| 7983553 | Steel | M36 x 4 | Metric | 180° | 360° | Powder Coating | 7996.83 Kg | €1,398.56 | |
| 7982966 | Steel | M42 x 4.5 | Metric | 180° | 360° | Powder Coating | 15000.29 Kg | €2,317.36 | |
| 7982967 | Steel | M48 x 5 | Metric | 180° | 360° | Powder Coating | 19998.87 Kg | €2,143.42 | |
| 8504651 | Alloy, Steel | M8 x 0.63 | Metric | 180° | 360° | Powder Coating | 630.49 Kg | €230.35 | |
| 8504652 | Alloy, Steel | M10 x 0.9 | Metric | 180° | 360° | Powder Coating | 898.11 Kg | €236.82 | |
| 8504657 | Alloy, Steel | M20 x 2.5 | Metric | 180° | 360° | Powder Coating | 3492.66 Kg | €280.83 | |
| 8504661 | Alloy, Steel | M30 x 6.7 | Metric | 180° | 360° | Powder Coating | 6699.55 Kg | €637.65 |
