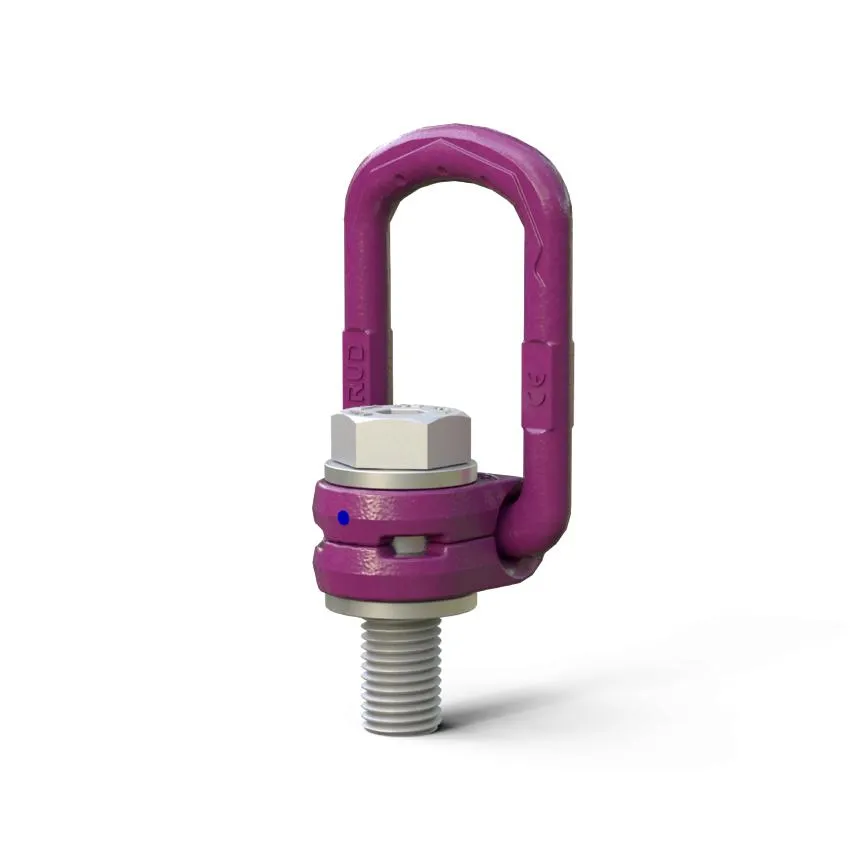

RUD CHAIN 7982967 VLBG-PLUS 20t M48 Load Ring, M48 Nominal Size, 222 mm Pitch, Load Capacity 44090 Lbs., Steel, Metric Thread
Get it by Wednesday, Dec 17
10.00% off
€1,929.07 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hoist Ring |
| Bail Dia. | 36.12 mm |
| Bail Dia. | 3-15/16" |
| Bail Inside Length | 4 1/8" |
| Bail Inside Width | 4" |
| Bail Thickness | 1 27/64" |
| Color | Pink |
| Finish | Powder Coated |
| Hoist Ring Type | Pivot, Swivel |
| Installation Torque | 1999.97 N-m |
| Installation Torque | 1500 ft.-lb. |
| Load Capacity | 19998.87 Kg |
| Material | Steel |
| Max. Operating Temp. | 350°C |
| Maximum Operating Temperature | 662°F |
| Mfr. Series | VLBG-PLUS Series |
| Min. Operating Temp. | -40°C |
| Minimum Installation Torque | 1475.1 lbs.-ft. |
| Minimum Operating Temperature | -40°F |
| Mount Type | Screw On |
| Mounting Style | Screw On |
| Nominal Size | M48 |
| Nominal Wll (kg) | 20000 Kg |
| Operation | Lifting |
| Overall Length | 13" |
| Overall Width | 6 1/8" |
| Pitch | 222 mm |
| Pivot | 180 Degrees |
| Pivot | 180° |
| Pivot Angle | 180° |
| Product Datasheet | rud-chain-7982967.pdf |
| Rotate Angle | 360° |
| Standards | Dguv Test |
| Swivel Angle | 360° |
| System Of Measurement | Metric |
| Thread Projection | 73.03 mm |
| Thread Size | M48 x 5 |
| Usable Thread Length | 2 7/8" |
| Working Load Limit | 44090 lbs. |
Shipping Info:
| Ship weight (kg) | 11.51 |
| Ship height (cm) | 5.99 |
| Ship length (cm) | 22.5 |
| Ship width (cm) | 10.31 |
| HS code | 8431310060 |
| Country of Origin | DE |
Documentation:
Product Variants
| Model | Material | Thread Size | System Of Measurement | Pivot | Swivel Angle | Finish | Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|
| 7983553 | Steel | M36 x 4 | Metric | 180° | 360° | Powder Coated | 7996.83 Kg | €1,655.57 | |
| 7982966 | Steel | M42 x 4.5 | Metric | 180° | 360° | Powder Coated | 15000.29 Kg | €2,317.36 | |
| 8504651 | Alloy Steel | M8 x 0.63 | Metric | 180° | 360° | Powder Coated | 630.49 Kg | €292.32 | |
| 8504652 | Alloy Steel | M10 x 0.9 | Metric | 180° | 360° | Powder Coated | 898.11 Kg | €283.59 | |
| 8504657 | Alloy Steel | M20 x 2.5 | Metric | 180° | 360° | Powder Coated | 3492.66 Kg | €310.01 | |
| 8504661 | Alloy Steel | M30 x 6.7 | Metric | 180° | 360° | Powder Coated | 6699.55 Kg | €637.65 | |
| 8504653 | Alloy Steel | M12 | Metric | 180° | 360° | Powder Coated | 1347.17 Kg | €263.54 |
