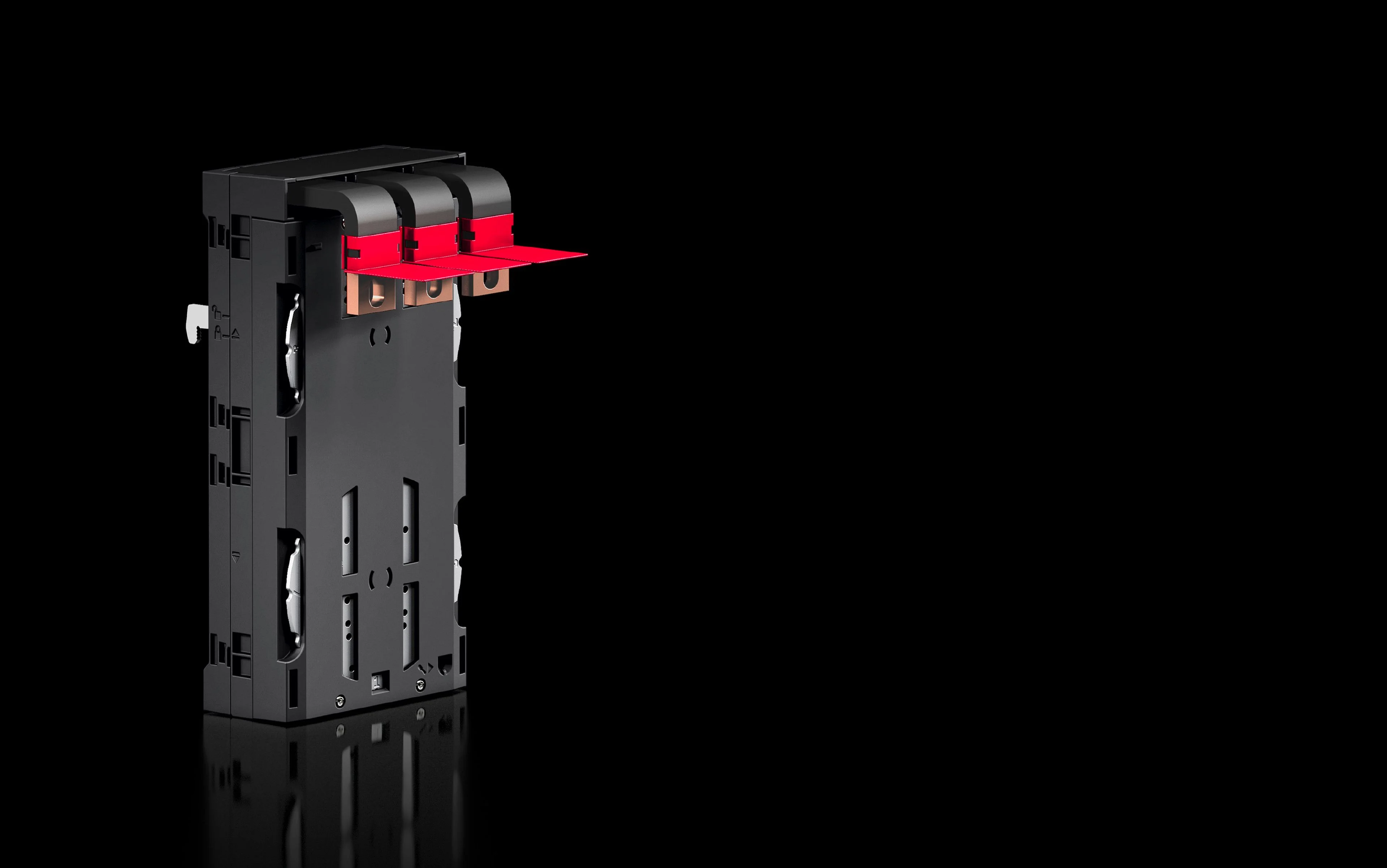

RITTAL RX 9360535 Adapter 630 A, 3-Pole, Version Easy Fix, Width 140 Mm
Get it by Tuesday, Aug 25
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Adapter |
| Ambient Humidity (non Condensing) | 10% to 90% |
| Cable Outlet Type | Top, Bottom |
| Color | RAL 9005, RAL 35745 |
| Contamination Level | 3 |
| Copper Weight (per Piece) | 2.64 Kg |
| Depth | 3.01" |
| Fundamental Frequency | 50-60 Hz |
| Grade | Grade PA6 |
| Height | 12 4/5" |
| Material | Polyamide |
| No. Of Poles | 3 |
| Operating Temp. Range | -25°C to +55°C |
| Rated Impulse Withstand Voltage Uimp | 12 kV |
| Rated Insulation Voltage | 1000V |
| Rated Voltage | 600/690V |
| Screw Size | M10 |
| Storage Temp. | -25°C to +75°C |
| Suitable For Busbar System | RiLineX', 'RiLine60 |
| Suitable For Busbars | 15 mm X 5 mm/10 mm, 20 mm X 5 mm/10 mm, 30 mm X 5 mm/10 mm |
| Width | 5.71" |
Shipping Info:
| Ship weight (kg) | 5.15 |
| Ship height (cm) | 32.51 |
| Ship length (cm) | 7.65 |
| Ship width (cm) | 14.5 |
