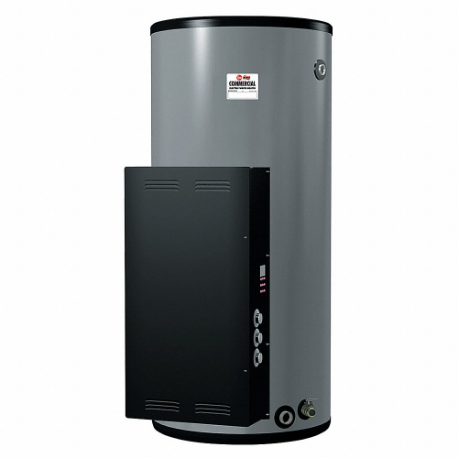

RHEEM ES120-24-G Electric Water Heater, 480VAC, 120 Gal, 24000 W, Single/Three Phase, 67.6 Inch Ht | CT9ARZ 21XP22

RHEEM ES120-24-G Electric Water Heater, 480VAC, 120 Gal, 24000 W, Single/Three Phase, 67.6 Inch Height

Item: CT9ARZModel: ES120-24-GCross Ref: 21XP22
Check Availability
In Stock

Get it by Wednesday, Aug 26

€8,392.82 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Heater
Amps 50A
Automatic Thermostat Yes
Cold Inlet Size 1 1/2"
Cold Inlet Type NPT
Commercial/residential Commercial
Element Material Stainless Steel
Equivalent Btuh 81893 btuH
First Hour Rating Not Applicable
Fuel Type Electric
Height To Cold Inlet 4 4/5"
Height To Hot Outlet 67 3/5"
Height To T And P Valve 58 3/4"
Hot Outlet Size 1 1/2"
Included Brass Drain Valve, Factory-Installed T&P Valve
Included Valves Temperature And Pressure Relief
Market Commercial
Max. Recovery Flow Rate 248 GPH @ 40°F
Max. Water Pressure 150 psi
No. Of Elements 6
Operating Voltage 480V AC
Overall Depth 36"
Overall Height 67 3/5"
Overall Width 30.3"
Phase 1, 3
Power Consumption 24000 W
Recovery Rate @ Rise 110 GPH @ 90°F, 124 GPH @ 80°F, 142 GPH @ 70°F, 165 GPH @ 60°F, 199 GPH @ 50°F, 7 GPH @ 140°F, 76 GPH @ 130°F, 83 GPH @ 120°F, 90 GPH @ 110°F, 99 GPH @ 100°F
Residential/commercial Commercial
Sub-brand Commercial Water Heater
System Of Measurement Imperial
Tank Capacity 120 gal.
Tank Dia. 30 1/4"
Tank Insulation Material Polyurethane
Tank Lining Material Vitreous Glass
Thermal Efficiency 98%
Thermostat Mounting Surface
Water Connection Location Side, Top
Water Heater Design Whole House

Shipping Info:

Ship weight (kg) 185.4
Ship height (cm)171.7
Ship length (cm)91.44
Ship width (cm)76.96
Country of OriginUS

Product Variants

ProductModelTank Dia.Tank CapacityOverall HeightOperating VoltagePhaseMax. Recovery Flow RatePower ConsumptionThermal EfficiencyPrice
RHEEM PROE10 1 RH POU Electric Water Heater, 120VAC, 10 Gal, 2000 W, Single Phase, 23 Inch Ht, 20 Gph, 40 Deg F | CT9AKJ 38UN66 PROE10 1 RH POU15 3/4"10 gal.23"120V AC120 GPH @ 40°F2000 WNot Rated€574.09
RHEEM PROE15 1 RH POU Electric Water Heater, 120VAC, 15 Gal, 2000 W, Single Phase, 24.25 Inch Ht, 20 Gph | CT9AKK 38UN67 PROE15 1 RH POU17 3/4"15 gal.24 1/4"120V AC120 GPH @ 40°F2000 WNot Rated€723.13
RHEEM PROE20 1 RH POU Electric Water Heater, 120VAC, 19.9 Gal, 2000 W, Single Phase, 25.25 Inch Ht, 20 Gph | CT9AKL 38UN68 PROE20 1 RH POU19 3/4"19.9 gal.25 1/4"120V AC120 GPH @ 40°F2000 WNot Rated€684.65
RHEEM PROE30 1 RH95 POU Electric Water Heater, 120VAC, 30 Gal, 2000 W, Single Phase, 32 Inch Ht, 9 Gph, 90 Deg F | CT9AKM 38UN41 PROE30 1 RH95 POU22 1/4"30 gal.32"120V AC19 GPH @ 90°F2000 W90%€939.88
RHEEM EGSP10 Electric Water Heater, 120V, 10 Gal, 2000 W, Single Phase, 22.87 Inch Ht, 20 Gph, 40 Deg F | CT9AKN 31CD87 EGSP1015.75"10 gal.22.87"120V120 GPH @ 40°F2000 WNot Rated€879.31
RHEEM EGSP15 Electric Water Heater, 120V, 15 Gal, 3000 W, Single Phase, 24.25 Inch Ht, 30 Gph, 40 Deg F | CT9AKP 31CD93 EGSP1517.75"15 gal.24 1/4"120V130 GPH @ 40°F3000 WNot Rated€837.99
RHEEM EGSP20 Electric Water Heater, 120V, 19.9 Gal, 2000 W, Single Phase, 25.12 Inch Ht, 20 Gph | CT9AKQ 31CD98 EGSP2019.75"19.9 gal.25.12"120V120 GPH @ 40°F2000 WNot Rated€1,021.09
