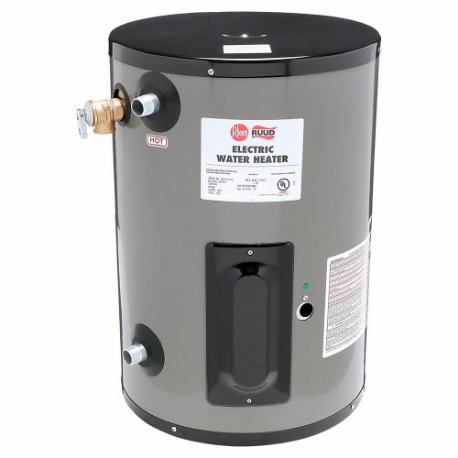

RHEEM EGSP10 208V Point-Of-Use Electric Water Heater, 208V, 10 Gal, 3000 W, Single Phase
208V
3000 W
6000 W
10 gal.
Get it by Tuesday, Sep 1
€879.31 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Heater |
| Amps | 14.4A |
| Automatic Thermostat | Yes |
| Cold Inlet Size | 3/4" |
| Cold Inlet Type | NPT |
| Environment | Indoor |
| Features | Automatic Temperature Control |
| Height To Cold Inlet | 4 1/4" |
| Height To Hot Outlet | 20.37" |
| Height To T And P Valve | 19.37" |
| Hot Outlet Size | 3/4" |
| Hot Outlet Type | NPT |
| Included | Resistor Elements, Surface Mounted Thermostat |
| Included Valves | Temperature And Pressure Relief |
| Market | Commercial |
| Max. Delivered Temp. | 170°F |
| Max. Recovery Flow Rate | 30 GPH @ 40°F |
| Max. Water Pressure | 150 psi |
| Min. Delivered Temp. | 110°F |
| Mounting Type | Wall Mounting |
| No. Of Elements | 1 |
| Operating Voltage | 208V |
| Overall Depth | 15.75" |
| Overall Height | 22.87" |
| Overall Width | 15 3/4" |
| Overheat Protection | Yes |
| Phase | 1 |
| Power Consumption | 3000 W |
| Recovery Rate @ Rise | 10 GPH @ 120掳F, 12 GPH @ 100掳F, 15 GPH @ 80掳F, 20 GPH @ 60掳F, 30 GPH @ 40掳F, 9 GPH @ 140掳F |
| Tank Capacity | 10 gal. |
| Tank Dia. | 15.75" |
| Tank Insulation Material | Polyurethane |
| Tank Outer Shell Finish | Porcelain Enamel |
| Tank Outer Shell Material | Steel |
| Thermal Efficiency | Not Rated |
| Thermostat Mounting | Surface |
| Water Connection Location | Side |
Shipping Info:
| Ship weight (kg) | 21.18 |
| Ship height (cm) | 58.09 |
| Ship length (cm) | 40.01 |
| Ship width (cm) | 40.01 |
| Country of Origin | MX |
Product Variants
| Product | Model | Tank Dia. | Tank Capacity | Overall Height | Operating Voltage | Phase | Max. Recovery Flow Rate | Power Consumption | Thermal Efficiency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PROE10 1 RH POU | 15 3/4" | 10 gal. | 23" | 120V AC | 1 | 20 GPH @ 40°F | 2000 W | Not Rated | €574.09 | |
 |
PROE15 1 RH POU | 17 3/4" | 15 gal. | 24 1/4" | 120V AC | 1 | 20 GPH @ 40°F | 2000 W | Not Rated | €723.13 | |
 |
PROE20 1 RH POU | 19 3/4" | 19.9 gal. | 25 1/4" | 120V AC | 1 | 20 GPH @ 40°F | 2000 W | Not Rated | €684.65 | |
 |
PROE30 1 RH95 POU | 22 1/4" | 30 gal. | 32" | 120V AC | 1 | 9 GPH @ 90°F | 2000 W | 90% | €939.88 | |
 |
EGSP10 | 15.75" | 10 gal. | 22.87" | 120V | 1 | 20 GPH @ 40°F | 2000 W | Not Rated | €879.31 | |
|
EGSP15 | 17.75" | 15 gal. | 24 1/4" | 120V | 1 | 30 GPH @ 40°F | 3000 W | Not Rated | €837.99 | |
|
EGSP20 | 19.75" | 19.9 gal. | 25.12" | 120V | 1 | 20 GPH @ 40°F | 2000 W | Not Rated | €1,021.09 |
