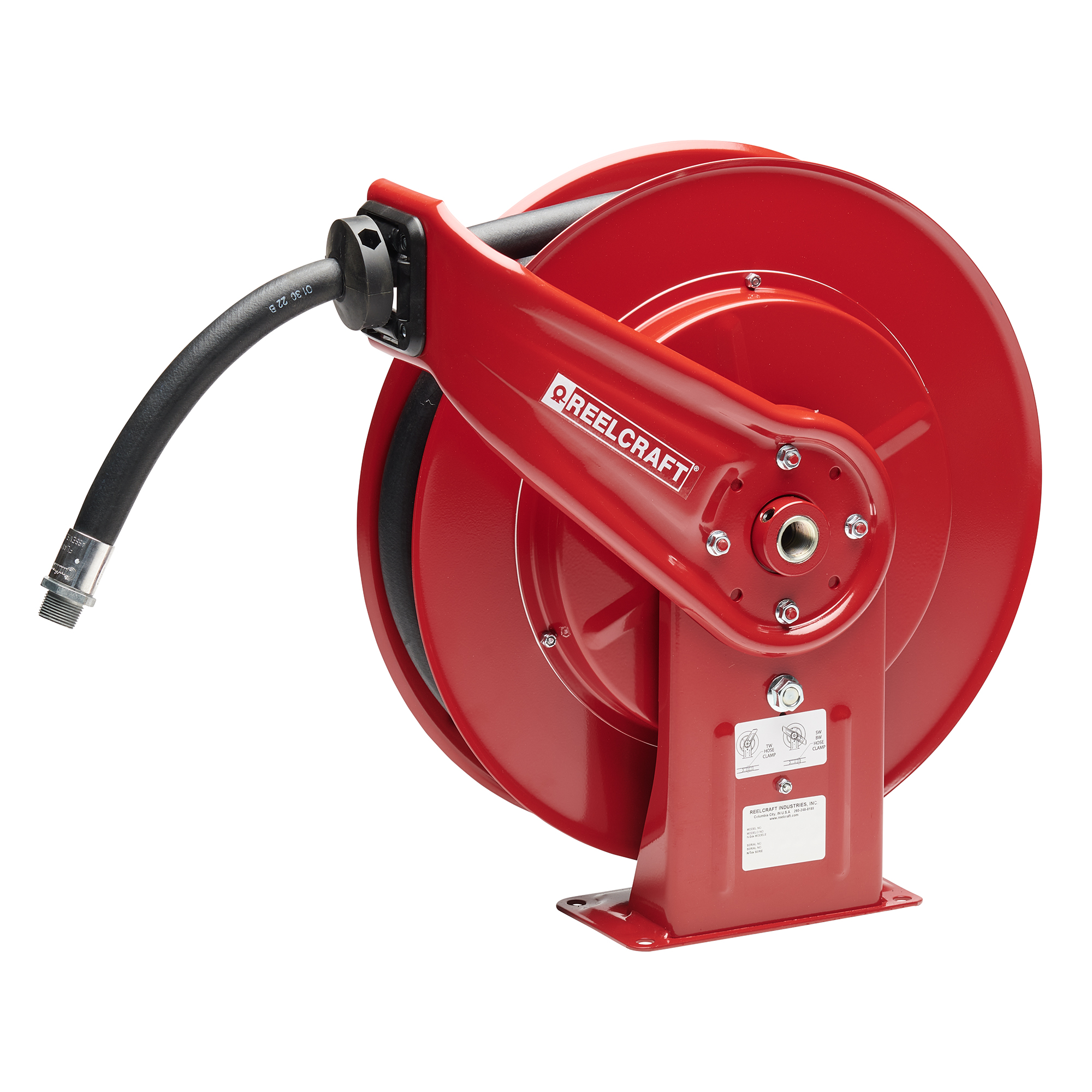

REELCRAFT UR7925OLB Diesel Exhaust Fluid Hose Reel, Inner Diameter 3/4 Inch, Hose Length 25 Feet
25 ft.
3/4"
300 psi
Get it by Monday, Dec 22
10.00% off
€1,792.34 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hose Reel |
| Base Motion Type | Stationary |
| Bearing Construction | Permanently Lubricated |
| Bearing Type | Greaseless |
| Corrosion-resistant | Yes |
| Drive Type | Spring Return |
| Enclosed | No |
| Fasteners Included | No |
| Features | Def Dispensing Heavy Duty Hose Reel |
| Finish | Powder Coated |
| Fitting Size | 3/4" x 3/4" |
| Fitting Type | NPT x NPT |
| For Dual Hose | No |
| Height | 20 1/4" |
| Hose Capacity | 25 ft. |
| Hose Color | Black |
| Hose Cover Material | EPDM |
| Hose End Configuration | 3/4" MNPT |
| Hose Fitting A Gender | Male |
| Hose Fitting A Material | Stainless Steel |
| Hose Fitting A Size | 3/4" |
| Hose Fitting A Type | NPT |
| Hose Fitting B Gender | Male |
| Hose Fitting B Material | Stainless Steel |
| Hose Fitting B Size | 3/4" |
| Hose Fitting B Type | NPT |
| Hose Inside Dia. | 3/4" |
| Hose Length | 25 ft. |
| Hose Outlet (in.) | 3/4" (M)NPT |
| Hose Outlet Type | MNPT |
| Hose Outside Dia. | 1 1/8" |
| Hose Reel Primary Application | DEF |
| Hose Reel Type | Ceiling, Floor, Vehicle, Wall Mount Hose Reel |
| Hose Tube Material | EPDM |
| Housing Material | Steel |
| Includes | Hose, Bumper |
| Includes Hose | Yes |
| Includes Hose Stop | Yes |
| Includes Leader Hose | No |
| Latch | Standard |
| Latch Type | Spring Loaded |
| Length | 19 3/4" |
| Max. Pressure | 300 psi |
| Max. Temp. | 150°F |
| Maximum Operating Pressure | 300 psi |
| Minimum Operating Temperature | -25°F |
| Mount Base Height | 8 61/64" |
| Mount Base Width | 4 61/64" |
| Mount Hole Diameter | 1/2" |
| Mounting | Ceiling, Floor, Wall |
| Mounting Hole Center To Center Height | 7 13/16" |
| Mounting Hole Center To Center Width | 3 7/8" |
| Number Of Guide Arms | 1 |
| Number Of Mount Holes | 4 |
| Overall Height | 20 1/4" |
| Overall Length | 19 3/4" |
| Overall Width | 7" |
| Pedestal Type | Single Pedestal |
| Product Datasheet | reelcraft-g3050.pdf |
| Reel Color | Red |
| Reel Diameter | 9" |
| Reel Finish | Powder Coated |
| Reel Material | Carbon Steel |
| Reel Width | 7" |
| Seal Material | Viton |
| Speed Limited Retraction | No |
| Spiral Hose Guard | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 3/4" |
| Swivel Inlet Thread Size | 3/4"-14 |
| Swivel Inlet Type | NPT |
| Swivel Material | Stainless Steel |
| Swivel Outlet Gender | Male |
| Swivel Outlet Size | 3/4" |
| Swivel Outlet Thread Size | 3/4"-14 |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
| Weight | 53 lbs. |
| Width | 7" |
Shipping Info:
| Ship weight (kg) | 21.74 |
| Ship height (cm) | 58.42 |
| Ship length (cm) | 56.64 |
| Ship width (cm) | 20.83 |
| HS code | 3917390050 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Swivel Material | Hose Capacity | Reel Color | Reel Material | Number Of Guide Arms | Hose Included | Fitting Size | Max. Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
UR7850OLB | Stainless Steel | - | - | - | - | - | - | 150°F | €1,833.73 | |
 |
PW7600OHP | Nickel Plated Steel | - | - | - | - | - | - | 400°F | €1,023.17 | |
 |
F7925OLP | Nickel Plated Steel | 25 ft. | Red | Carbon Steel | 1 | - | 3/4" x 3/4" | 150°F | €1,090.09 | |
|
7650OLP | Nickel Plated Steel | 50 ft. | Red | Carbon Steel | 1 | - | 1/4" x 1/4" | 150°F | €810.03 | |
 |
7850OLP | Nickel Plated Steel | 50 ft. | Red | Carbon Steel | 1 | - | 3/8" x 3/8" | 150°F | €875.74 | |
 |
7600OHP | Nickel Plated Steel | 50 ft. | Red | Steel | 1 | - | - | 210°F | €1,171.66 | |
|
7800OLP | Nickel Plated Steel | 50 ft. | Red | Steel | 1 | - | - | 150°F | €825.88 |
