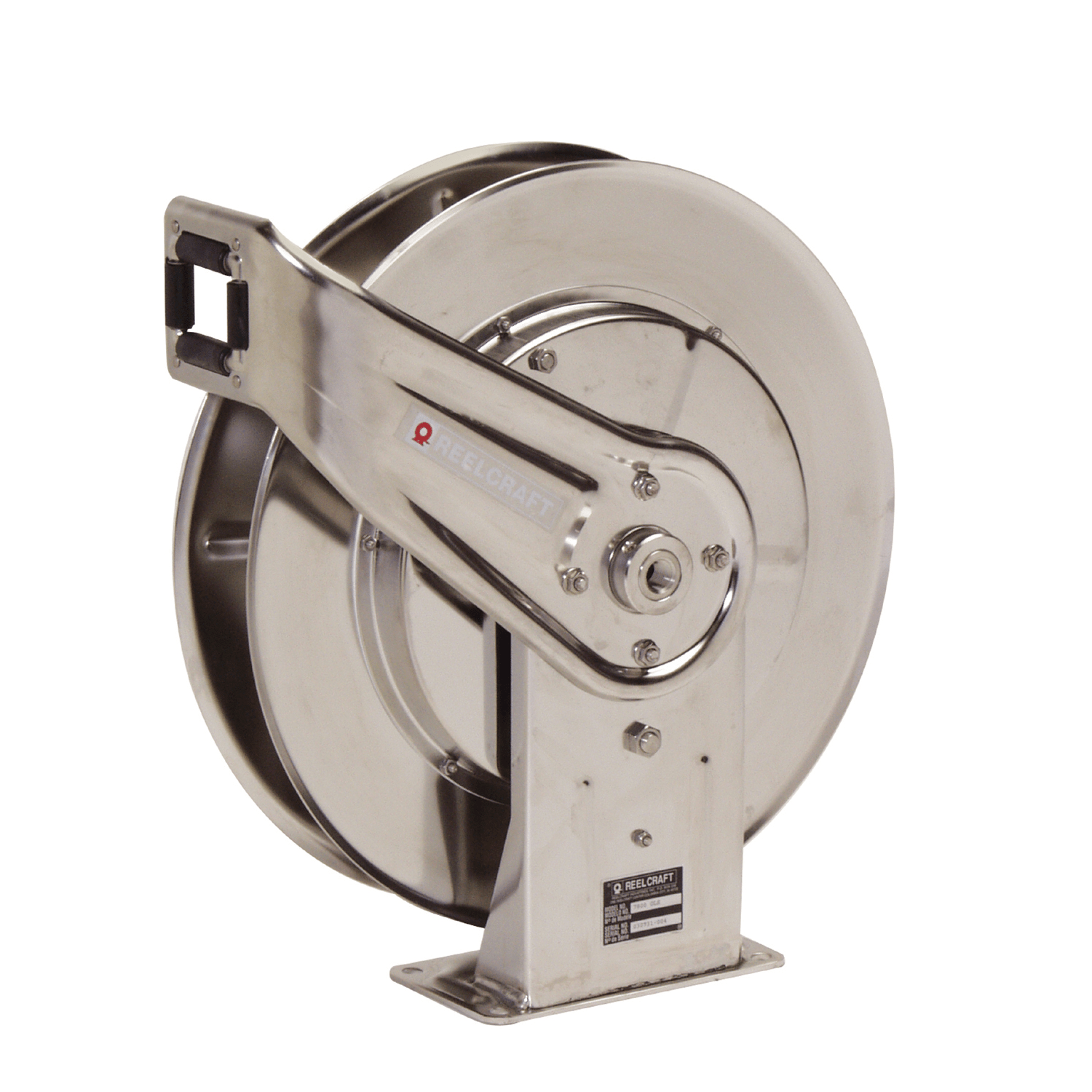

REELCRAFT 7800OLS Hose Reel, Inner Diameter 1/2 Inch, 500 Psi, Hose Length 50 Feet
50 ft.
1/2"
500 psi
Get it by Tuesday, Aug 25
5.00% off
€2,059.66 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hose Reel |
| Base Motion Type | Stationary |
| Bearing Construction | Permanently Lubricated |
| Bearing Type | Permanent Lubricated |
| Bearings | Permanent Lubricated |
| Corrosion Resistant | Yes |
| Drive Type | Spring Return |
| Enclosed | No |
| Fasteners Included | No |
| Features | Heavy Duty Stainless Steel Reel |
| Finish | Stainless Steel |
| For Dual Hose | No |
| Height | 20 1/4" |
| Hose Capacity | 50 ft. |
| Hose Inside Dia. | 1/2" |
| Hose Length | 50 ft. |
| Hose Outlet (in.) | 1/2" (F)NPT |
| Hose Reel Primary Application | Washdown |
| Hose Reel Type | Free Standing Hose Reel, Vehicle, Wall Mount Hose Reel |
| Housing Material | Stainless Steel |
| Included Hose | No |
| Included Leader Hose | No |
| Latch Type | Spring Loaded |
| Length | 19 3/4" |
| Material | Stainless Steel |
| Max. Operating Pressure | 500 psi |
| Max. Operating Temp. | 210°F |
| Max. Pressure | 500 psi |
| Max. Temp. | 150°F |
| Min. Operating Temp. | -25°F |
| Mount Base Height | 9" |
| Mount Base Width | 5" |
| Mount Hole Dia. | 1/2" |
| Mounting | Ceiling, Floor, Wall |
| Mounting Hole Center To Center Height | 3 7/8" |
| Mounting Hole Center To Center Width | 7 7/8" |
| No. Of Guide Arms | 1 |
| No. Of Mount Holes | 4 |
| Overall Height | 20 1/4" |
| Overall Length | 19 3/4" |
| Overall Width | 7" |
| Pedestal Type | Single Pedestal |
| Product Datasheet | reelcraft-7800ols.pdf |
| Reel Color | Silver |
| Reel Dia. | 9 1/2" |
| Reel Finish | Polished |
| Reel Material | Stainless Steel |
| Reel Width | 7" |
| Seal Material | Viton |
| Seal Type | Viton |
| Speed Limited Retraction | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1/2" |
| Swivel Inlet Thread Size | 1/2"-14 |
| Swivel Inlet Type | NPT |
| Swivel Material | Stainless Steel |
| Swivel Outlet Gender | Female |
| Swivel Outlet Size | 1/2" |
| Swivel Outlet Thread Size | 1/2"-14 |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
| Width | 7" |
Shipping Info:
| Ship weight (kg) | 19.24 |
| Ship height (cm) | 56.64 |
| Ship length (cm) | 57.15 |
| Ship width (cm) | 21.08 |
| HS code | 3917390050 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Hose Inside Dia. | Swivel Material | Max. Pressure | Overall Height | Overall Width | Housing Material | Max. Temp. | Hose | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
UR7850OLB | 1/2" | Stainless Steel | 300 psi | 20 1/4" | 7" | Steel | 150°F | - | €1,833.73 | |
 |
UR7925OLB | 3/4" | Stainless Steel | 300 psi | 20 1/4" | 7" | Steel | 150°F | - | €1,991.48 | |
 |
PW7600OHP | 3/8" | Nickel Plated Steel | 4500 psi | 20 1/4" | 7" | Steel | 400°F | - | €1,023.17 | |
|
F7925OLP | 3/4" | Nickel Plated Steel | 250 psi | 20 1/4" | 7" | - | 150°F | - | €1,090.09 | |
 |
7650OLP | 3/8" | Nickel Plated Steel | 300 psi | 20 1/4" | 7" | - | 150°F | - | €810.03 | |
|
7850OLP | 1/2" | Nickel Plated Steel | 300 psi | 20 1/4" | 7" | - | 150°F | - | €875.74 | |
 |
7600OHP | 3/8" | Nickel Plated Steel | 5000 psi | 20 1/4" | 7" | - | 210°F | - | €1,171.66 |
