REELCRAFT L 4545 123 3AC Power Cord Reel, Single Receptacle, 12 AWG, 3 Conductors, 45 ft. Length
Get it by Tuesday, Sep 1
Payment
Delivery
Product Specifications:
| Item | Cord Reel |
| Amps | 20A |
| Cable Length | 45 ft. |
| Cord Ending | Single Receptacle |
| Cord/cable Included | Yes |
| Dimensions A | 12 7/8" |
| Dimensions B | 12.625" |
| Dimensions C | 8" |
| Dimensions D | 2.5" |
| Dimensions E | 9 3/8" |
| Dimensions F | 1.75" |
| No. Of Conductors | 3 |
| Product Datasheet | reelcraft-l45451233.pdf |
| Series | L 4000 Series |
| Type | SJEOOW |
| Voltage | 125V |
| Wire Size | 12 AWG |
Shipping Info:
| Ship weight (kg) | 12.6 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 44.45 |
| Ship width (cm) | 40.64 |
| Country of Origin | US |
Product Details:

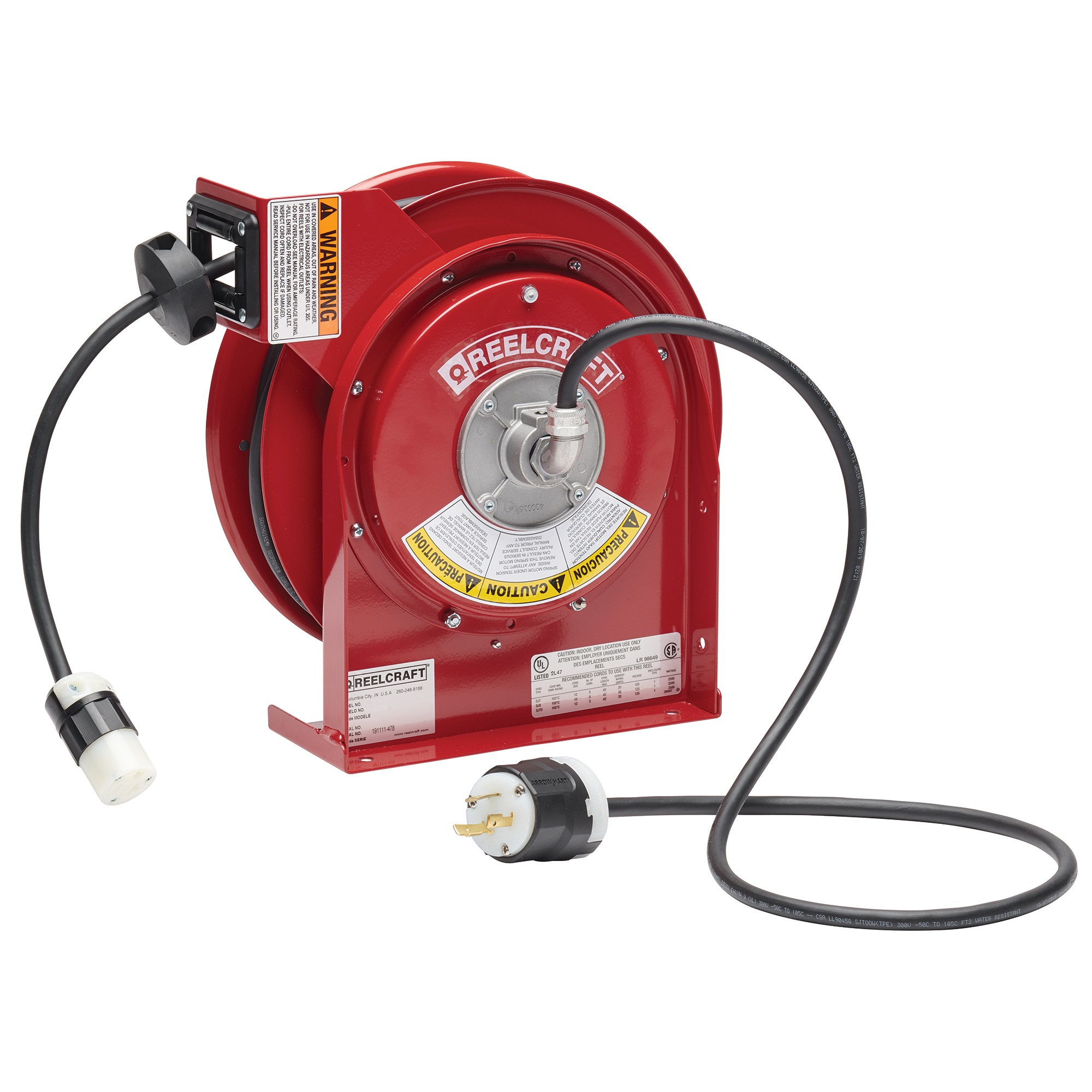

,Reelcraft’s Series L 4000 NEMA 5-20R single receptacle power cord reel includes a 20 amp single receptacle. The reel is supplied with a 4-5 foot pigtail that includes a NEMA L5-20P inlet twist lock plug. For indoor, non-weather tight applications only. *UL/CSA approved*, , ,Reinforced steel – The robotically welded steel base offers maximum strength and consistent quality., ,Heavy-duty collector ring – A robust collector ring assures maximum conductivity., ,Long life drive spring – Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to ensure there are no imperfections offering maximum service life., ,Quality finish and corrosion resistant – Individually powder coated components offer maximum protection from premature corrosion., ,Made in USA, , ,*Reel is shipped in the top wind position. The reel image is shown in side wind position.,
Documentation:
