GRAINGER Flange Gaskets
Filter
A
B
C
D
E
F
G
H| Style | Model | Inside Dia. | Outside Dia. | Min. Operating Temp. | Max. Operating Temp. | Color | For Pipe Size | Gasket Material | Gasket Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

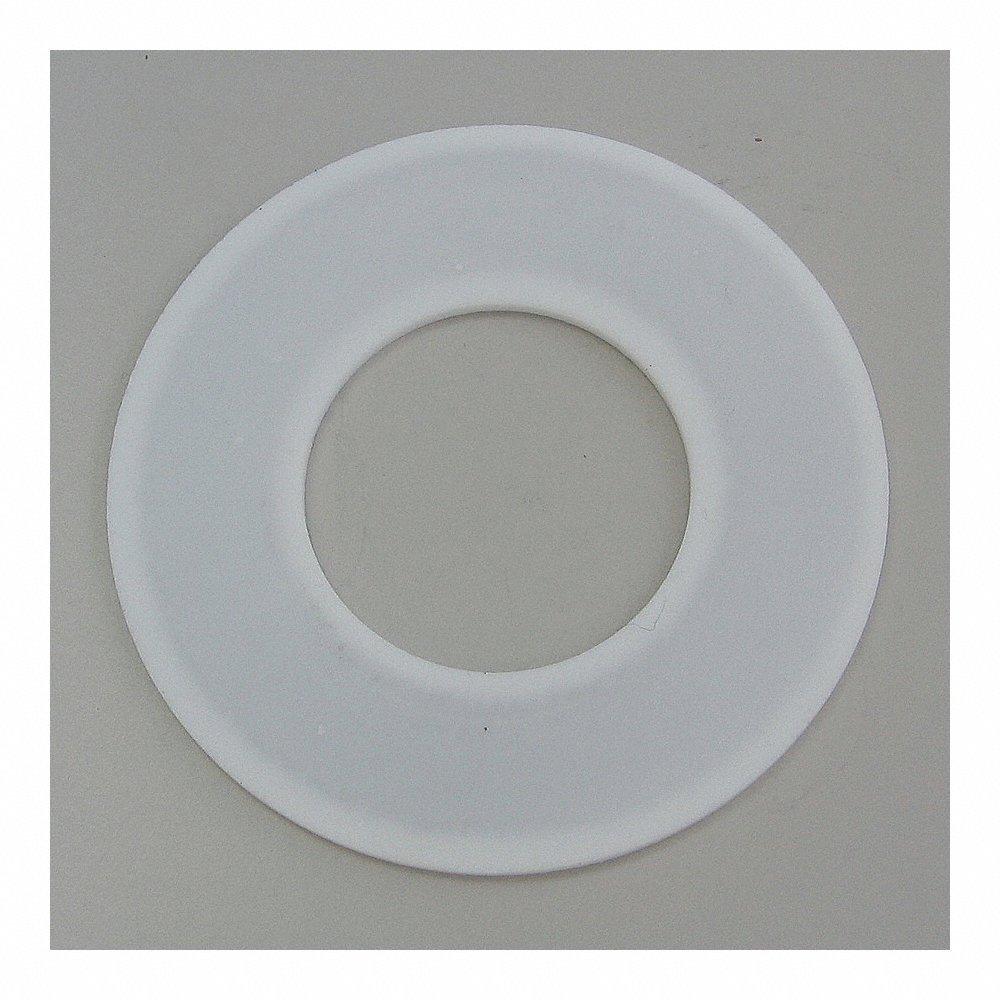

| A | TX-150-0050-N | - | - | - | - | - | - | - | - | €21.18 | |

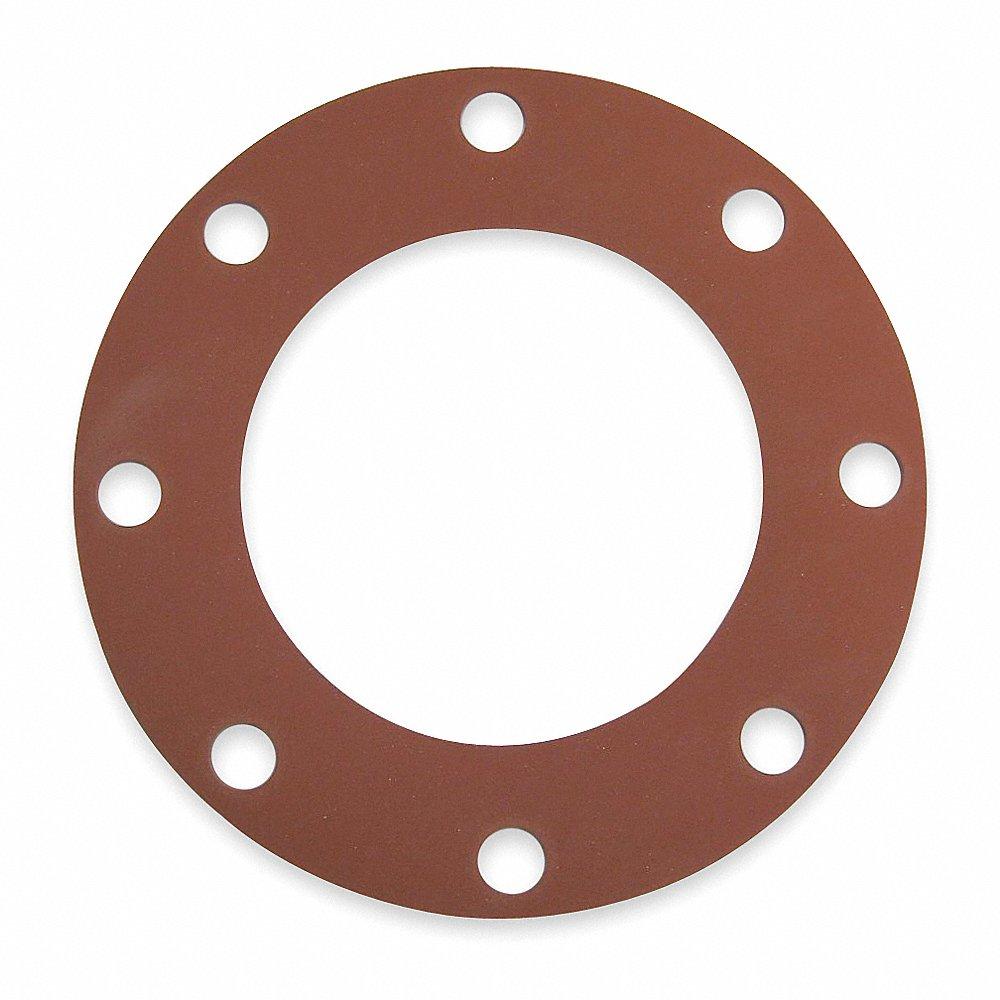

| B | 4CYX4 | - | - | - | - | - | - | - | - | €30.01 | |

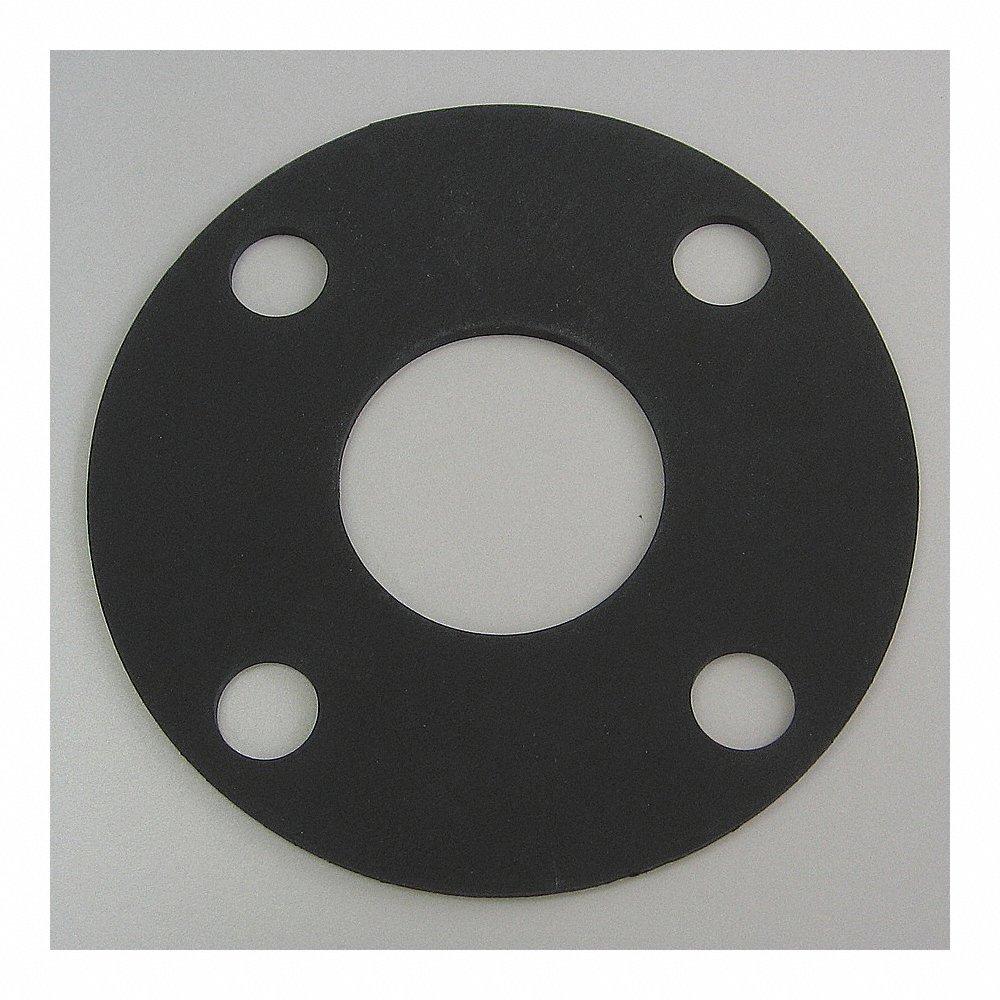

| C | 4CYV3 | - | - | - | - | - | - | - | - | €16.70 | |
| D | 4CYU1 | 1 1/16" | 3 7/8" | -25°F | 170°F | White | 3/4" | Buna N | Full Face Gasket | €1.97 | |
| A | TX-150-0075-N | 1 1/16" | 2 1/4" | -250°F | 500°F | White | 3/4" | PTFE | Ring Gasket | €23.93 | |
| E | 4CYW5 | 1 1/16" | 3 7/8" | -80°F | 450°F | Red | 3/4" | Silicone | Full Face Gasket | €3.37 | |
| F | FLEXIGRAF-RG-0150-062-0075 | 1 1/16" | 2 1/4" | -400°F | 850°F | Black | 3/4" | Graphite | Ring Gasket | €1.72 | |
| G | FLEXIGRAF-RG-0150-125-0075 | 1 1/16" | 2 1/4" | -400°F | 850°F | Black | 3/4" | Graphite | Ring Gasket | €3.43 | |
| C | 4CYV4 | 1 5/16" | 4 1/4" | -10°F | 400°F | Black | 1" | FKM | Full Face Gasket | €19.49 | |
| A | TX-150-0100-N | 1 5/16" | 2 5/8" | -250°F | 500°F | White | 1" | PTFE | Ring Gasket | €24.98 | |
| E | 4CYW6 | 1 5/16" | 4 1/4" | -80°F | 450°F | Red | 1" | Silicone | Full Face Gasket | €4.35 | |

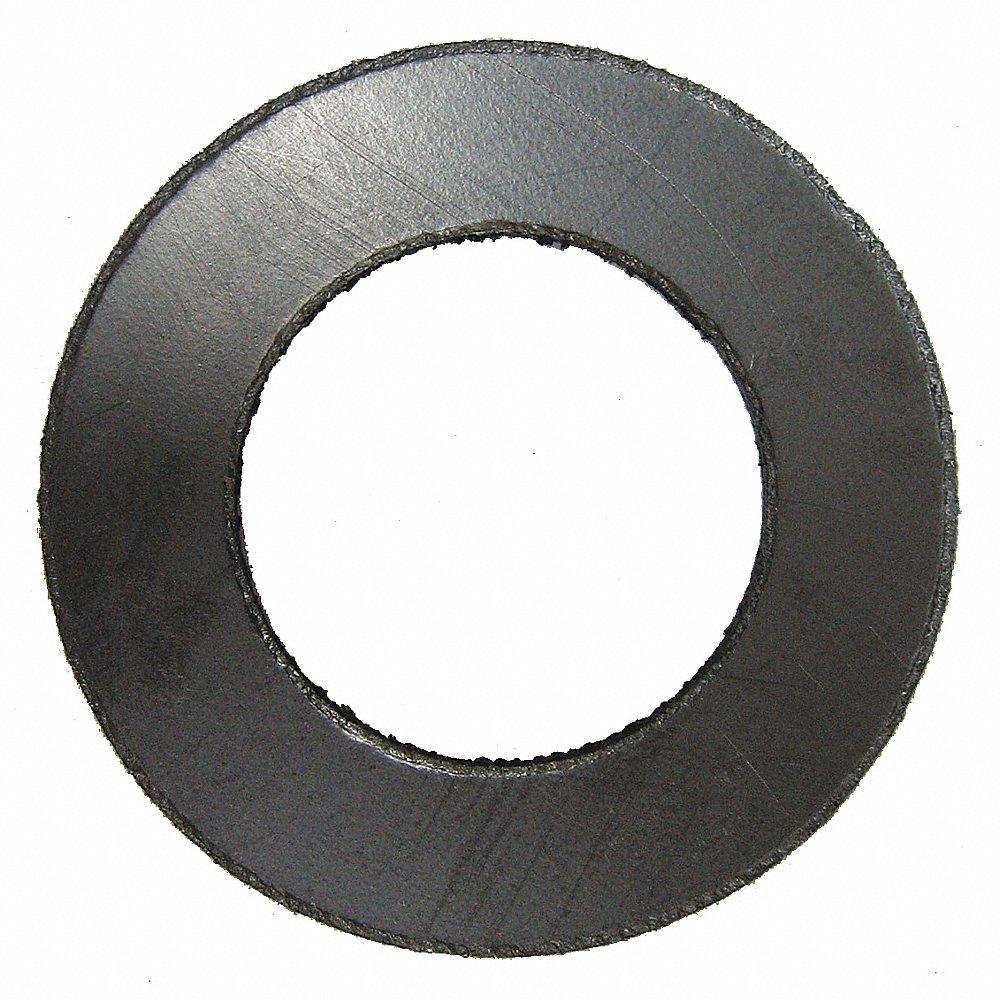

| F | FLEXIGRAF-RG-0150-062-0100 | 1 5/16" | 2 5/8" | -400°F | 850°F | Black | 1" | Graphite | Ring Gasket | €2.01 | |
| G | FLEXIGRAF-RG-0150-125-0100 | 1 5/16" | 2 5/8" | -400°F | 850°F | Black | 1" | Graphite | Ring Gasket | €4.02 | |
| D | 4CYU2 | 1 5/16" | 4 1/4" | -25°F | 170°F | White | 1" | Buna N | Full Face Gasket | €2.35 | |
| D | 4CYU3 | 1 7/8" | 5" | -25°F | 170°F | White | 1 1/2" | Buna N | Full Face Gasket | €3.31 | |
| C | 4CYV5 | 1 7/8" | 5" | -10°F | 400°F | Black | 1 1/2" | FKM | Full Face Gasket | €21.94 | |
| E | 4CYW7 | 1 7/8" | 5" | -80°F | 450°F | Red | 1 1/2" | Silicone | Full Face Gasket | €6.24 | |
| A | TX-150-0150-N | 1 29/32" | 3 3/8" | -250°F | 500°F | White | 1 1/2" | PTFE | Ring Gasket | €32.17 | |
| G | FLEXIGRAF-RG-0150-125-0150 | 1 29/32" | 3 3/8" | -400°F | 850°F | Black | 1 1/2" | Graphite | Ring Gasket | €6.30 | |
| F | FLEXIGRAF-RG-0150-062-0150 | 1 29/32" | 3 3/8" | -400°F | 850°F | Black | 1 1/2" | Graphite | Ring Gasket | €3.18 | |

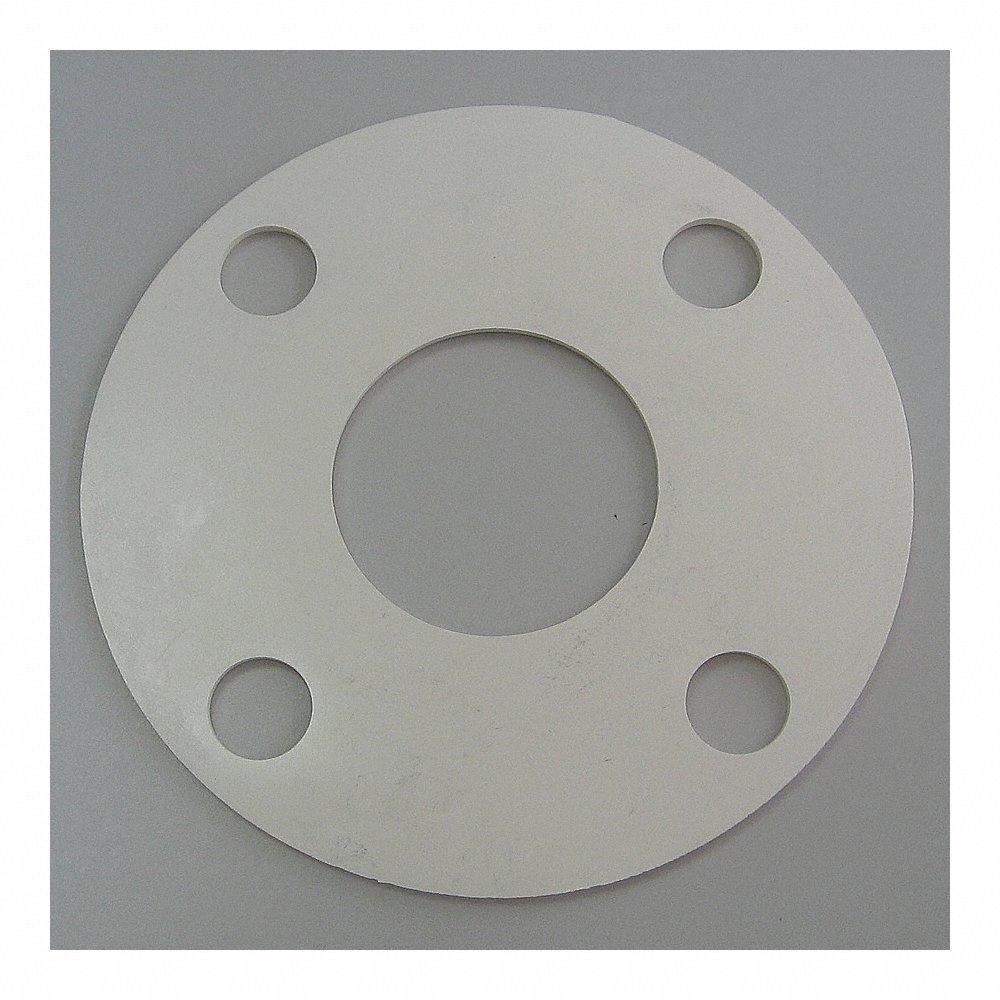

| D | 4CYU4 | 2 3/8" | 6" | -25°F | 170°F | White | 2" | Buna N | Full Face Gasket | €4.79 | |
| F | FLEXIGRAF-RG-0150-062-0200 | 2 3/8" | 4 1/8" | -400°F | 850°F | Black | 2" | Graphite | Ring Gasket | €4.10 | |
| C | 4CYV6 | 2 3/8" | 6" | -10°F | 400°F | Black | 2" | FKM | Full Face Gasket | €35.83 | |
| E | 4CYW8 | 2 3/8" | 6" | -80°F | 450°F | Red | 2" | Silicone | Full Face Gasket | €10.26 | |
| A | TX-150-0200-N | 2 3/8" | 4 1/8" | -250°F | 500°F | White | 2" | PTFE | Ring Gasket | €34.25 | |
| G | FLEXIGRAF-RG-0150-125-0200 | 2 3/8" | 4 1/8" | -400°F | 850°F | Black | 2" | Graphite | Ring Gasket | €8.23 | |

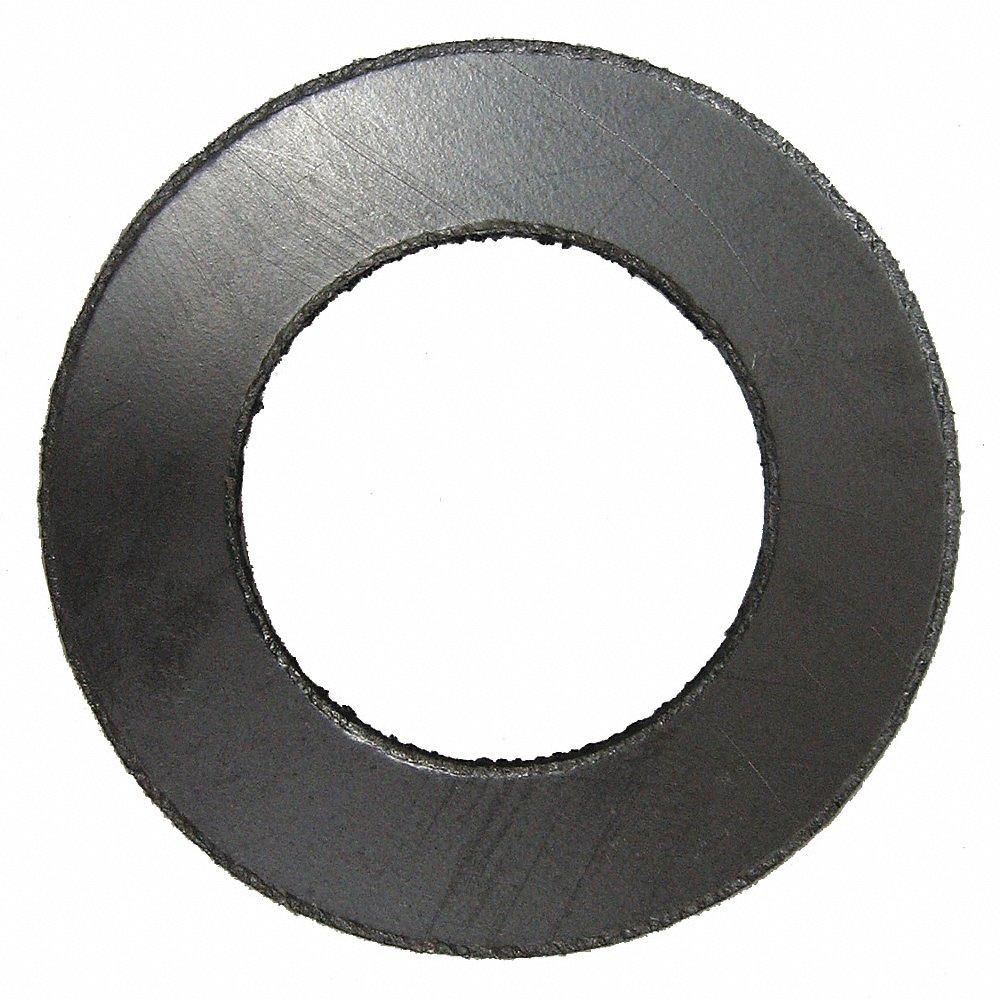

| G | FLEXIGRAF-RG-0150-125-0250 | 2 7/8" | 4 7/8" | -400°F | 850°F | Black | 2 1/2" | Graphite | Ring Gasket | €10.92 | |
| A | TX-150-0250-N | 2 7/8" | 4 7/8" | -250°F | 500°F | White | 2 1/2" | PTFE | Ring Gasket | €46.97 | |
| C | 4CYV7 | 2 7/8" | 7" | -10°F | 400°F | Black | 2 1/2" | FKM | Full Face Gasket | €47.35 | |
| F | FLEXIGRAF-RG-0150-062-0250 | 2 7/8" | 4 7/8" | -400°F | 850°F | Black | 2 1/2" | Graphite | Ring Gasket | €5.50 | |
| D | 4CYU5 | 2 7/8" | 7" | -25°F | 170°F | White | 2 1/2" | Buna N | Full Face Gasket | €6.53 | |
| E | 4CYW9 | 2 7/8" | 7" | -80°F | 450°F | Red | 2 1/2" | Silicone | Full Face Gasket | €12.18 | |
| A | TX-150-0300-N | 3 1/2" | 5 3/8" | -250°F | 500°F | White | 3" | PTFE | Ring Gasket | €50.86 | |
| G | FLEXIGRAF-RG-0150-125-0300 | 3 1/2" | 5 3/8" | -400°F | 850°F | Black | 3" | Graphite | Ring Gasket | €11.68 | |
| D | 4CYU6 | 3 1/2" | 7 1/2" | -25°F | 170°F | White | 3" | Buna N | Full Face Gasket | €7.43 | |
| C | 4CYV8 | 3 1/2" | 7 1/2" | -10°F | 400°F | Black | 3" | FKM | Full Face Gasket | €51.37 | |
| E | 4CYX1 | 3 1/2" | 7 1/2" | -80°F | 450°F | Red | 3" | Silicone | Full Face Gasket | €14.13 | |
| F | FLEXIGRAF-RG-0150-062-0300 | 3 1/2" | 5 3/8" | -400°F | 850°F | Black | 3" | Graphite | Ring Gasket | €5.88 | |
| G | FLEXIGRAF-RG-0150-125-0400 | 4 1/2" | 6 7/8" | -400°F | 850°F | Black | 4" | Graphite | Ring Gasket | €18.61 | |
| D | 4CYU7 | 4 1/2" | 9" | -25°F | 170°F | White | 4" | Buna N | Full Face Gasket | €10.73 | |
| A | TX-150-0400-N | 4 1/2" | 6 7/8" | -250°F | 500°F | White | 4" | PTFE | Ring Gasket | €59.00 | |

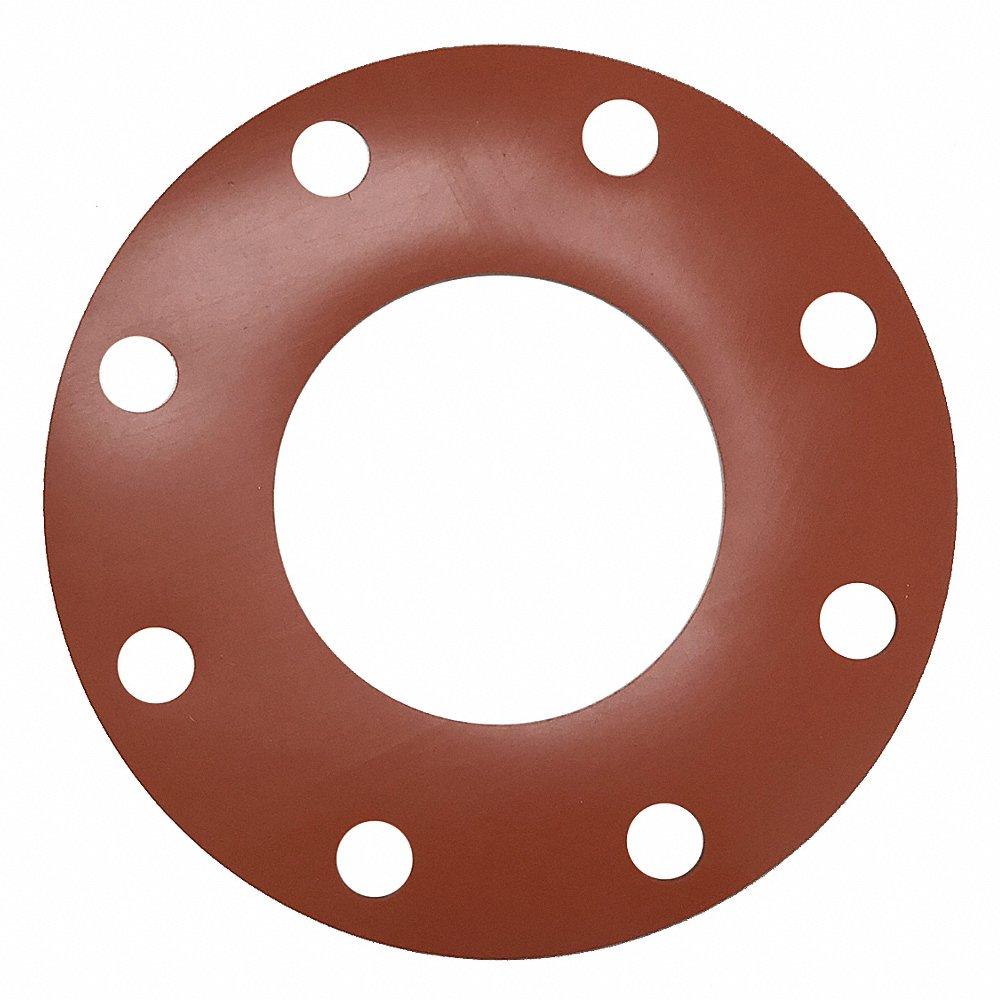

| H | 4CYX2 | 4 1/2" | 9" | -80°F | 450°F | Red | 4" | Silicone | Full Face Gasket | €20.27 | |
| F | FLEXIGRAF-RG-0150-062-0400 | 4 1/2" | 6 7/8" | -400°F | 850°F | Black | 4" | Graphite | Ring Gasket | €9.47 | |
| C | 4CYV9 | 4 1/2" | 9" | -10°F | 400°F | Black | 4" | FKM | Full Face Gasket | €82.50 | |
| F | FLEXIGRAF-RG-0150-062-0500 | 5 9/16" | 7 3/4" | -400°F | 850°F | Black | 5" | Graphite | Ring Gasket | €11.12 | |
| D | 4CYU8 | 5 9/16" | 10" | -25°F | 170°F | White | 5" | Buna N | Full Face Gasket | €13.24 | |
| C | 4CYW1 | 5 9/16" | 10" | -10°F | 400°F | Black | 5" | FKM | Full Face Gasket | €100.43 | |

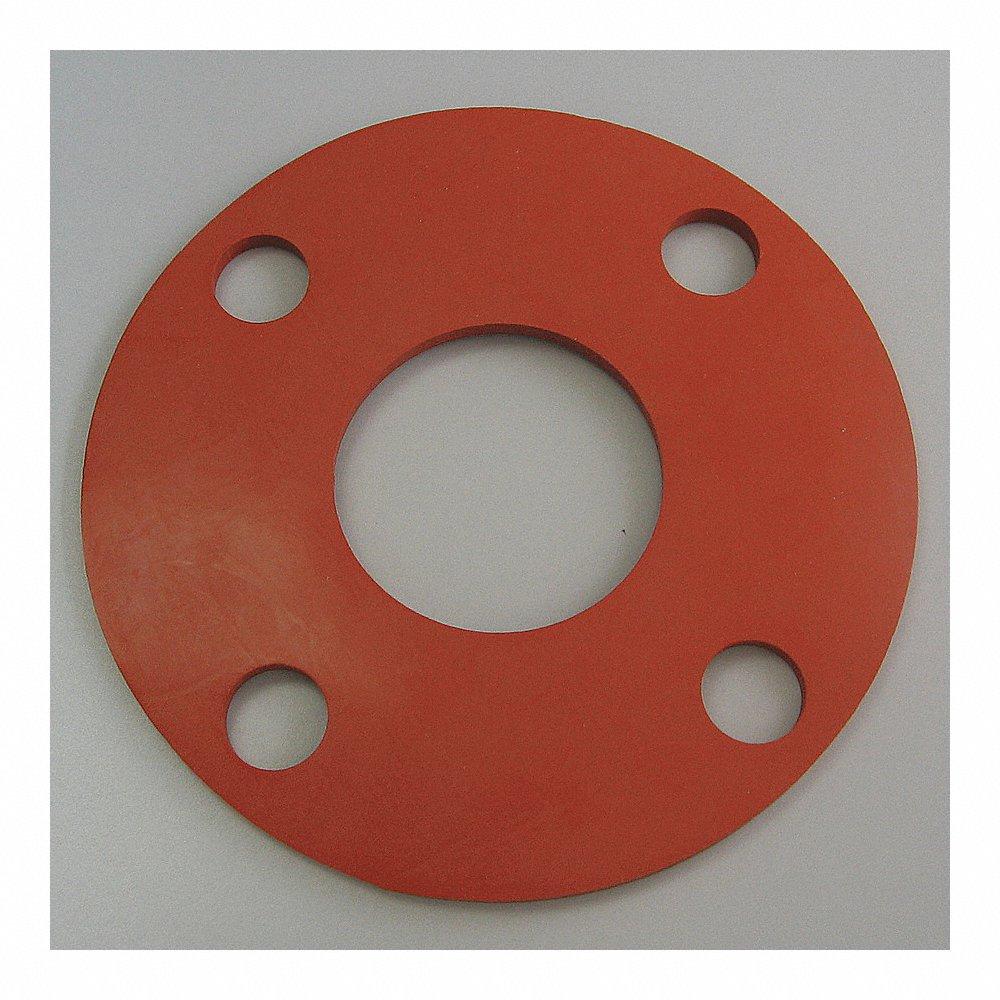

| E | 4CYX3 | 5 9/16" | 10" | -80°F | 450°F | Red | 5" | Silicone | Full Face Gasket | €24.26 | |
| A | TX-150-0500-N | 5 9/16" | 7 3/4" | -250°F | 500°F | White | 5" | PTFE | Ring Gasket | €66.63 | |
| D | 4CYU9 | 6 5/8" | 11" | -25°F | 170°F | White | 6" | Buna N | Full Face Gasket | €16.01 | |
| A | TX-150-0600-N | 6 5/8" | 8 3/4" | -250°F | 500°F | White | 6" | PTFE | Ring Gasket | €75.61 | |
| G | FLEXIGRAF-RG-0150-125-0600 | 6 5/8" | 8 3/4" | -400°F | 850°F | Black | 6" | Graphite | Ring Gasket | €24.48 | |
| C | 4CYW2 | 6 5/8" | 11" | -10°F | 400°F | Black | 6" | FKM | Full Face Gasket | €117.70 | |
| F | FLEXIGRAF-RG-0150-062-0600 | 6 5/8" | 8 3/4" | -400°F | 850°F | Black | 6" | Graphite | Ring Gasket | €12.41 | |
| D | 4CYV1 | 8 5/8" | 13 1/2" | -25°F | 170°F | White | 8" | Buna N | Full Face Gasket | €24.13 | |
| F | FLEXIGRAF-RG-0150-062-0800 | 8 5/8" | 11" | -400°F | 850°F | Black | 8" | Graphite | Ring Gasket | €21.20 | |
| A | TX-150-0800-N | 8 5/8" | 11" | -250°F | 500°F | White | 8" | PTFE | Ring Gasket | €113.65 | |
| G | FLEXIGRAF-RG-0150-125-0800 | 8 5/8" | 11" | -400°F | 850°F | Black | 8" | Graphite | Ring Gasket | €42.24 | |
| C | 4CYW3 | 8 5/8" | 13 1/2" | -10°F | 400°F | Black | 8" | FKM | Full Face Gasket | €174.83 | |
| E | 4CYX5 | 8 5/8" | 13 1/2" | -80°F | 450°F | Red | 8" | Silicone | Full Face Gasket | €44.39 | |
| C | 4CYV2 | 13/16" | 3 1/2" | -10°F | 400°F | Black | 1/2" | FKM | Full Face Gasket | €15.05 |
