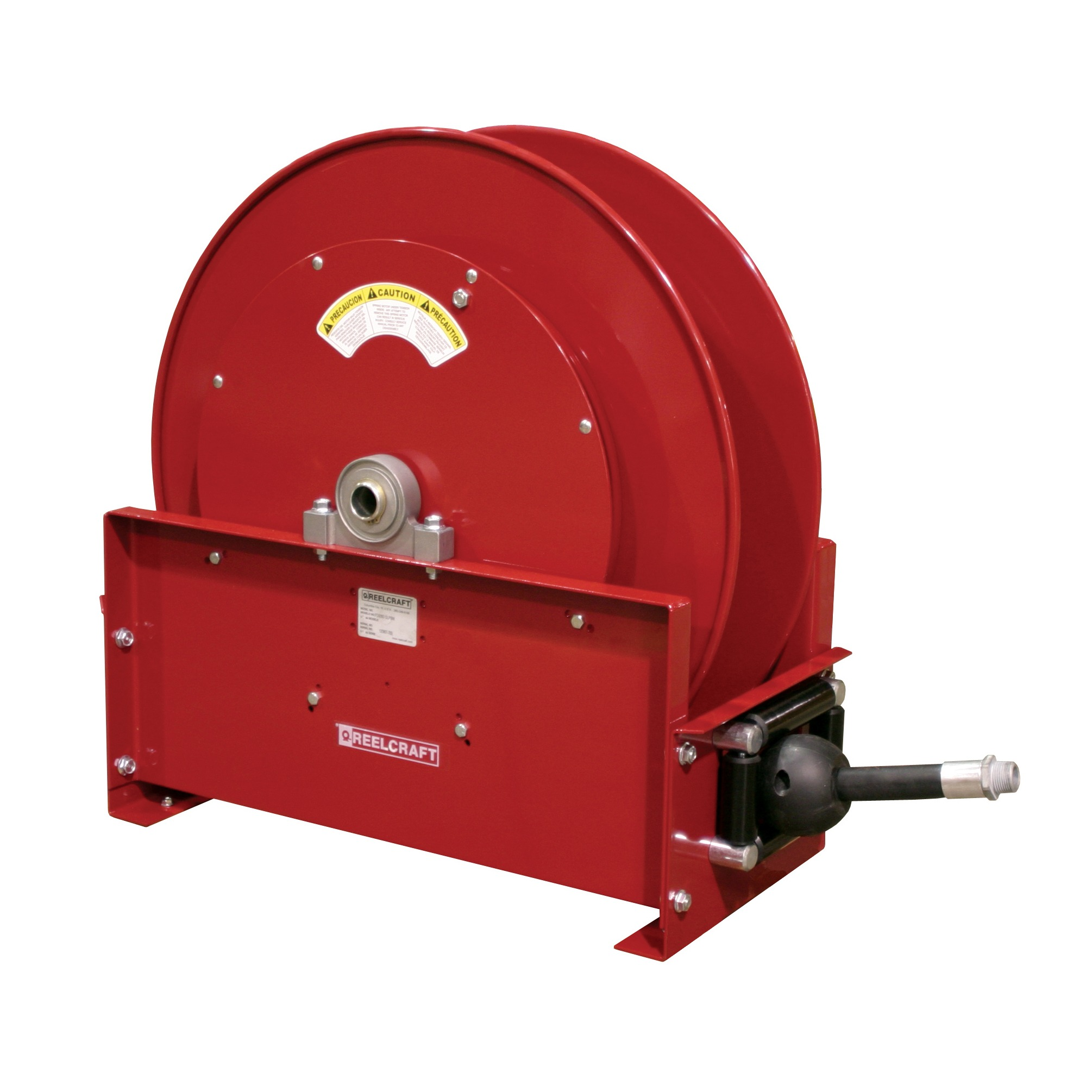

REELCRAFT FE9450 OLPBW Hose Reel, Inner Diameter 1 Inch, 50 Psi, Hose Length 50 Feet
Get it by Thursday, Aug 20
Payment
Delivery
Product Specifications:
| Item | Hose Reel |
| Dimensions A | 26 3/8" |
| Dimensions B | 26.25" |
| Dimensions C | 22.25" |
| Dimensions D | 7.75" |
| Dimensions E | 12" |
| Dimensions F | 24 1/8" |
| Dimensions G | 4.75" |
| Guide Roller Position | Bottom Wind |
| Hose | Yes |
| Hose End Size | 1" |
| Hose End Type | MNPT |
| Hose Included | Yes |
| Hose Inside Dia. | 1" |
| Hose Length | 50 ft. |
| Hose Outside Dia. | 1 1/2" , 1.5" |
| Inlet Size | 1" |
| Inlet Type | FNPT |
| Max. Pressure | 50 psi |
| Max. Temp. | 150°F |
| Mounting | Ceiling, Floor, Wall |
| Pressure | 50 psi |
| Product Datasheet | reelcraft-f7925olp.pdf |
| Reel Outlet Size | 1" |
| Reel Outlet Type | FNPT |
| Series | 9000 Series |
Shipping Info:
| Ship weight (kg) | 70.65 |
| Ship height (cm) | 73.66 |
| Ship length (cm) | 71.12 |
| Ship width (cm) | 34.29 |
| Country of Origin | US |
Product Details:
,Reelcraft’s spring retractable fuel delivery hose reels, equipped with Viton seals, incorporate metal forms to ensure the greatest possible strength and are ideal for mobile and permanent-mount applications. These rugged, corrosion-resistant reels are suitable for a wide variety of fuel applications including E85. Series FE9000 reels are supplied with our ball-bearing style swivel. Contact Reelcraft for top wind and side wind hose guide models. ,NOTE:, Not recommended for jet fuel., , ,Substantial base frame – The full-width frame has the greatest amount of mounting area and overall strength of reels within its class., ,Full flow stress-free swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to ensure maximum service life., ,Quality finish and corrosion resistance – Individually powder-coated components offer the maximum protection from premature corrosion., ,The reel is shipped in the bottom wind position with a right-hand inlet., ,Made in USA, , ,NOTE:, Reelcraft Series 9000 reels only ship LTL. Small parcel shipments are not available for this model.,
Documentation:
Product Variants
| Product | Model | Hose Inside Dia. | Max. Pressure | Pressure | Max. Temp. | Hose | Hose Included | Mounting | Guide Roller Position | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
FD9450 OLPBW | 1" | - | 50 psi | 150°F | Yes | Yes | Ceiling, Floor, Wall | Bottom Wind | - | RFQ
|
 |
FE9400 OLPBW | 1" | 500 psi | 500 psi | 210°F | No | No | Ceiling, Floor, Wall | Bottom Wind | €1,678.56 | |
 |
FD9300 OLPBW | 3/4" | 500 psi | 50 psi | 210°F | No | - | Ceiling, Floor, Wall | Bottom Wind | - | RFQ
|
|
FE9300 OLPBW | 3/4" | 500 psi | 500 psi | 210°F | No | - | Ceiling, Floor, Wall | Bottom Wind | €995.32 | |
 |
FE9350 OLPBW | 3/4" | 500 psi | 50 psi | 150°F | Yes | - | Ceiling, Floor, Wall | Bottom Wind | €1,476.96 |
