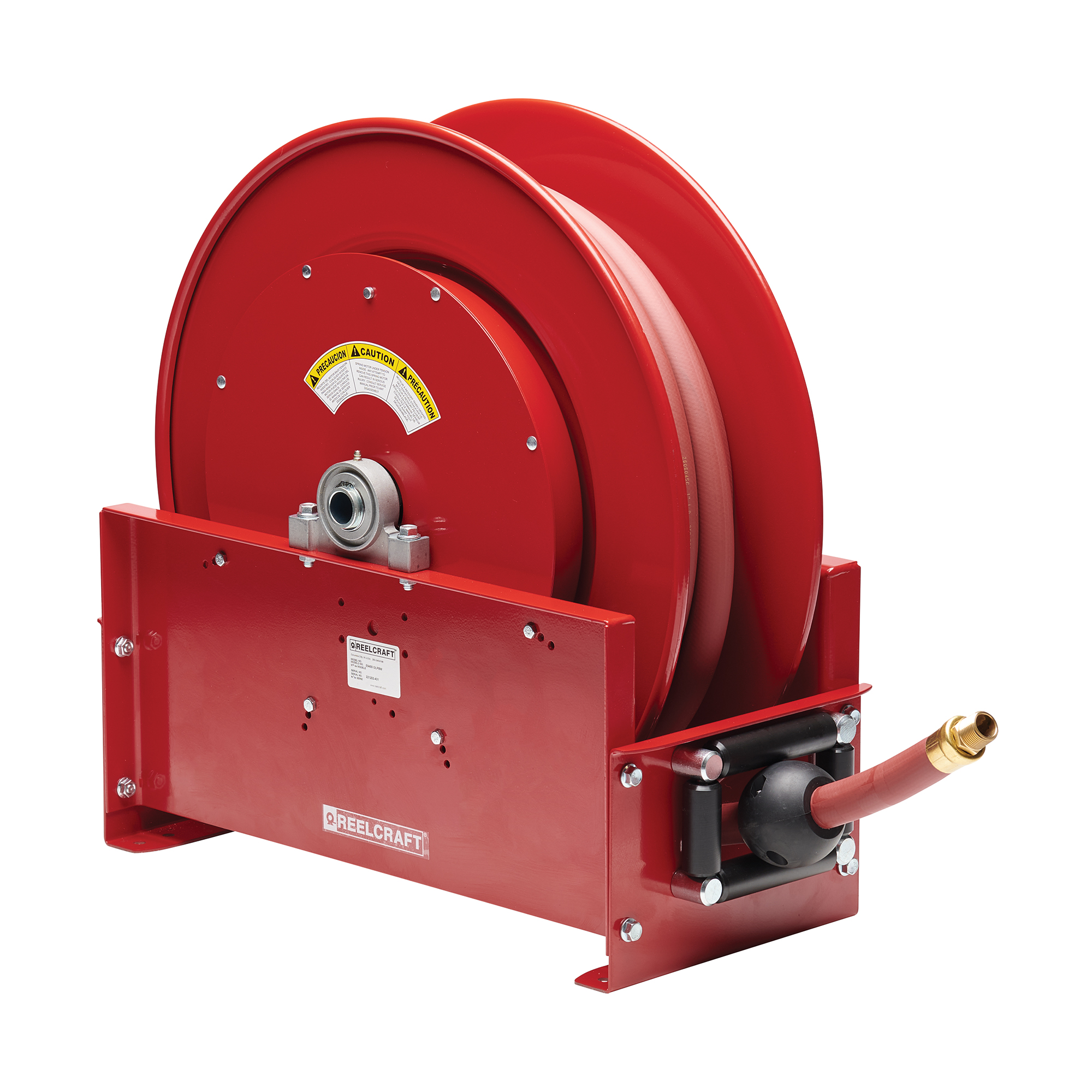

REELCRAFT E9350 OLPBW Ultimate Duty Hose Reel, 3/4 Inch x 50 Feet
Get it by Friday, Aug 21
Payment
Delivery
Product Specifications:
| Item | Hose Reel |
| Dimensions A | 26 3/8" |
| Dimensions B | 26.25" |
| Dimensions C | 22.25" |
| Dimensions D | 7.75" |
| Dimensions E | 12" |
| Dimensions F | 24 1/8" |
| Dimensions G | 4.75" |
| Guide Roller Position | Bottom Wind |
| Hose | Yes |
| Hose End Size | 3/4" |
| Hose End Type | MNPT |
| Hose Included | Yes |
| Hose Inside Dia. | 3/4" |
| Hose Length | 50 ft. |
| Hose Outside Dia. | 1.075" |
| Inlet Size | 3/4" |
| Inlet Type | FNPT |
| Max. Pressure | 250 psi |
| Max. Temp. | 150°F |
| Mounting | Ceiling, Floor, Wall |
| Pressure | 250 psi |
| Product Datasheet | reelcraft-e9399olpbw.pdf |
| Reel Outlet Size | 3/4" |
| Reel Outlet Type | FNPT |
| Series | 9000 Series |
| Speed Limited Retraction | No |
| Swivel Material | Steel |
Shipping Info:
| Ship weight (kg) | 63 |
| Ship height (cm) | 73.66 |
| Ship length (cm) | 71.12 |
| Ship width (cm) | 34.29 |
Product Details:
,Reelcraft’s Series E9000 mobile base hose reels offer the greatest amount of stability. Ideal for service trucks, permanent service, or plant work areas. A durable baked-on powder coat finish produces a rugged corrosion-resistant product suitable for a wide variety of heavy-duty applications. Contact Reelcraft for top wind and side wind hose guide models., , ,Substantial base frame – The full-width frame has the greatest amount of mounting area and overall strength of reels within its class., ,Full flow stress-free swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to ensure maximum service life., ,Robust latching mechanism – Latch and ratchet are made of heavy-duty cast aluminum with substantial surface area to limit the opportunity for premature wear., ,Reels are shipped in the bottom wind position with a right-hand inlet., , ,NOTE:, Reelcraft Series 9000 reels only ship LTL. Small parcel shipments are not available for this model.,
Documentation:
Product Variants
| Product | Model | Hose Inside Dia. | Max. Pressure | Swivel Material | Pressure | Max. Temp. | Hose | Reel Outlet Size | Dimensions E | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D9399 OLPBW | 3/4" | 250 psi | Steel | 250 psi | 150°F | Yes | 3/4" | 13 3/8" | - | RFQ
|
 |
E9100 OHPBW | 3/8" | 5000 psi | - | 5000 psi | 210°F | No | - | - | - | RFQ
|
 |
E9200 OLPBW | 1/2" | 500 psi | - | 500 psi | 210°F | No | 1/2" | 12" | €1,002.25 | |
 |
E9175 OHPBW | 3/8" | - | - | 4800 psi | 210°F | Yes | - | - | - | RFQ
|
 |
E9200 OMPBW | 1/2" | 500 psi | - | 3000 psi | 210°F | No | 1/2" | 12" | €1,066.35 | |
 |
E9275 OMPBW | 1/2" | 3000 psi | - | 3000 psi | 210°F | Yes | 1/2" | 12" | €1,335.76 | |
|
E9275 OLPBW | 1/2" | 300 psi | - | 300 psi | 150°F | Yes | - | - | €1,170.30 |
