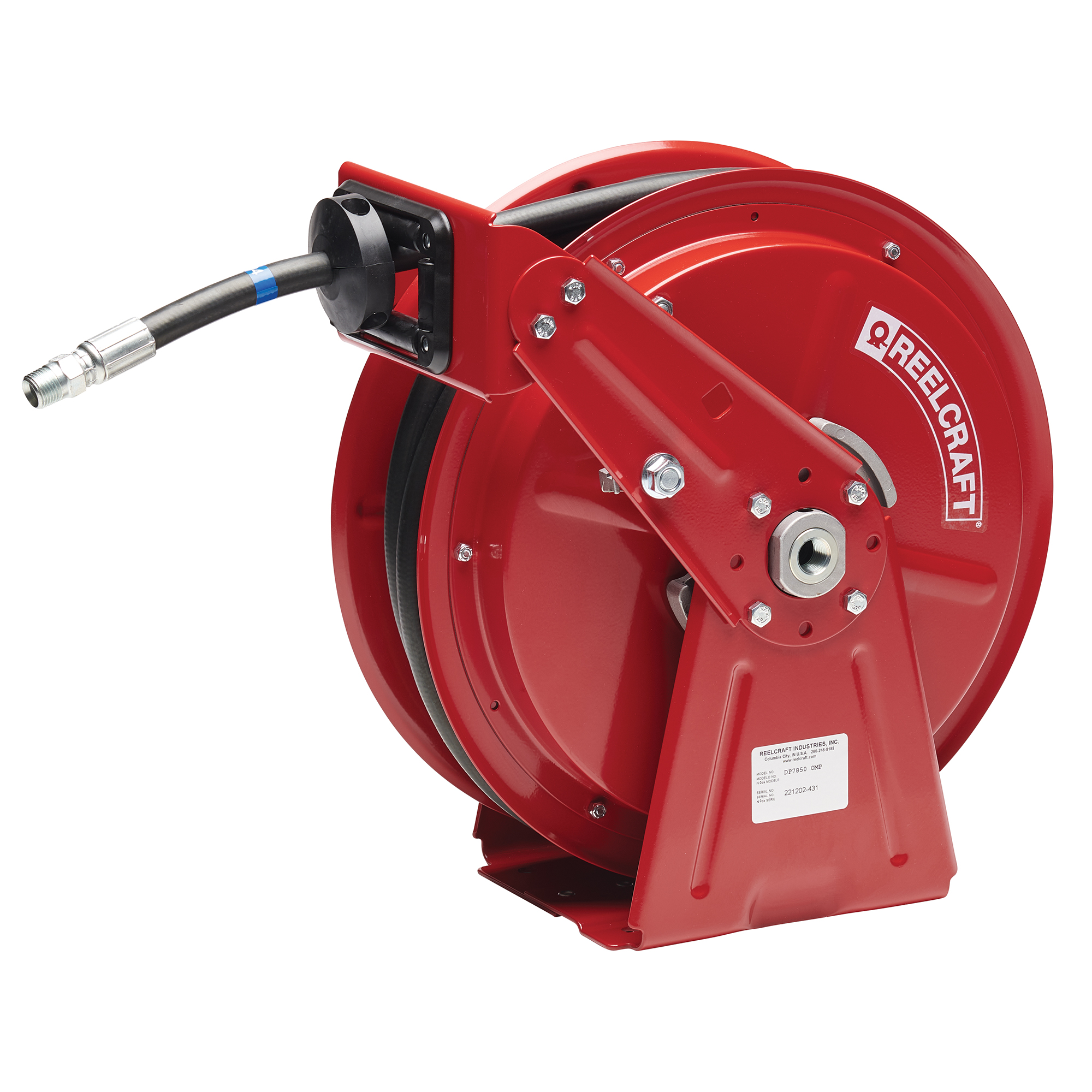

REELCRAFT DP7650OHP Dual Pedestal Hose Reel, Inner Diameter 3/8 Inch, 4800 Psi, Hose Length 50 Feet
Get it by Tuesday, Dec 23
10.00% off
€1,334.45 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hose Reel |
| Base Motion Type | Stationary |
| Bearing Construction | Permanently Lubricated |
| Bearing Type | Permanent Lubricated |
| Corrosion-resistant | Yes |
| Drive Type | Spring Return |
| Duty Rating | Heavy Dual Pedestal, Industrial |
| Enclosed | No |
| Fasteners Included | No |
| Features | Interlocking Base, Non Welded |
| Finish | Powder Coated |
| Fitting Size | 1/4" x 1/4" |
| Fitting Type | NPT x NPT |
| For Dual Hose | No |
| Height | 17" |
| Hose Capacity | 50 ft. |
| Hose Color | Black |
| Hose Cover Material | Synthetic Rubber |
| Hose End Configuration | 1/4" MNPT |
| Hose Fitting A Gender | Male |
| Hose Fitting A Material | Steel |
| Hose Fitting A Size | 1/4" |
| Hose Fitting A Type | NPT |
| Hose Fitting B Gender | Male |
| Hose Fitting B Material | Steel |
| Hose Fitting B Size | 1/4" |
| Hose Fitting B Type | NPT |
| Hose Inside Dia. | 3/8" |
| Hose Length | 50 ft. |
| Hose Outlet (in.) | 1/4" (M)NPT |
| Hose Outside Dia. | 3/4" |
| Hose Reel Primary Application | Grease |
| Hose Reel Type | Ceiling, Floor, Vehicle, Wall Mount Hose Reel |
| Hose Tube Material | Synthetic Rubber |
| Housing Material | Steel |
| Includes | Hose, Bumper |
| Includes Hose | Yes |
| Includes Hose Stop | Yes |
| Includes Leader Hose | No |
| Latch Type | Spring Loaded |
| Length | 16 1/2" |
| Max. Pressure | 4000 psi |
| Max. Temp. | 210°F |
| Maximum Operating Pressure | 4800 psi |
| Minimum Operating Temperature | 32°F |
| Mount Base Height | 9" |
| Mount Base Width | 6 63/64" |
| Mount Hole Diameter | 7/16" |
| Mounting | Bench, Ceiling, Floor, Truck, Wall |
| Mounting Hole Center To Center Height | 7" |
| Mounting Hole Center To Center Width | 4" |
| Number Of Guide Arms | 2 |
| Number Of Mount Holes | 4 |
| Overall Height | 17" |
| Overall Length | 16 1/2" |
| Overall Width | 8" |
| Pedestal Type | Dual Pedestal |
| Product Datasheet | reelcraft-dp5450olp.pdf |
| Reel Color | Red |
| Reel Diameter | 7" |
| Reel Finish | Powder Coated |
| Reel Material | Carbon Steel |
| Reel Width | 8" |
| Seal Material | Neoprene |
| Speed Limited Retraction | No |
| Spiral Hose Guard | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1/2" |
| Swivel Inlet Thread Size | 1/2"-14 |
| Swivel Inlet Type | NPT |
| Swivel Material | Nickel Plated Steel |
| Swivel Outlet Gender | Male |
| Swivel Outlet Size | 1/2" |
| Swivel Outlet Thread Size | 1/2"-14 |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
| Weight | 65 lbs. |
| Width | 8" |
Shipping Info:
| Ship weight (kg) | 29.27 |
| Ship height (cm) | 54.36 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 26.67 |
| HS code | 3917390050 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Swivel Material | Fitting Size | Max. Temp. | Hose Outside Dia. | Hose Inside Dia. | Hose | Pressure | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DP7650OLP | Nickel Plated Steel | 1/4" x 1/4" | 150°F | 5/8" | 3/8" | - | - | 8" | €1,051.47 | |
|
DP7850OLP | Nickel Plated Steel | 3/8" x 3/8" | 150°F | 3/4" | 1/2" | - | - | 9" | €992.81 | |
|
DP7850OMP | Nickel Plated Steel | 1/2" x 1/2" | 210°F | 13/16" | 1/2" | - | - | 9" | €1,460.60 | |
 |
DP7400 OHP | Steel | - | 210°F | 0.58" | 1/4" | No | 5000 psi | - | - | RFQ
|
 |
DP7450 OLP | Steel | - | 210°F | 0.475" | 1/4" | Yes | 300 psi | - | - | RFQ
|
 |
DP7600 OLP | Carbon Steel | - | 210°F | 3/5" | 3/8" | No | 500 psi | - | €562.20 | |
 |
DP7450 OHP | Steel | - | 210°F | 0.58" | 1/4" | Yes | 5000 psi | - | - | RFQ
|
