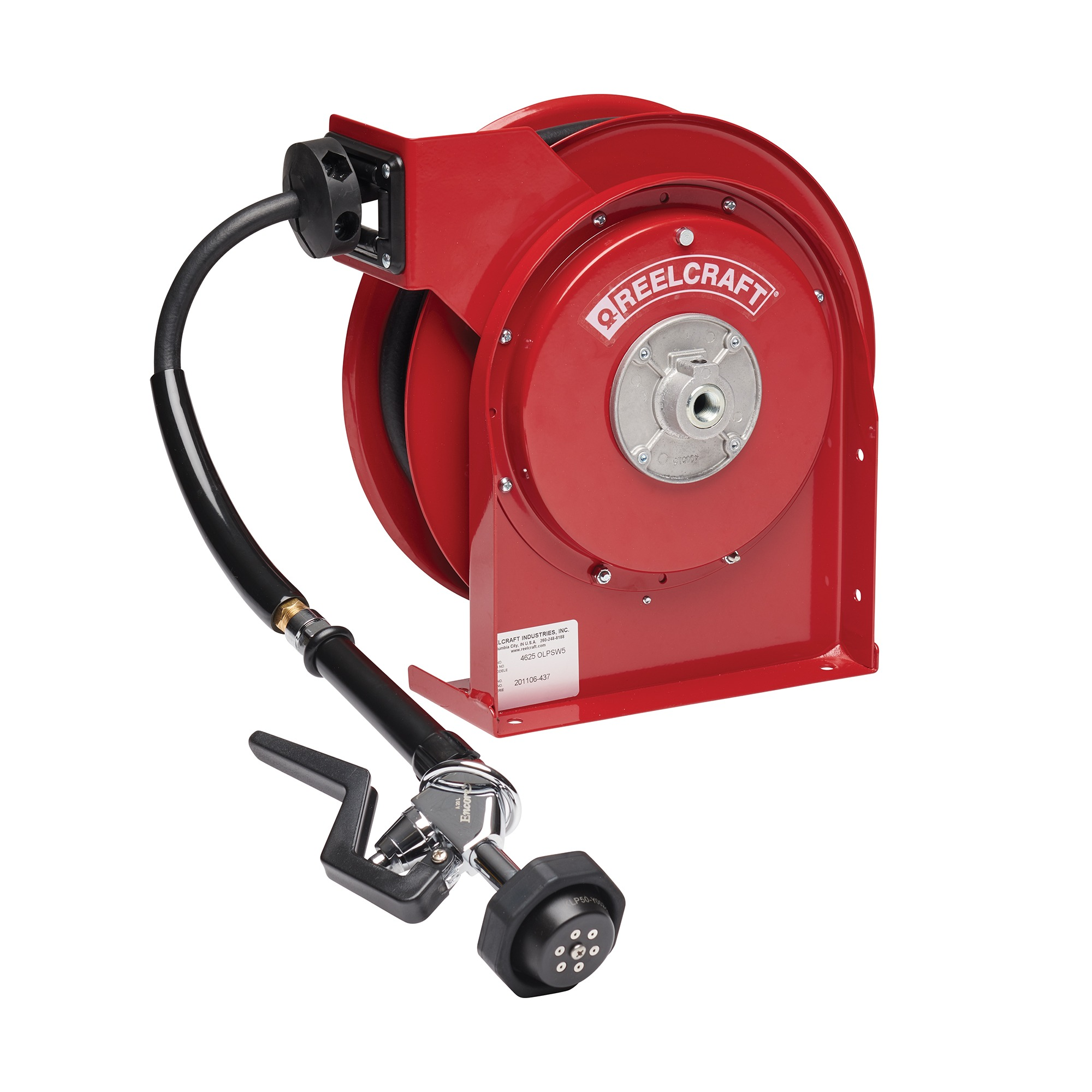

REELCRAFT 5635OLPSW5 Hose Reel 3/8 Inch 35 Feet Length 250 Psi 210f
35 ft.
3/8"
250 psi
Get it by Wednesday, Dec 24
10.00% off
€861.29 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hose Reel |
| Base Motion Type | Stationary |
| Bearing Construction | Permanently Lubricated |
| Bearing Type | Permanent Lubricated |
| Corrosion-resistant | Yes |
| Drive Type | Spring Return |
| Enclosed | No |
| Fasteners Included | No |
| Features | Full Flow Swivel, Latch Cam Is Designed For Reliable Quie |
| Fitting Size | 3/8" x 3/8" |
| Fitting Type | NPT x NPT |
| For Dual Hose | No |
| Height | 14 3/8" |
| Hose Capacity | 35 ft. |
| Hose Color | Black |
| Hose Cover Material | PVC |
| Hose End Configuration | 3/8" MNPT x 3/8" FNPT |
| Hose Ends | Nozzle |
| Hose Fitting A Gender | Male |
| Hose Fitting A Material | Brass |
| Hose Fitting A Size | 3/8" |
| Hose Fitting A Type | NPT |
| Hose Fitting B Gender | Female |
| Hose Fitting B Material | Brass |
| Hose Fitting B Size | 3/8" |
| Hose Fitting B Type | NPT |
| Hose Inside Dia. | 3/8" |
| Hose Length | 35 ft. |
| Hose Material | Synthetic Rubber |
| Hose Outlet | Nozzle |
| Hose Outlet (in.) | Nozzle |
| Hose Outside Dia. | 5/8" |
| Hose Reel Primary Application | Pre Rinse |
| Hose Reel Type | Ceiling, Floor, Vehicle, Wall Mount Hose Reel |
| Hose Tube Material | PVC |
| Includes | Lever Operated Spray Valve |
| Includes Hose | Yes |
| Includes Hose Stop | Yes |
| Includes Leader Hose | No |
| Latch Type | Spring Loaded |
| Length | 14 1/4" |
| Max. Pressure | 250 psi |
| Max. Temp. | 210°F |
| Maximum Operating Pressure | 125 psi |
| Maximum Operating Temperature | 180°F |
| Minimum Operating Temperature | 32°F |
| Mount Base Height | 11 19/32" |
| Mount Base Width | 4" |
| Mount Hole Diameter | 5/16" |
| Mounting | Ceiling, Floor, Wall |
| Mounting Hole Center To Center Height | 9 3/4" |
| Mounting Hole Center To Center Width | 2 1/2" |
| Number Of Guide Arms | 1 |
| Number Of Mount Holes | 4 |
| Overall Height | 14 3/8" |
| Overall Length | 14 1/4" |
| Overall Width | 6 1/8" |
| Pedestal Type | Single Pedestal |
| Product Datasheet | reelcraft-5635olpsw5.pdf |
| Reel Color | Red |
| Reel Diameter | 7" |
| Reel Finish | Powder Coated |
| Reel Material | Carbon Steel |
| Reel Width | 6 1/8" |
| Seal Material | Buna N |
| Speed Limited Retraction | No |
| Spiral Hose Guard | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1/4" |
| Swivel Inlet Thread Size | 1/4"-18 |
| Swivel Inlet Type | NPT |
| Swivel Material | Brass |
| Swivel Outlet Gender | Male |
| Swivel Outlet Size | 1/4" |
| Swivel Outlet Thread Size | 1/4"-18 |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
| Weight | 27 lbs. |
| Width | 6 1/8" |
Shipping Info:
| Ship weight (kg) | 12.56 |
| Ship height (cm) | 43.18 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 17.53 |
| HS code | 3917390050 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Mounting | Swivel Material | Hose Included | Hose Capacity | Reel Material | Fitting Size | Max. Temp. | Hose Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A5835OMP | Ceiling, Truck, Floor, Wall | Nickel Plated Steel | - | 35 ft. | Carbon Steel | 1/2" x 1/2" | 210°F | 3/4" | €1,226.95 | |
 |
5400OLP | Ceiling, Floor, Wall | Brass | - | 50 ft. | Steel | - | 150°F | - | €612.66 | |
 |
5450ELP | Ceiling, Floor, Wall | Brass | - | 25 ft. | Carbon Steel | 1/4" x 1/4" | 150°F | 1/2" | €765.24 | |
 |

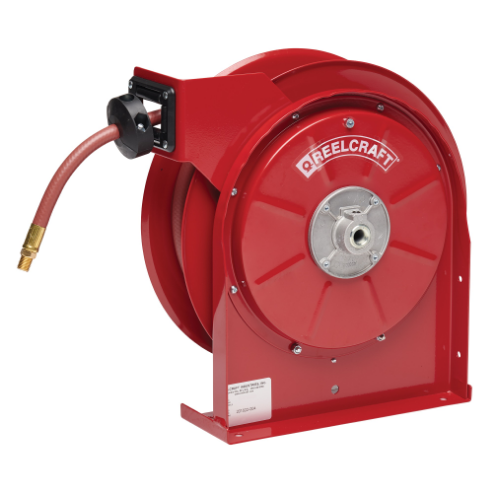

A5825 OLP | Ceiling, Floor, Wall | Steel | Yes | - | - | - | 150°F | 3/4" | €646.96 | |
|
5635 OLP | Ceiling, Floor, Wall | Brass | Yes | 35 ft. | Carbon Steel | 1/4" x 1/4" | 150°F | 5/8" | €607.11 | |
|
5450 OLP | Ceiling, Floor, Wall | Brass | Yes | 50 ft. | Carbon Steel | 1/4" x 1/4" | 150°F | 1/2" | €608.72 | |
 |
5635 ELP | Ceiling, Floor, Wall | Brass, Copper | - | - | - | - | 150°F | 3/5" | - | RFQ
|
