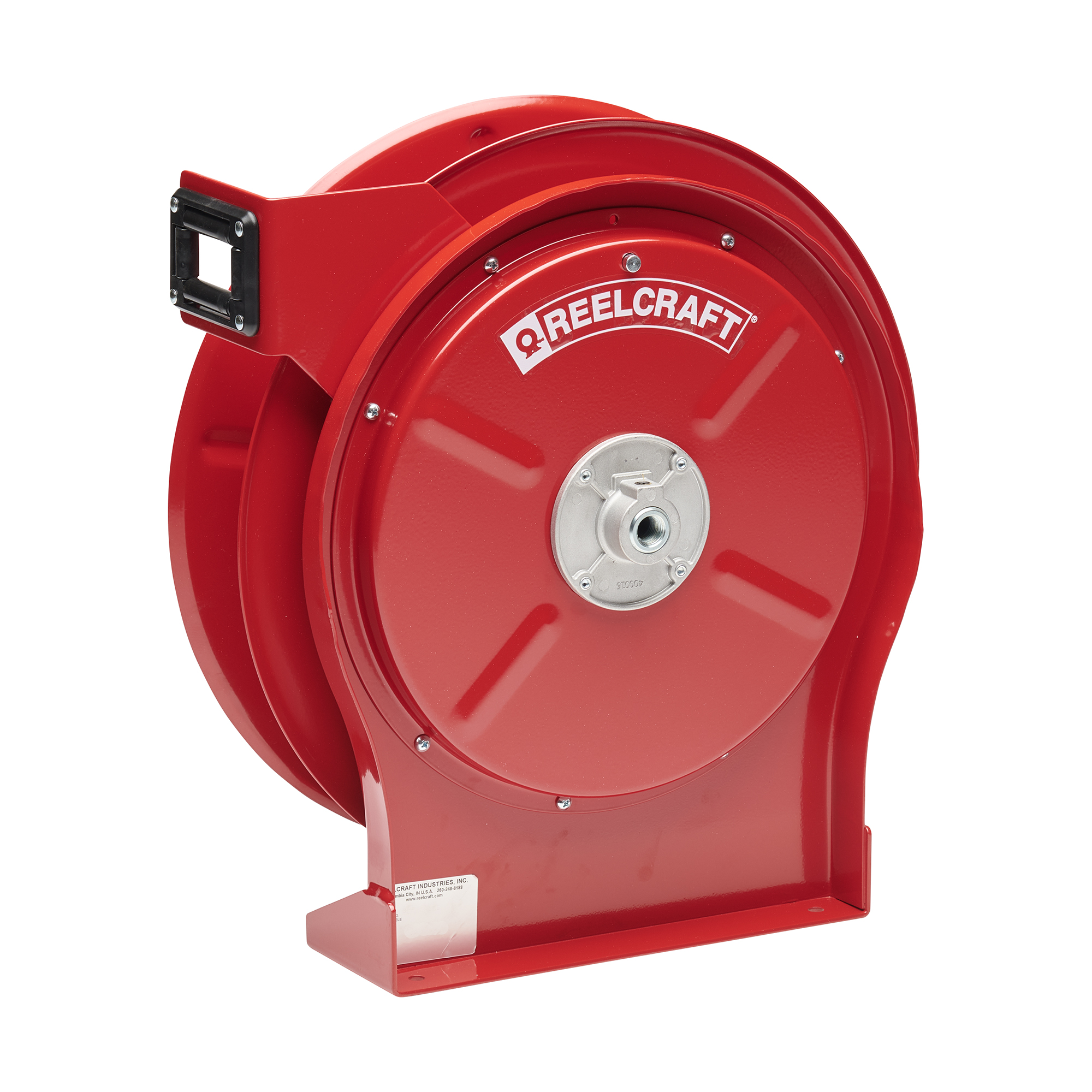

REELCRAFT 5605OLP Hose Reel, Inner Diameter 3/8 Inch, 500 Psi, Hose Length 50 Feet
50 ft.
3/8"
500 psi
Get it by Wednesday, Dec 24
10.00% off
€615.02 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hose Reel |
| Base Motion Type | Stationary |
| Bearing Construction | Permanently Lubricated |
| Bearing Type | Permanent Lubricated |
| Corrosion-resistant | Yes |
| Drive Type | Spring Return |
| Duty Rating | Industrial |
| Enclosed | No |
| Fasteners Included | No |
| Features | Heavy Duty |
| Finish | Powder Coated |
| For Dual Hose | No |
| Height | 17 5/8" |
| Hose Capacity | 50 ft. |
| Hose Inside Dia. | 3/8" |
| Hose Length | 50 ft. |
| Hose Outlet | 1/4" |
| Hose Outlet (in.) | 1/4" |
| Hose Reel Primary Application | Air, Water |
| Hose Reel Type | Free Standing Hose Reel, Vehicle, Wall Mount Hose Reel |
| Includes Hose | No |
| Includes Leader Hose | No |
| Latch Type | Spring Loaded |
| Length | 16 3/4" |
| Max. Pressure | 500 psi |
| Max. Temp. | 150°F |
| Maximum Operating Pressure | 500 psi |
| Maximum Operating Temperature | 210°F |
| Minimum Operating Temperature | -40°F |
| Mount Base Height | 11 5/8" |
| Mount Base Width | 4" |
| Mount Hole Diameter | 5/16" |
| Mounting | Ceiling, Floor, Wall |
| Mounting Hole Center To Center Height | 9 3/4" |
| Mounting Hole Center To Center Width | 2 1/2" |
| Number Of Guide Arms | 1 |
| Number Of Mount Holes | 4 |
| Overall Height | 17 5/8" |
| Overall Length | 16 3/4" |
| Overall Width | 5 7/8" |
| Pedestal Type | Single Pedestal |
| Product Datasheet | reelcraft-5400olp.pdf |
| Reel Color | Red |
| Reel Diameter | 7" |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Width | 5 7/8" |
| Seal Material | Buna N |
| Speed Limited Retraction | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 3/8" |
| Swivel Inlet Thread Size | 3/8"-18 |
| Swivel Inlet Type | NPT |
| Swivel Material | Brass |
| Swivel Material | Zinc Dichromate/Copper/Brass |
| Swivel Outlet Gender | Female |
| Swivel Outlet Size | 1/4" |
| Swivel Outlet Thread Size | 1/4"-18 |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
| Weight | 31 lbs. |
| Width | 5 7/8" |
Shipping Info:
| Ship weight (kg) | 13.59 |
| Ship height (cm) | 39.37 |
| Ship length (cm) | 34.29 |
| Ship width (cm) | 25.4 |
| HS code | 8479899899 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Swivel Material | Hose Capacity | Reel Material | Hose Included | Fitting Size | Fitting Gender | Max. Temp. | Hose Inside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5650OLPSMR | Brass | 50 ft. | Carbon Steel | - | 1/4" x 1/4" | Male x Male | 150°F | 3/8" | €867.66 | |
 |
5650 OLP | Steel | 50 ft. | Steel | Yes | 1/4" x 1/4" | Male x Male | 150°F | 3/8" | €647.24 | |
 |
A5850 OLP | Brass | 50 ft. | Carbon Steel | Yes | 1/2" x 1/2" | Male x Male | 150°F | 1/2" | €745.91 | |
 |
B5835 OLP | Steel | - | - | - | - | - | 150°F | 1/2" | - | RFQ
|
 |
B5850 OLP | Steel | - | - | - | - | - | 150°F | 1/2" | - | RFQ
|
 |
B5835 OMP | Steel | - | - | - | - | - | 210°F | 1/2" | - | RFQ
|
 |
5435 OHP | Steel | - | - | - | - | - | 210°F | 1/4" | - | RFQ
|
