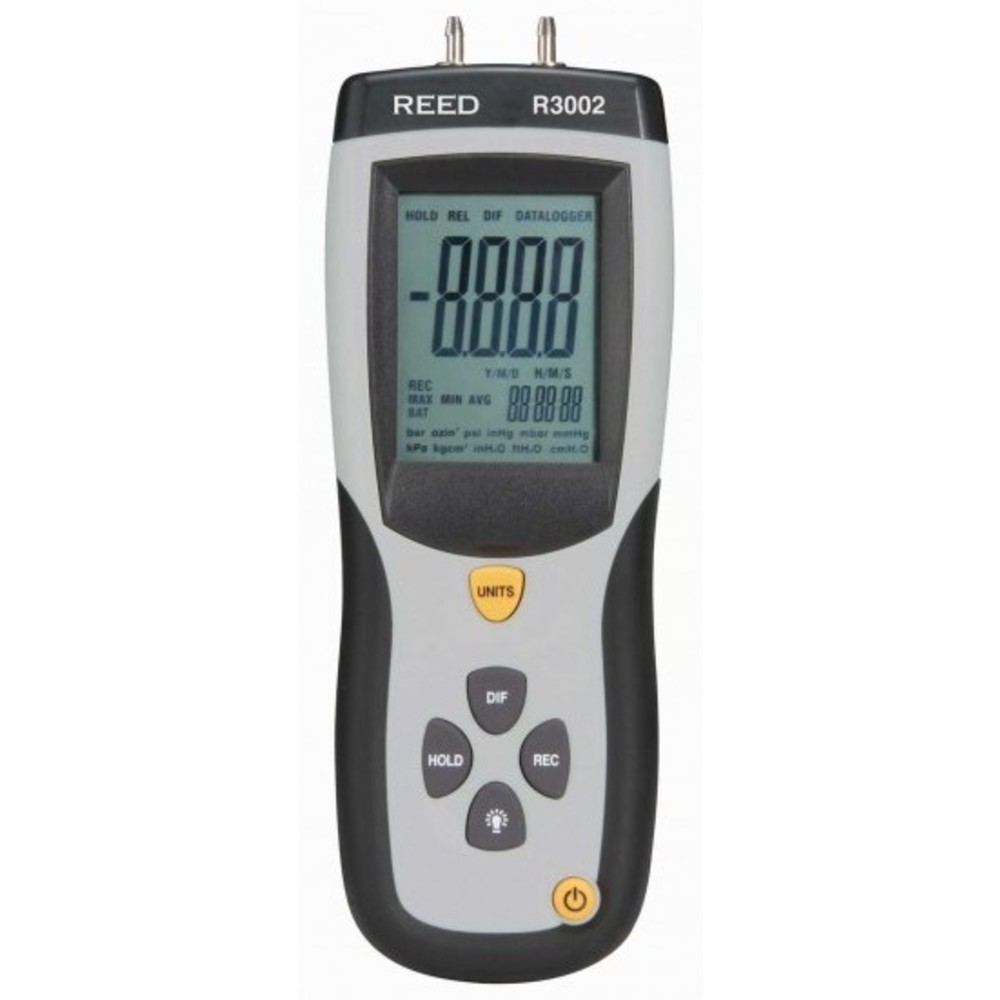

REED INSTRUMENTS R3002 Digital Manometer, Differential Gauge, 5psi
Item: CD4DLEModel: R3002Cross Ref: 161C15
7 In Stock
Ships within 2 days via
10.00% off
€328.38 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Digital Manometer |
| Accuracy | -0.3% to +0.3% |
| Auto Power Off | Yes |
| Average | Yes |
| Backlit Display | Yes |
| Batteries Required | Yes |
| Battery Voltage | 9V |
| Calibration Certificate | No |
| Calibration Certificate Included | No |
| Data Hold | Yes |
| Datalogging Capabilities | Yes |
| Differential Pressure | Yes |
| Dimensions | 8.2" x 2.9" x 1.9" |
| Display Size | 4 Digit |
| Display Type | LCD |
| For Use With | Hard Carrying Case, Tripod |
| Housing Height | 8 1/5" |
| Housing Length | 2.9" |
| Internal Memory | Yes |
| Low-battery Indicator | Yes |
| Max. Function | Yes |
| Max. Operating Pressure | 5 psi |
| Max. Pressure | 20 psi |
| Max./min. Functions | Yes |
| Min. Function | Yes |
| Min/max Capture | Yes |
| Nist Traceable Certificate | No |
| Number Of Connections | 4 |
| Operating Humidity | 10% to 80% |
| Operating Temp. | 32°F to 122°F |
| Over Range Indicator | Yes |
| Pc Connectivity | USB Cable |
| Pressure Linearity/hysteresis | -0.29% to +0.29% |
| Pressure Measuring Ranges | 5 psi, 138.3 In. H2O, 344.7 Mbar, 34.47 Kpa, 10.18 In. Hg, 258.5 Mm Hg, 80 Oz./Sq. In., 11.53 Ft. H2O, 351.5 Cm H2O, 0.351 Kg/Sq. Cm, 0.344 Bar |
| Pressure Range | -5 psi to +5 psi |
| Pressure Repeatability | -0.2% to +0.2% |
| Pressure Resolution | 0.001 psi |
| Pressure Type | Differential, Gauge |
| Process Connection Type | Hose Barb |
| Real-time Clock And Date Stamp | Yes |
| Response Time | 2 Times/sec. |
| Software | Yes |
| Software Os Compatability | Windows XP, 7, 8, 10, 11 |
| Storage Temp. | 14°F to 140°F |
| Tripod Mountable | Yes |
| Type | General Purpose Digital Manometer |
| Under Range Indicator | Yes |
| Zero Function | Yes |
Shipping Info:
| Ship weight (kg) | 1.71 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
Product Variants
| Product | Model | Max. Pressure | Auto Power Off | Display Type | Number Of Connections | Housing Height | Housing Length | Accuracy | Battery Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
R3002-NIST | - | - | - | - | - | - | - | - | €395.60 | |
 |

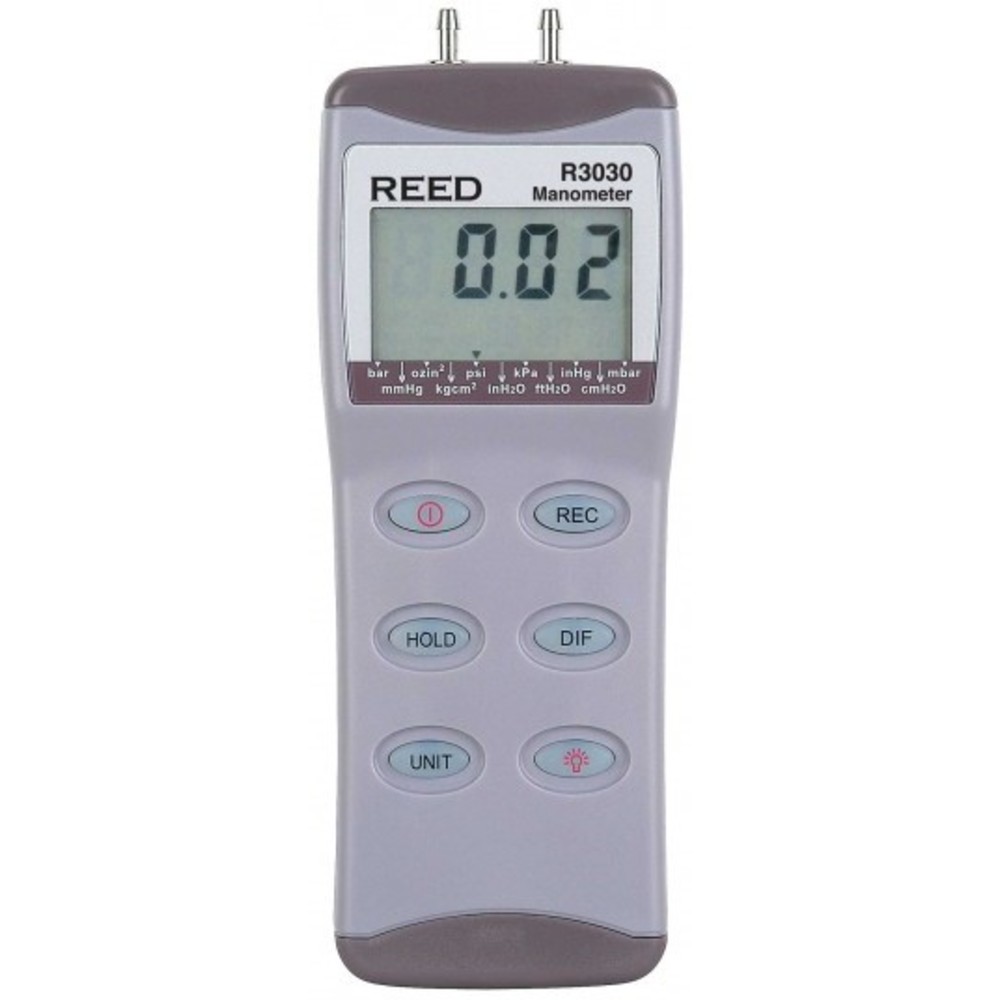

R3030 | 60 psi | Yes After 20 min./Off | Dual Lcd | 2 | 7.2" | 2.8" | - | 9V | €437.67 | |
|
R3030-NIST | - | - | - | - | - | - | - | - | €449.06 | |
 |

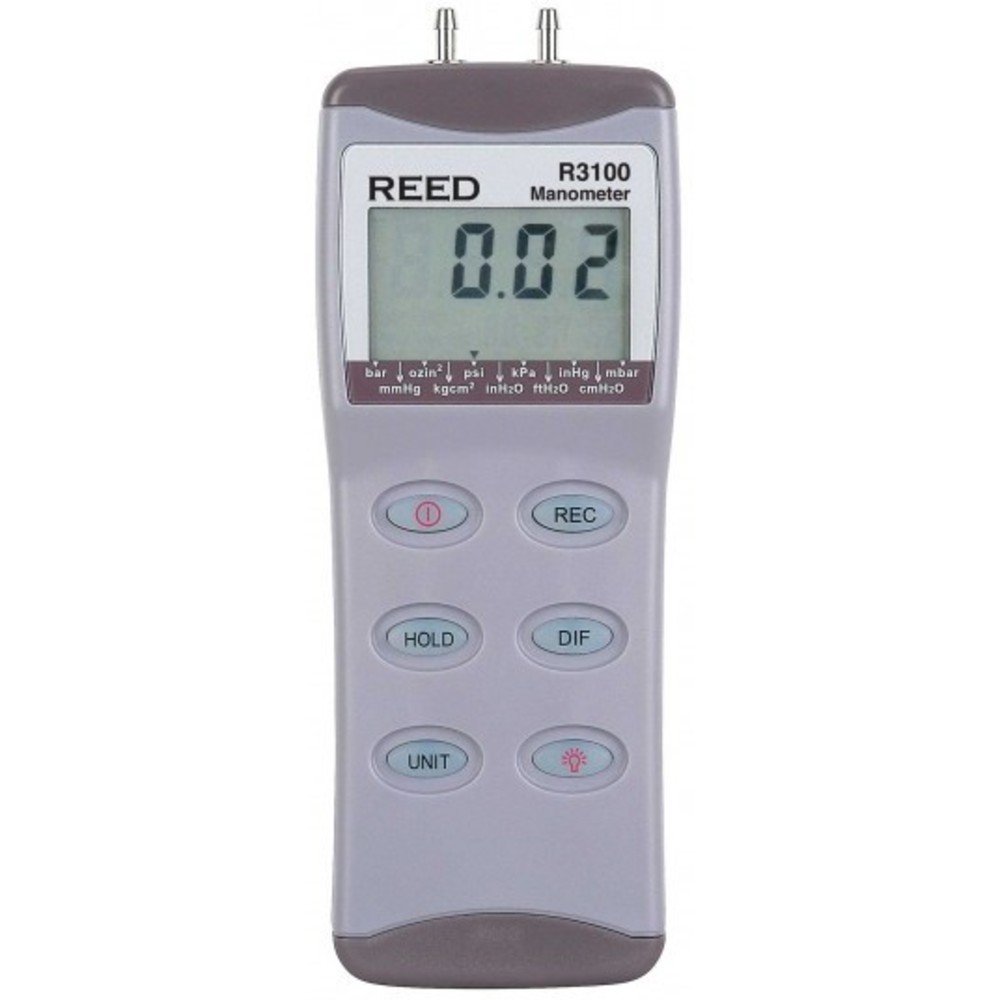

R3100 | 150 psi | Yes After 20 min./Off | Dual Lcd | - | - | - | - | - | €571.75 | |
|
R3100-NIST | - | - | - | - | - | - | - | - | €498.96 |
