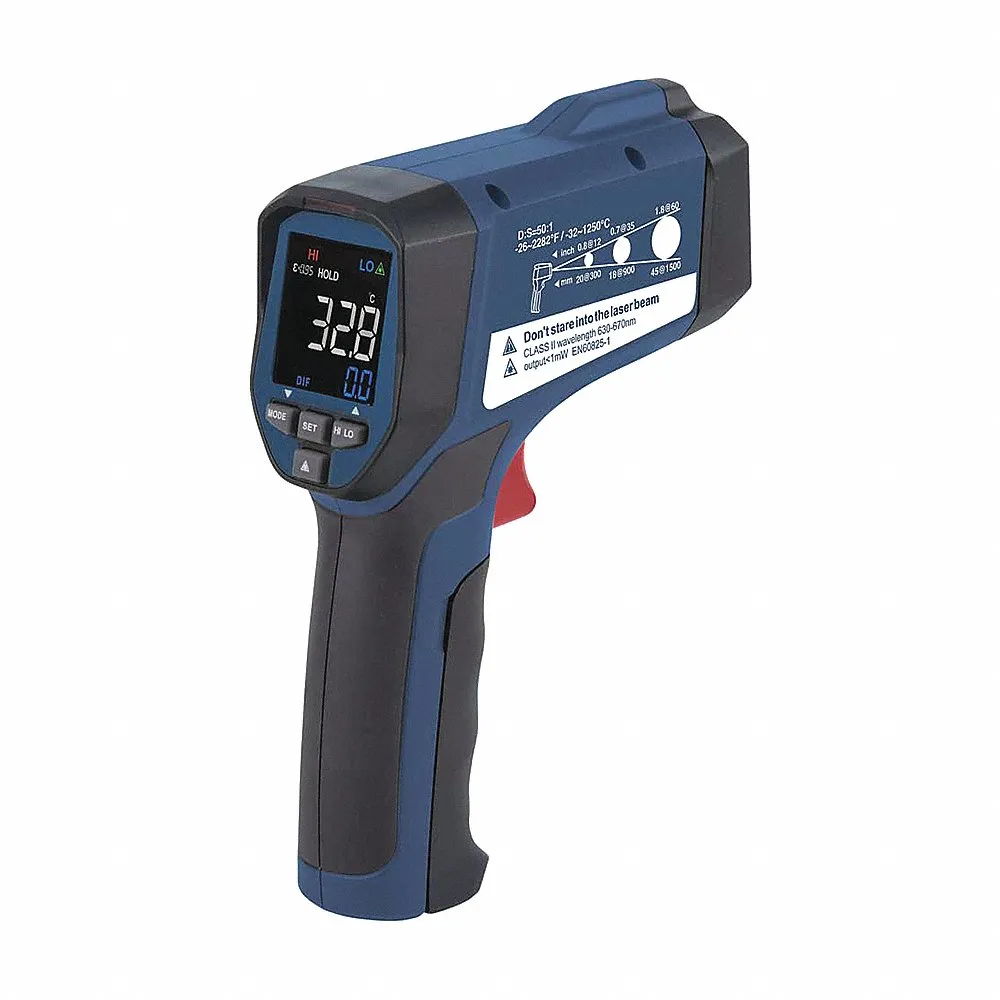

REED INSTRUMENTS R2330 Infrared Thermometer, Professional, 50:1, -32/1250 Deg. C
Item: CD7AAXModel: R2330Cross Ref: 328YL9
7 In Stock
Ships within 2 days via
10.00% off
€391.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Infrared Thermometer |
| Accuracy °f | +/-1.8% Of Reading Or +/-3.6° Whichever Is Greater (Above 32°), +/-1.8% Of Reading Or +/-3.6° Whichever Is Greater (Basic), +/-3.6° +/0.1° (Below 32°) |
| Alarm Indicators | LED |
| Alert Type | Audible, Visual |
| Auto Power Off | Yes |
| Average And Differential | Yes |
| Backlit Display | Yes |
| Batteries Required | Yes |
| Battery Included | Yes |
| Battery Life | 10 hrs. |
| Battery Run Time | 10 hrs. |
| Battery Size | 9V |
| Battery Voltage | 9V |
| Body Style | Full Size |
| Calibration Certificate | Not Certified |
| Calibration Certification_combined | Not Certified R2330 |
| Data Logging | No |
| Data Storage | Yes |
| Datalogging Capabilities | No |
| Digital Display Screen Type | LCD With Backlight |
| Dimensions | 7" x 4.98" x 2" |
| Display | Bright Color |
| Display Hold | Yes |
| Display Type | Bright Color |
| Distance To Spot Ratio | 501 |
| Dual Laser | Yes |
| Emissivity | 0.1 to 1 |
| Emissivity | Digitally adjustable |
| Emissivity Adjustability | 0.1 to 1 Adjustable |
| F/c Switchable | Yes |
| Features | Dual Lasers Assist With Target Area Identification And Allow For Precise Temperature Measurements To Meet The Needs Of Industrial, Electrical And Hvac/R Professionals |
| Field Of View | Not Applicable |
| High/low Alarms | Yes, Audible, Visual |
| Includes | Carrying Case |
| Includes Work Light | No |
| Internal Memory | Yes |
| Intrinsic Safety | Not Specified Intrinsically Safe |
| Laser Class | Class II |
| Laser Optimization Distance | 5.2 ft. |
| Laser Sighting Type | Dual |
| Low Battery Indicator | Yes |
| Manufacturer Warranty Length | 1 yr. |
| Max. Emissivity | 1 |
| Max. Emissivity Setting | 1 |
| Max. Operating Altitude | 6561 ft. |
| Max. Operating Temperature °f | 122°F |
| Max. Storage Altitude | 39370 ft. |
| Max. Temperature Measured | Over 1202°F |
| Max./min. Functions | Yes |
| Maximum Temperature Measured °c | 1250°C |
| Maximum Temperature Measured °f | 2282°F |
| Min. Emissivity | 0.1 |
| Min. Temp. Measured | -26° |
| Minimum Emissivity Setting | 0.10 |
| Minimum Operating Temperature °f | 32°F |
| Minimum Temperature Measured °c | -32°C |
| Minimum Temperature Measured °f | -26°F |
| Mounting Style | Tripod |
| Number Of Batteries Required | 1 |
| Operating Humidity | 10% to 90% |
| Operating Temp. | 32°F to 122°F |
| Operating Temp. Range | 32°F to 122°F |
| Optical Resolution (ds) | 50:1 |
| Repeatability | 0.8°C, 0.8% |
| Resolution | 0.1°F |
| Resolution °c | 0.1°C |
| Resolution °f | 0.1°F |
| Response Time | 250 ms |
| Spectral Response | 8 µm to 14 µm |
| Storage Temp. | -4°F to +140°F |
| Temp. Alarm - Thermometer | High, Low, Normal |
| Temp. Alerts | High Temperature, Low Temperature |
| Temp. Measured Range | -26°F to +2282°F |
| Temp. Range | -26° to +2282° |
| Testing Functions | Average, Difference, Maximum Temperature, Minimum Temperature |
| Trigger | Yes |
| Tripod Mountable | Yes |
Shipping Info:
| Ship weight (kg) | 0.54 |
| Country of Origin | CN |
Product Variants
| Product | Model | Response Time | Display Type | Operating Temp. | Dimensions | Temp. Range | Trigger | Indicator | Emissivity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

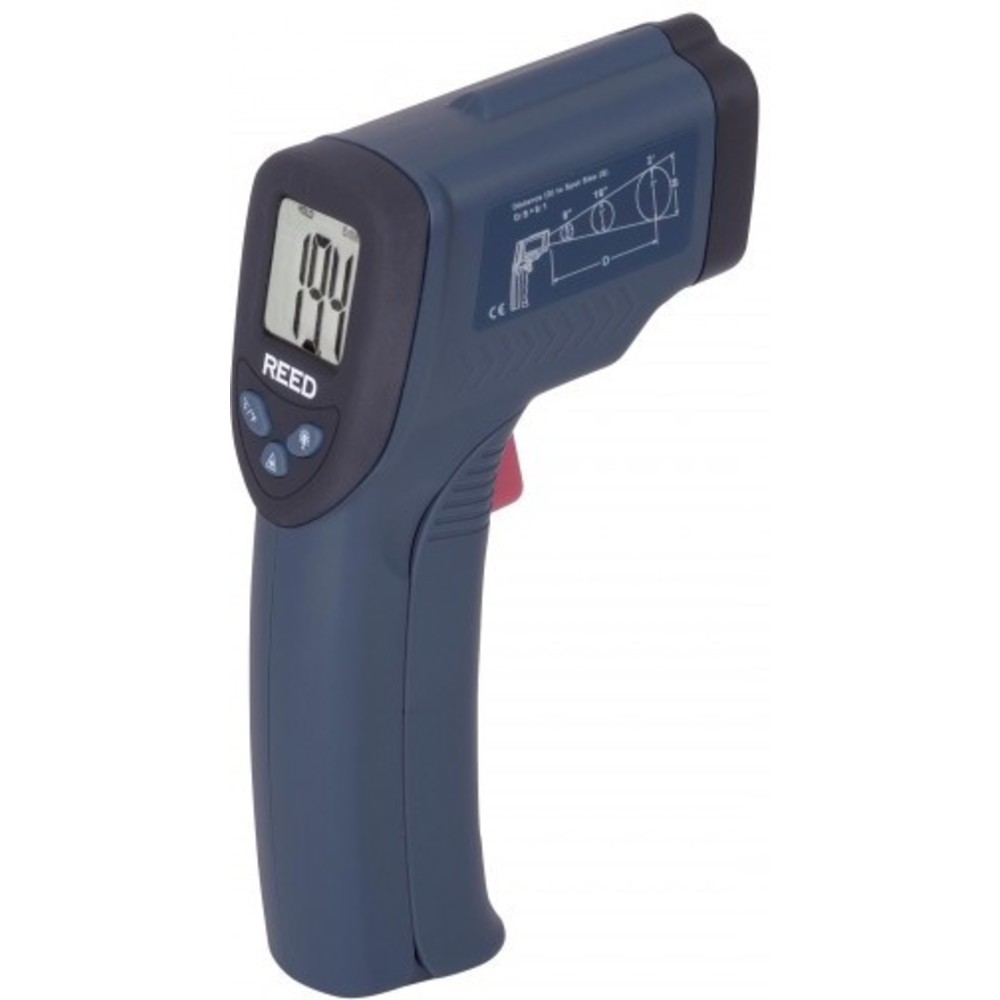

R2001-NIST | - | - | - | - | - | - | - | - | - | RFQ
|
 |

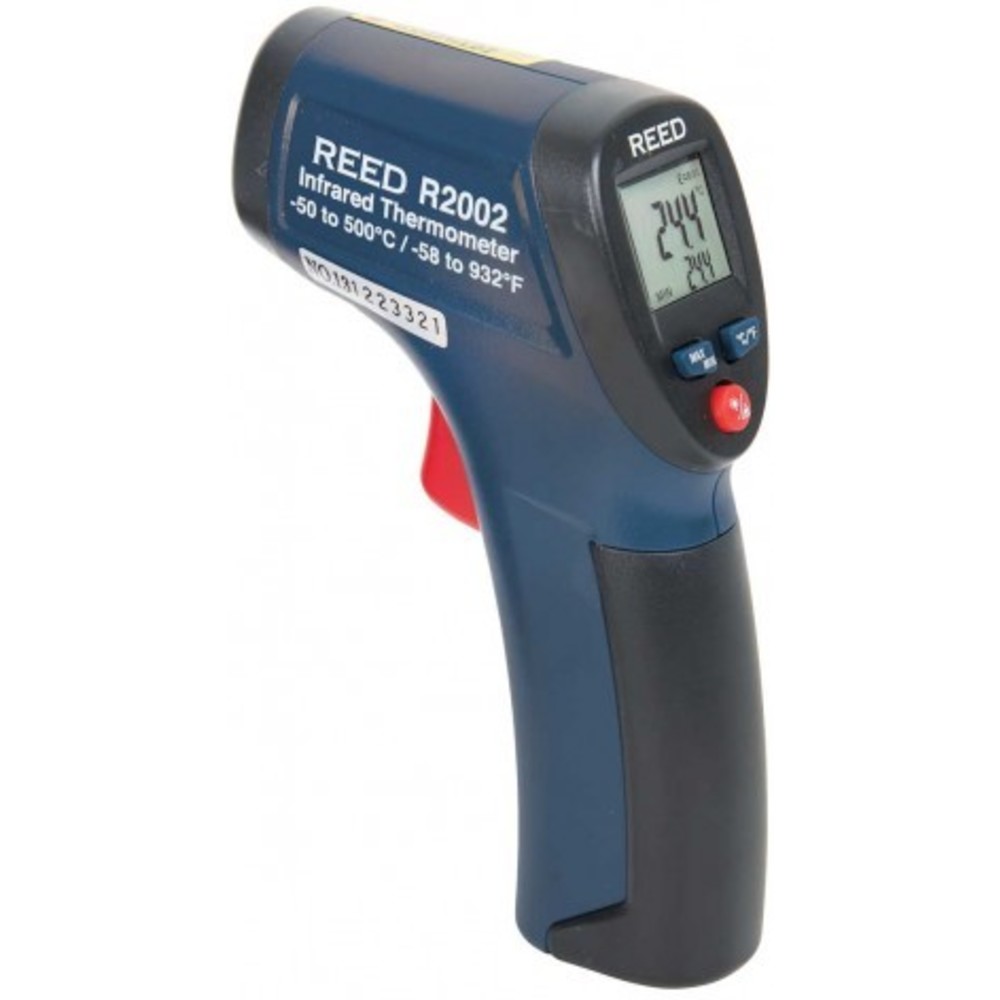

R2002-NIST | - | - | - | - | - | - | - | - | - | RFQ
|
 |

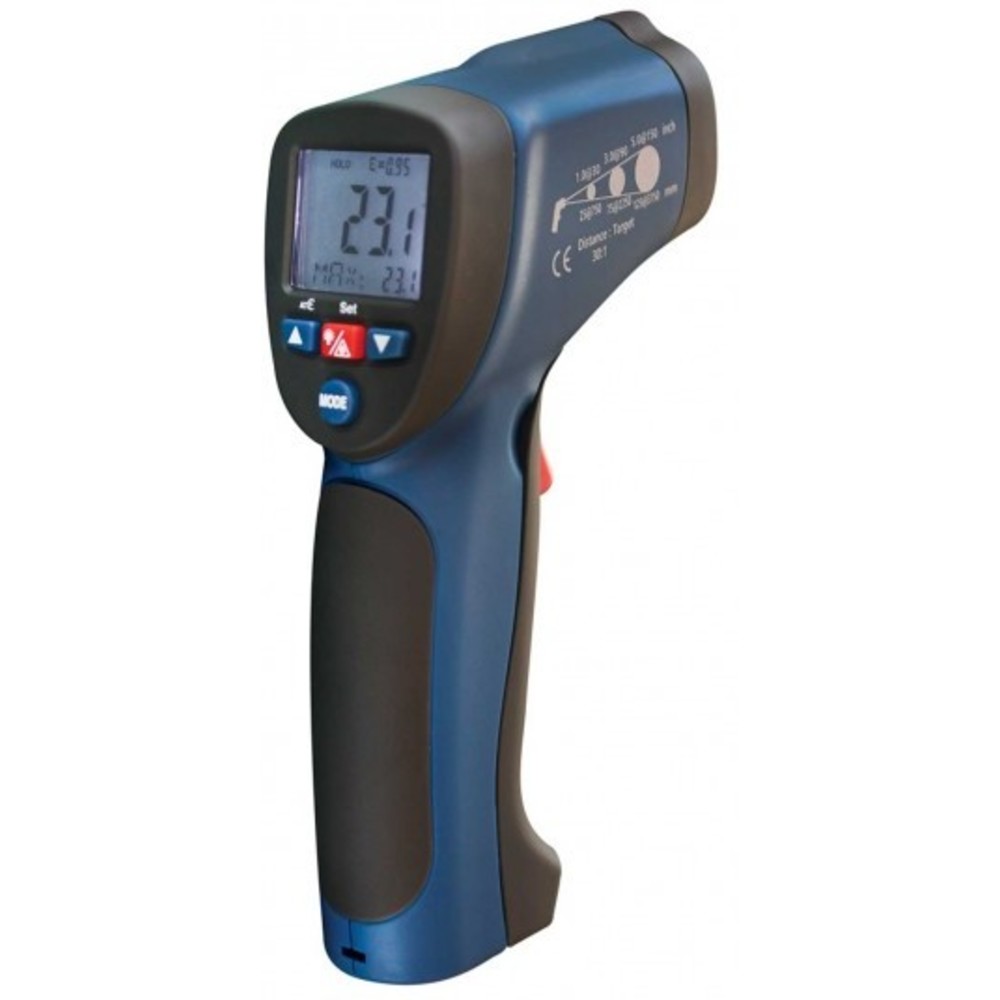

R2005-NIST | - | - | - | - | - | - | - | - | - | RFQ
|
 |
R2020 | 150 ms | Tft Lcd Display | 32°F to 122°F | 8.1" x 2.4" x 6.1" | - | - | - | - | - | RFQ
|
|
R2020-NIST | - | - | - | - | - | - | - | - | - | RFQ
|
 |
R2300 | 500 ms | Backlit | +32°F to +104°F | 6" x 4.3" x 1.6" | -25.6°F to +752°F | - | Yes Beeping | 0.1 to 1 | €91.63 | |
 |

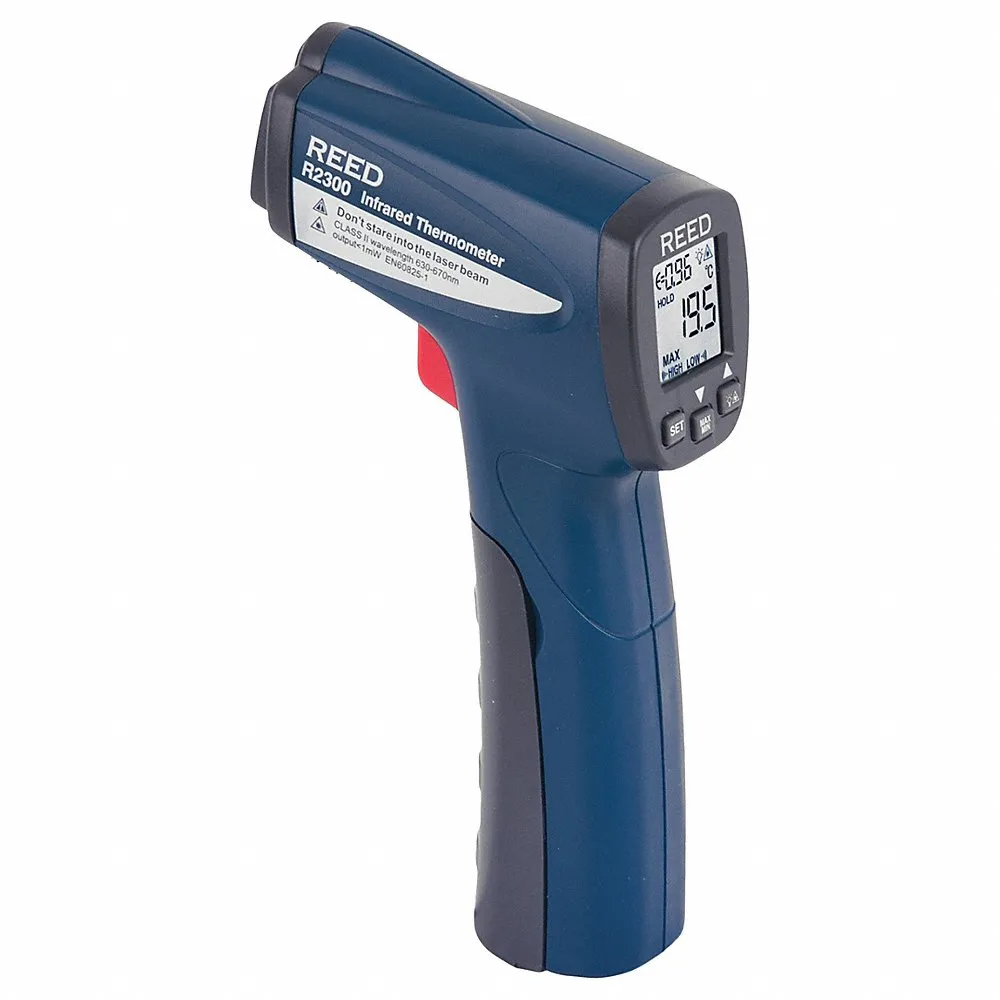

R2300-NIST | 500 ms | - | - | - | - | - | - | 0.1 to 1 | €329.23 |
