RED HAT EV8316G381V24/DCDD Solenoid Valve 3/2 1/4 Inch Nc 24v 316 Stainless Steel
Item: AB7ZRDModel: EV8316G381V24/DCDDCross Ref: 24W660
7 In Stock
Ships within 2 days via
€1,176.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve |
| Application | Controlling Air, Inert Gas, Liquids |
| Body Material | Stainless Steel |
| Center Line Pipe Center Size | 2.812" |
| Class | Class F |
| Coefficient Of Volume | 1.5 |
| Coil Enclosure | Explosion Proof And Watertight |
| Coil Insulation Class | F |
| Electrical Connections | 1/2" Conduit W/18" Leads |
| For Media | Air, Inert Gases |
| Grade | Grade 316 |
| Included Coil | Yes |
| Included Seals | Yes |
| Inlet Connection Type | NPTF |
| Max. Fluid Temp. | 130°F |
| Max. Operating Pressure Differential Air/inert Gas | 130 psi |
| Max. Operating Pressure Differential Light Oil | Not Rated |
| Max. Operating Pressure Differential Steam | Not Rated |
| Max. Operating Pressure Differential Water | Not Rated |
| Media Type | Air, Inert Gas |
| Min. Operating Pressure Differential | 0 psi |
| Nema Rating | NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 7, NEMA 9 |
| Nominal Pipe Size | 1/4" |
| Operating Environment | Hazardous, Indoor, Outdoor |
| Operation | Direct Acting |
| Operation Type | Direct Acting |
| Orifice Dia. | 0.312" , 5/16" |
| Outlet Connection Type | NPTF |
| Overall Height | 5 11/16" |
| Overall Length | 2 1/8" |
| Overall Width | 3 5/16" |
| Pipe Size | 1/4" |
| Seal Material | FKM |
| Valve Configuration | Normally Closed |
| Valve Positions | 2 Position |
| Valve Type | High Flow |
| Valve Ways | 3-Way |
| Valve Ways And Positions | 3 Ways And 2 Positions |
| Voltage | 24V DC |
| Watts | 0.55 W |
Shipping Info:
| Ship weight (kg) | 1.67 |
| Ship height (cm) | 16 |
| Ship length (cm) | 29.46 |
| Ship width (cm) | 14.22 |
| HS code | 8481809005 |
| Country of Origin | MX |
Product Variants
| Product | Model | Overall Height | Voltage | Overall Width | Orifice Dia. | Max. Operating Pressure Differential Air/inert Gas | Max. Operating Pressure Differential Water | Max. Operating Pressure Differential Light Oil | Watts | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

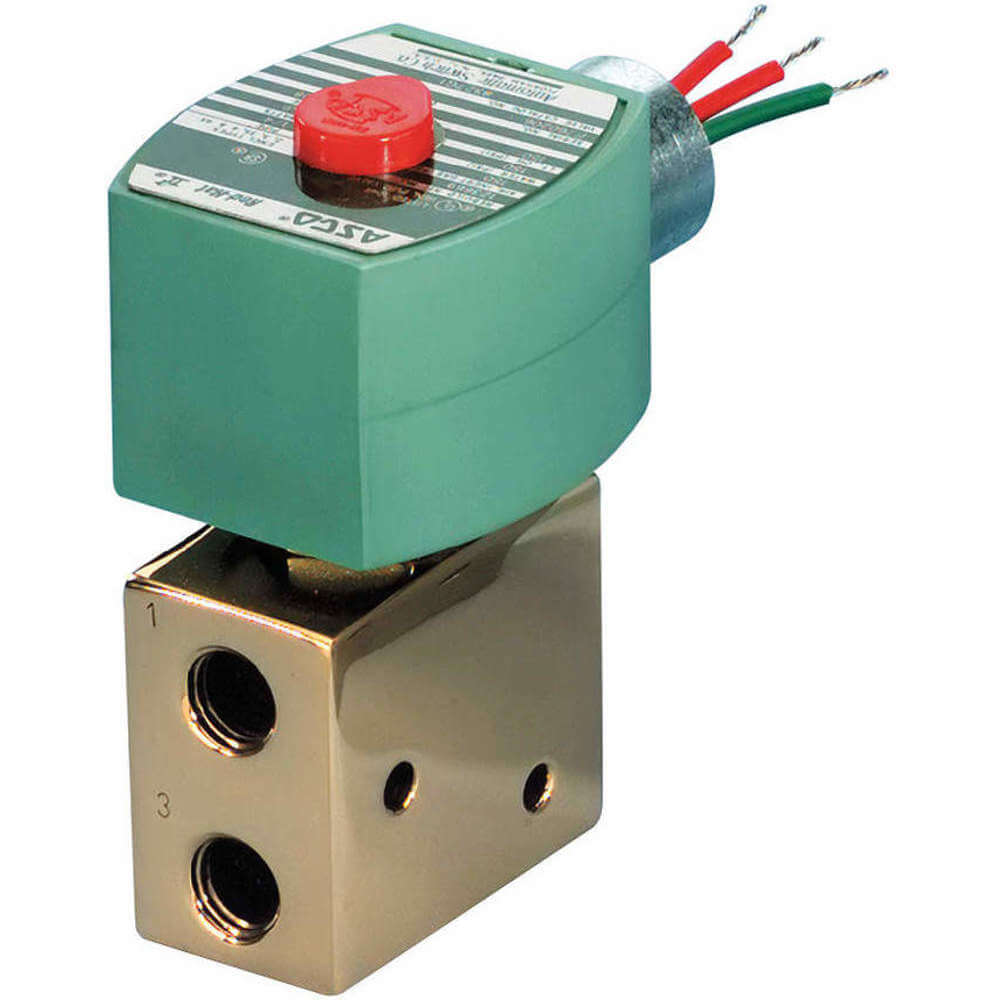

EV8327G04224/DCDD | 3 15/16" | 24V DC | 1 3/16" | 1/4" | 150 psi | 150 psi | 150 psi | 11.6 W | €924.40 | |
 |

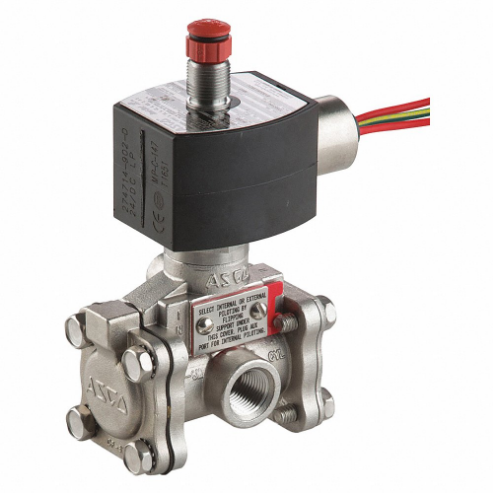

EV8316G382V24/DCDD | 5 1/2" | 24V DC | 2 1/8" | 0.312" | 130 psi | Not Rated | Not Rated | 0.55 W | €1,311.44 | |
 |

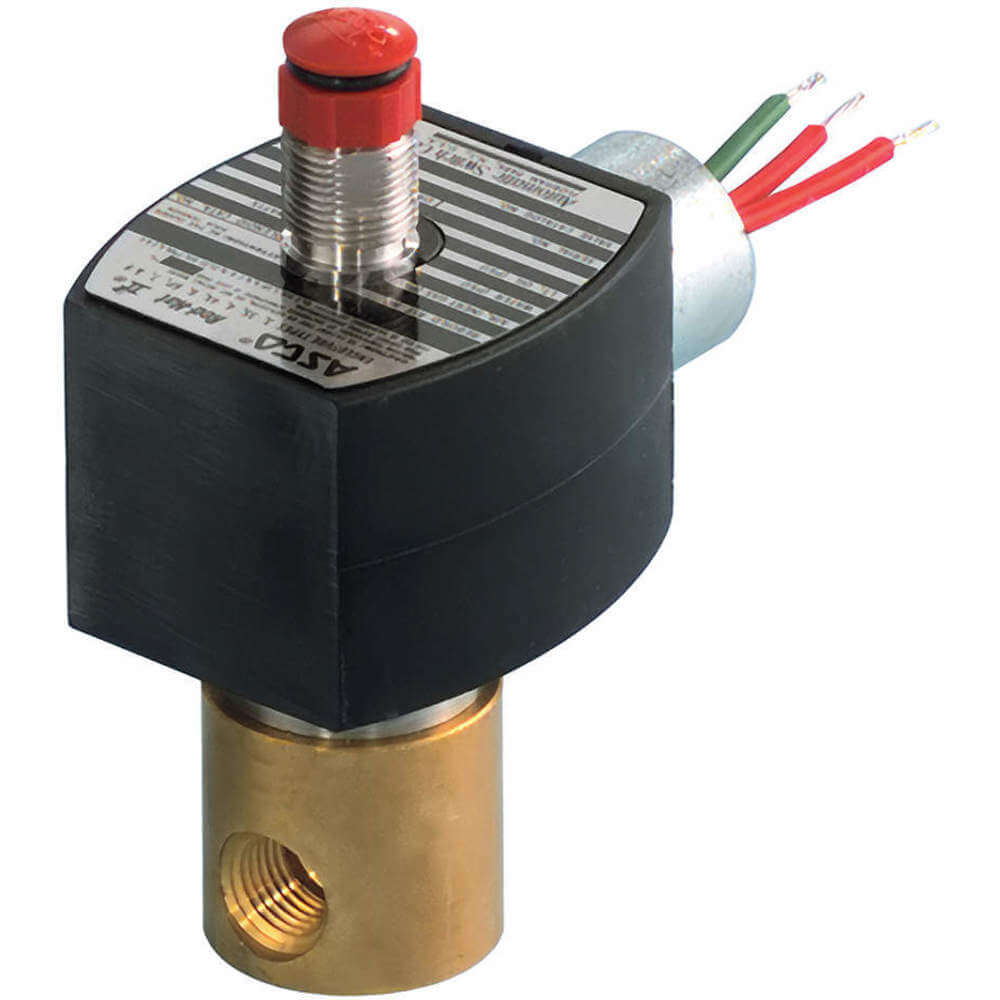

EV8314G30124/DCDD | 3 13/16" | 24V DC | 1 5/16" | 1/16" | 150 psi | Not Rated | Not Rated | 1.4 W | €535.13 | |
|
EV8327G042120/50-60DA | 3 15/16" | 120V AC | 1 3/16" | 1/4" | 150 psi | 150 psi | 150 psi | 12 W | €1,229.45 | |
|
EV8316G384V24/DCDD | 6" | 24V DC | 3 1/2" | 5/8" | 130 psi | Not Rated | Not Rated | 0.55 W | €1,284.08 |
