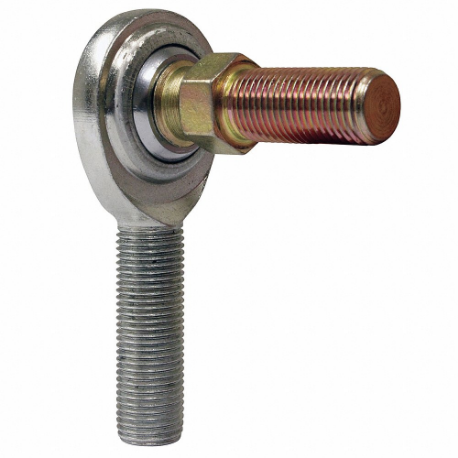

QA1 MCML6S Spherical Rod End, Male Studded, 6 mm Bore Dia, Left Hand Thread, 6.25 mm Head Wd
Item: CT8HTEModel: MCML6SCross Ref: 39N468
7 In Stock
Ships within 2 days via
10.00% off
€18.45 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rod End |
| Application | Light Duty |
| Ball Dia. | 12.7 mm |
| Ball Material Grade | Grade 52100 |
| Ball Stud Center Length | 29.76 mm |
| Ball Stud Material | Carbon Steel |
| Ball Stud Thread Direction | Left Hand |
| Ball Stud Thread Length | 11 mm |
| Ball Stud Thread Size | M6 x 1 |
| Bore Dia. | 6 mm |
| Bore Diameter Tolerance | -0.012" to 0.065" |
| Dimension B | 10 mm |
| Dimension C | 14 mm |
| Dimension E | 19 mm |
| Dimension G | 36 mm |
| Dimension H | 22 mm |
| Dimension J | 45.5 mm |
| Dimension N | 9 mm |
| Head Outside Diameter | 19 mm |
| Head Width | 6.25 mm |
| Housing | Low Carbon |
| Housing Material | Carbon Steel |
| Housing Material Finish | Chrome Plated |
| Inner Ring Width | 9 mm |
| Max. Angular Misalignment | 23° |
| Max. Ball Swivel | 23° |
| Overall Length | 45.5 mm |
| Resistance Properties | Corrosion Resistant |
| Rod End Type | Spherical Rod End |
| Shank Thread Direction | Left Hand |
| Shank Thread Gender | Male |
| Shank Thread Length | 22 mm |
| Shank Thread Size | M6 x 1 |
| Static Radial Load | 7296N |
| Static Radial Load Capacity | 7296N |
| Stud Length | 14 mm |
| Stud Material | Carbon Steel |
| System Of Measurement | Metric |
| Thread | Left Hand |
| Type | Male Studded |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
